Lippert Triple Axle Suspension Kit � 2.375" Axle Tube, 33" Spacing, 2,000-lb (25-1/4" Unloaded) Leaf Springs, Standard Equalizers, Hangers & Hardware � Dexter/Alko/Rockwell Compatible

Lippert Triple Axle Suspension Kit – 2.375" Axle Tube, 33" Spacing, 2,000-lb (25-1/4" Unloaded) Springs

Upgrade your triple axle trailer with this complete suspension kit from Lippert. Designed for precise 2.375" axle tubes and 33" axle spacing, this bundle includes 2,000-lb leaf springs (25-1/4" unloaded eye-to-eye), standard equalizers, hangers, and all the necessary mounting hardware. Whether you rely on Dexter, Alko, Lippert, Rockwell, or other quality axles, these exact-match components help ensure a smooth, dependable ride for every journey.

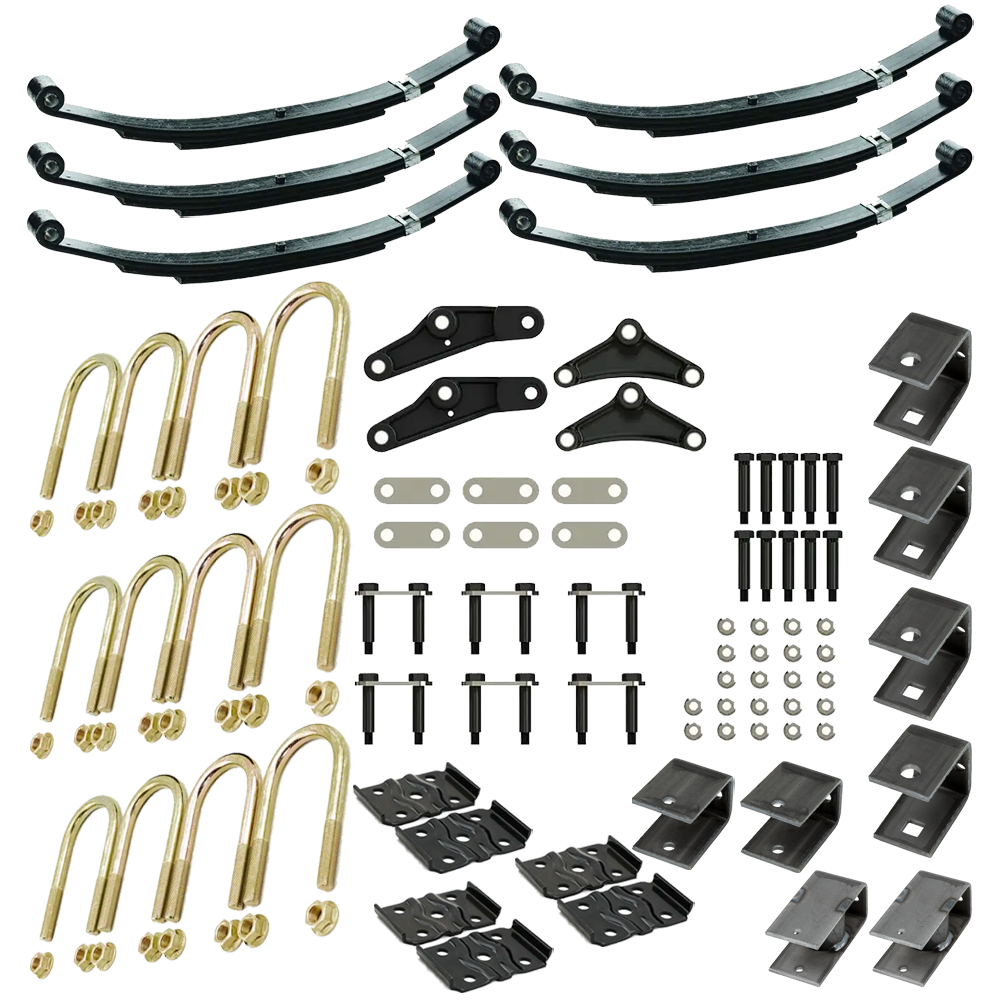

Bundle Contents:

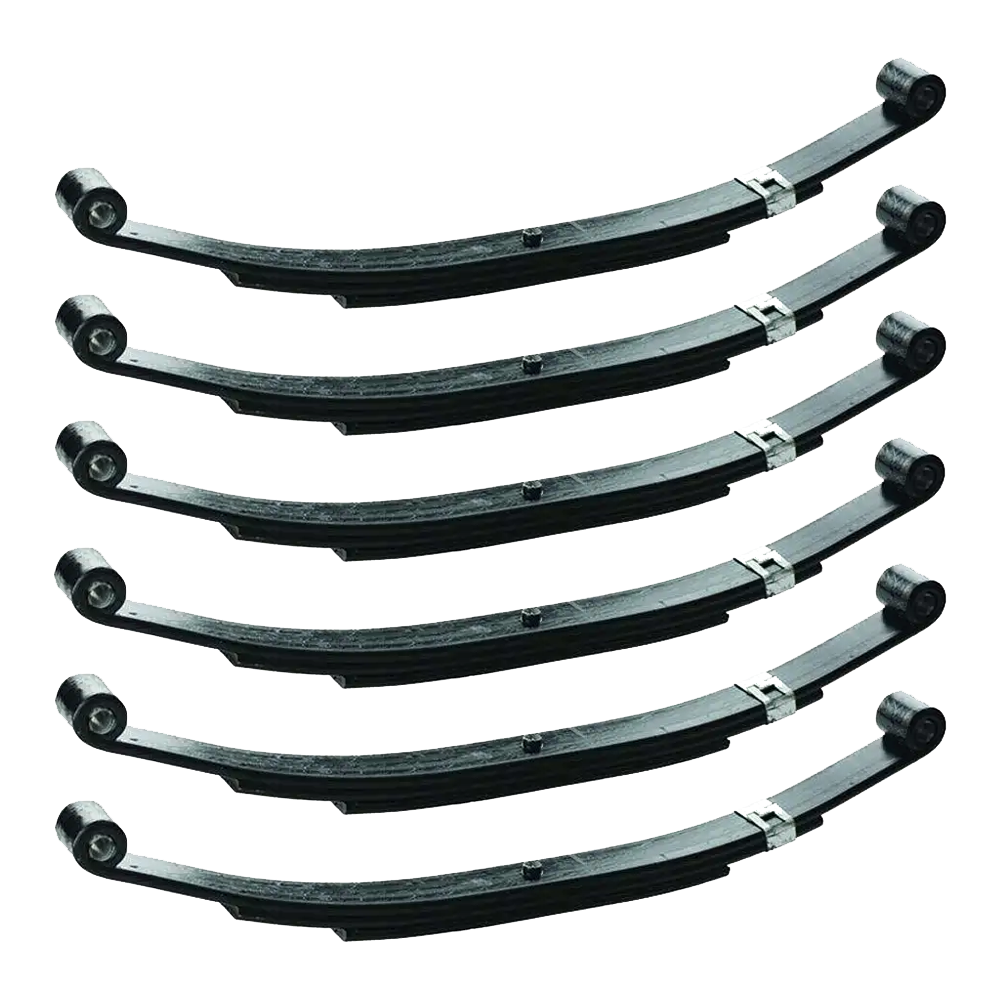

• QTY (6): Replacement Double-Eye Leaf Spring, 2,000-lb Capacity, 25-1/4" Unloaded
  • Replacement leaf spring for RV or trailer suspension
  • Spring width: 1-3/4"
  • Unloaded eye-to-eye length: 25-1/4"; loaded length: 26"
  • Arch height unloaded: 3"; arch height loaded: 1-3/4"
  • Spring eye diameter: 9/16"
  • Dexter Compatible Part Number: 072-024-00

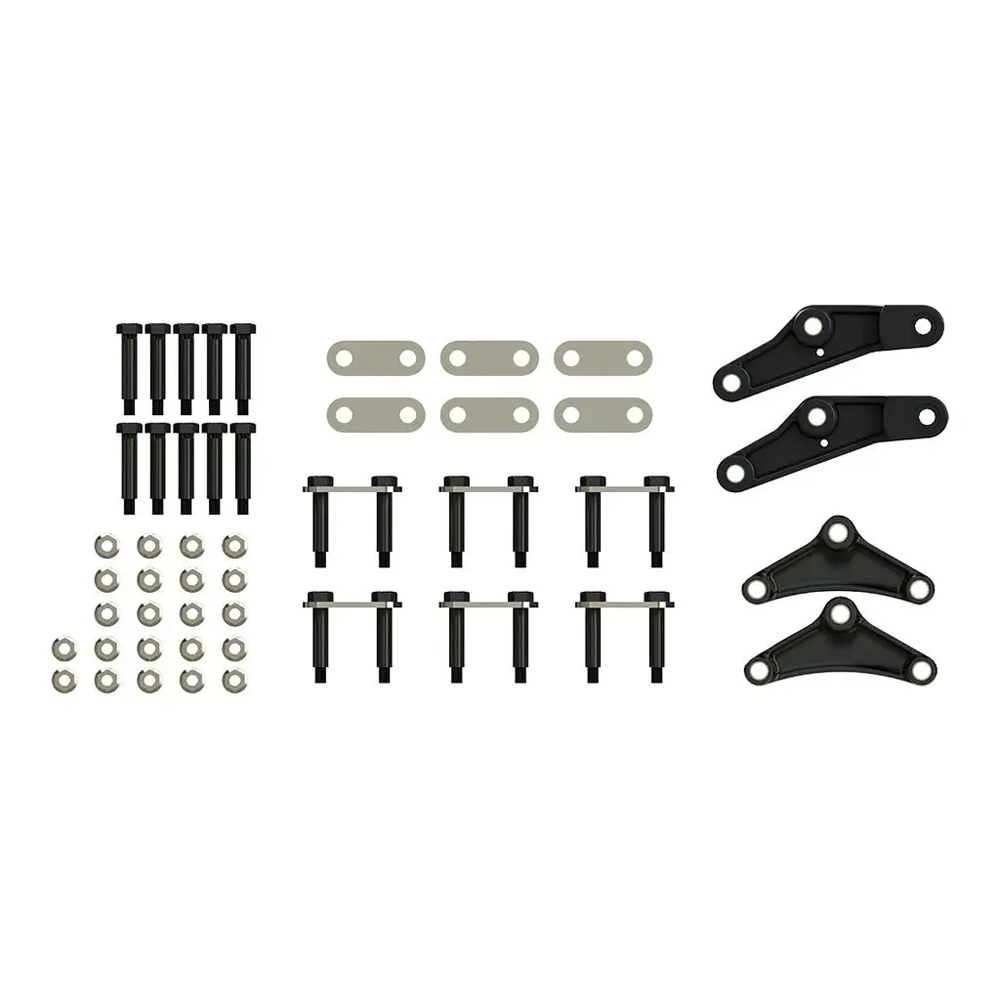

• QTY (1): Triple Axle AP Kit with Standard Equalizer and Standard Bolts
  • Replacement triple axle AP kit
  • Standard equalizers and bolts
  • Kit includes shackle links, mounting hardware, and equalizers
  • Dexter Compatible Part Number: A/P-335-00

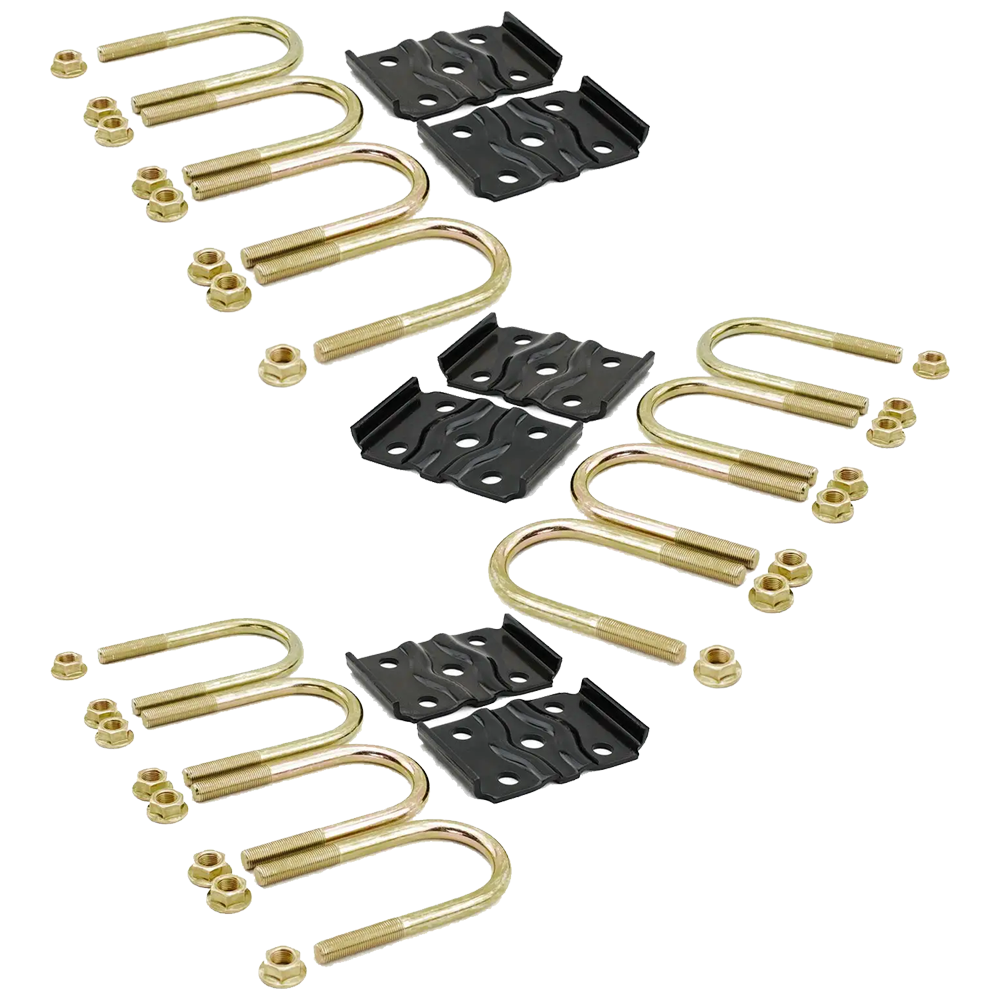

• QTY (3): Lippert Axle Mounting Kit – 2.375" Tube
  • Replacement axle mounting kit
  • U-bolt design for secure fit
  • Exact-match for 2.375" axle tubes
  • Please confirm original hardware before purchasing
• QTY (2): Front Trailer Axle Hanger – 4-5/16" x 2-3/16", 2,200-8,000-lb Rating
  • Welded to chassis for mounting of axles
  • Length: 4-5/16", Width: 2-3/16"
  • Distance to hole: 3-9/16" on-center, Hole size: 9/16"
  • Axle capacity: 2,200 lbs
  • Dexter Compatible Part Number: 028-001-00
• QTY (4): Center Trailer Axle Hanger – 4-1/2" x 3-1/8", 2,200-8,000-lb Rating
  • Location: Center hanger
  • Length: 4-1/2", Width: 3-1/8"
  • To hole: 3-5/16", Hole size: 7/8"
  • Axle capacity: 2,200 - 8,000 lbs
  • Dexter Compatible Part Number: 029-001-00
• QTY (2): Rear Trailer Axle Hanger – 6" x 2-1/4", 2,200-8,000-lb Rating
  • Location: Rear hanger
  • Length: 6", Width: 2-1/4"
  • To hole: 4", Hole size: 5/16"
  • Axle capacity: 2,200 - 8,000 lbs
  • Dexter Compatible Part Number: 030-028-00

Always verify your trailer’s original equipment specs, and remember to perform routine maintenance on all suspension components for optimal performance and safety.
