Lippert Triple Axle Suspension Kit � 2.375" Axle Tube, 33" Spacing, 2,200 lb Leaf Springs (25-1/4" Unloaded), Standard Equalizer, Hangers & Hardware � Dexter/Alko/Rockwell Compatible

Lippert Triple Axle Suspension Kit – 2.375" Tube, 33" Spacing, 2,200 lb (25-1/4" Unloaded) Leaf Springs

This Lippert triple axle suspension kit is engineered to optimize your trailer’s performance. Featuring 2.375" axle tube diameter, 33" axle spacing, leaf springs rated at 2,200 lbs each (25-1/4" unloaded eye-to-eye length), a standard equalizer, plus hangers and hardware — all in one convenient package. Compatible with Dexter, Alko, Rockwell, and other quality axle systems.

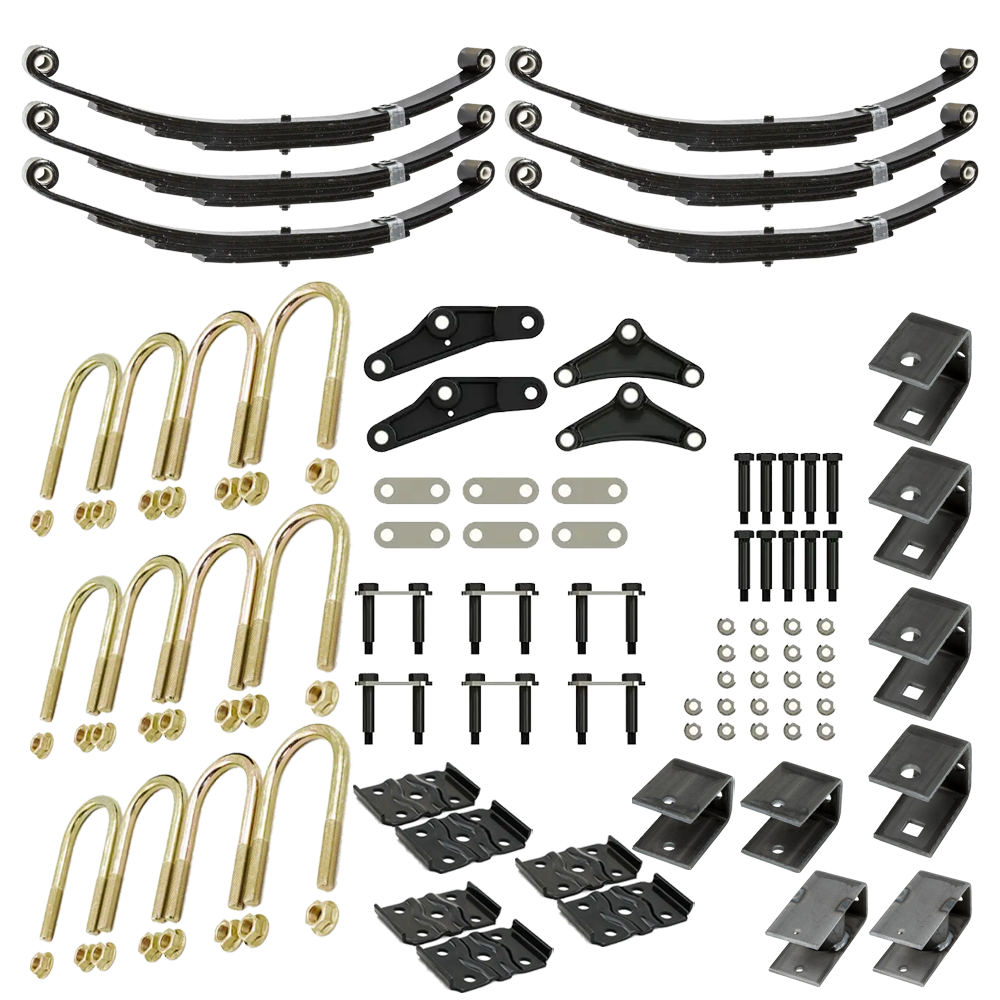

Bundle Contents:

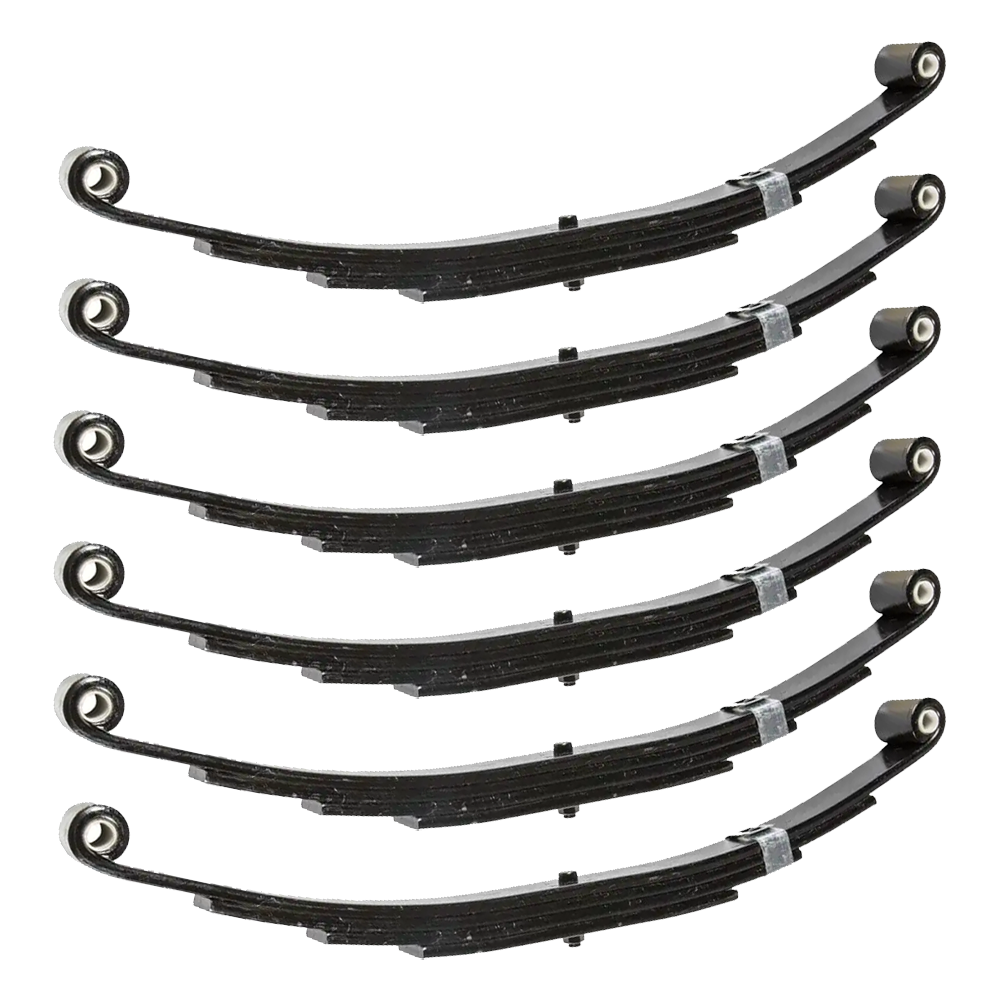

• QTY (6): Replacement Leaf Spring – 2,200 lb Capacity, 25-1/4" Unloaded
  • Spring capacity: 2,200 lbs
  • 4 leaves, 1-3/4" width
  • Unloaded eye-to-eye length: 25-1/4"
  • Loaded length: 26"; arch height loaded: 2"
  • Eye diameter: 9/16"
  • Dexter Compatible Part Number: 072-078-00

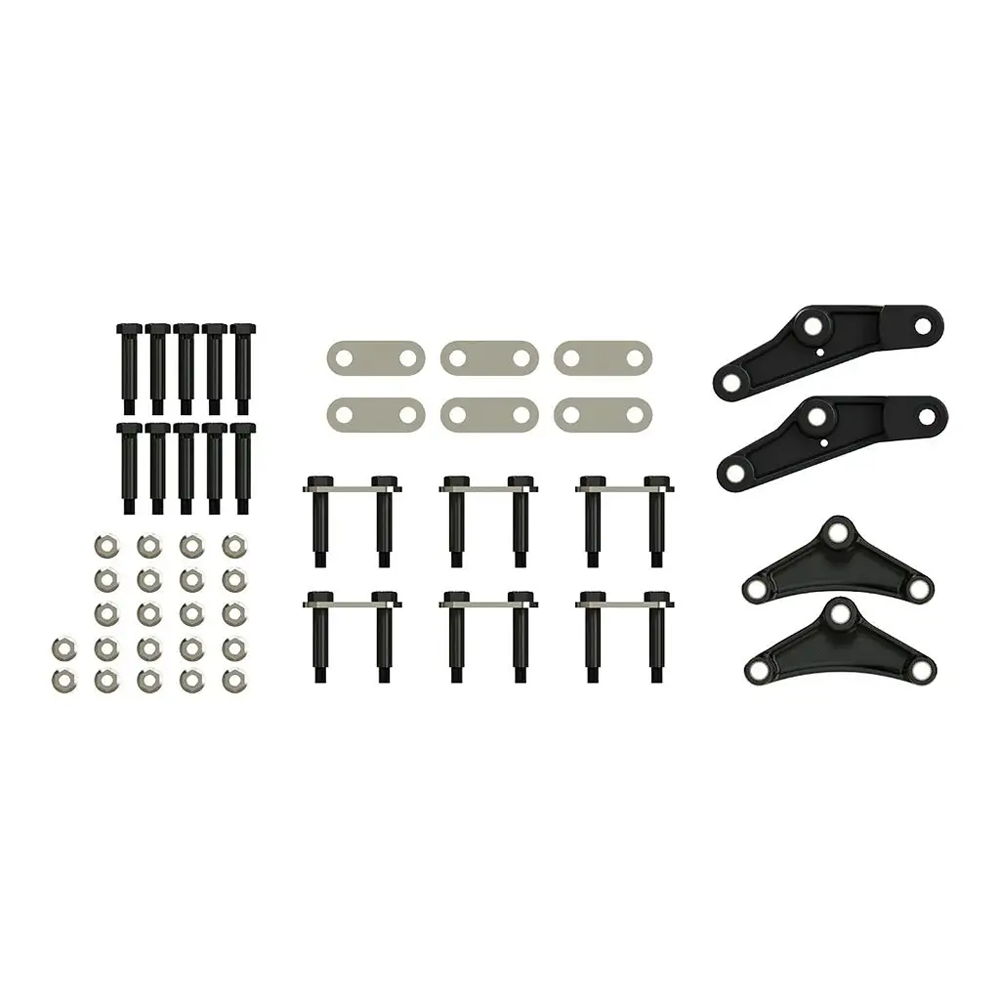

• QTY (1): Triple Axle AP Kit with Standard Equalizer and Standard Bolts
  • Replacement triple axle AP kit
  • Includes shackle links, mounting hardware, standard equalizers and bolts
  • Dexter Compatible Part Number: A/P-335-00

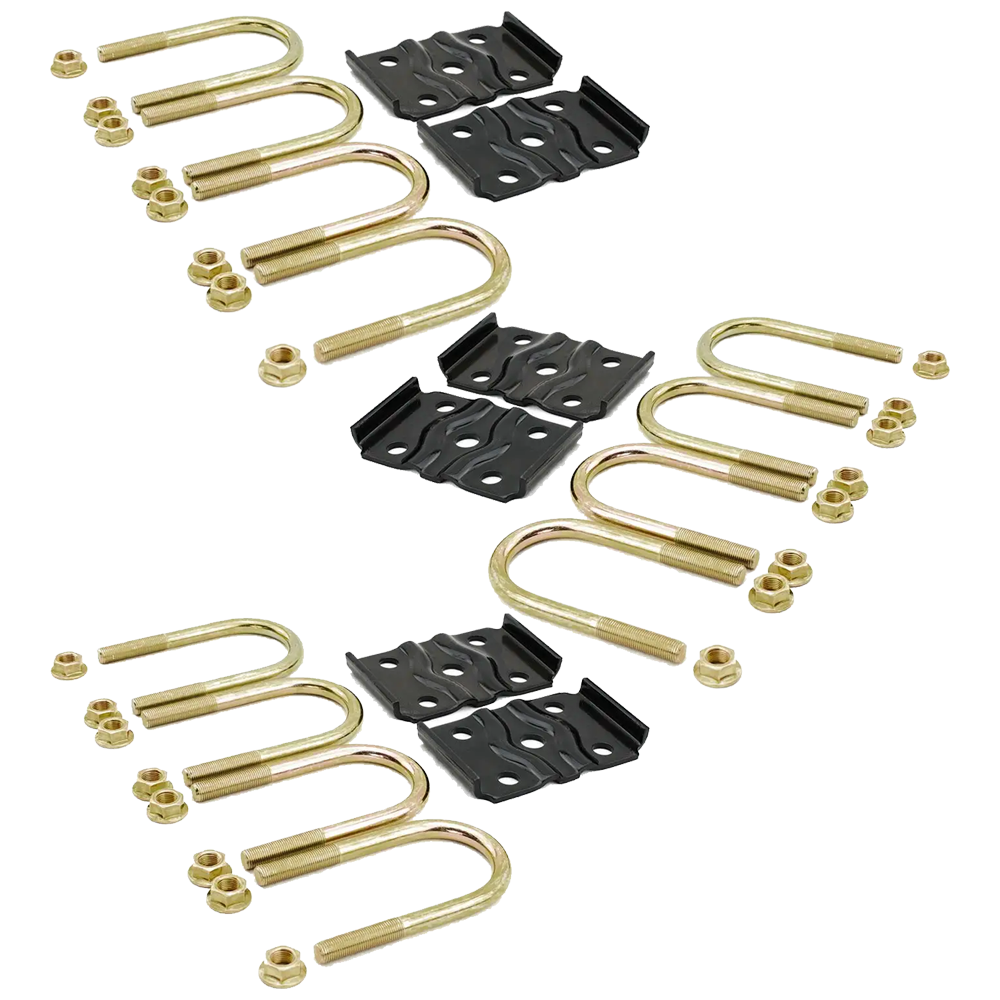

• QTY (3): Lippert Axle Mounting Kit – 2.375" Tube
  • Replacement axle mounting kit for 2.375" tube
  • U-bolt design
• QTY (2): Front Trailer Axle Hanger – 4-5/16" x 2-3/16", 2,200 lb Capacity
  • Welded to chassis to allow mounting of axles and axle components
  • Distance to hole: 3-9/16" on-center
  • Length: 4-5/16"; width: 2-3/16"; hole size: 9/16"
  • Dexter Compatible Part Number: 028-001-00
• QTY (4): Center Trailer Axle Hanger – 4-1/2" x 3-1/8", 2,200-8,000 lb Rating
  • Distance to hole: 3-5/16"
  • Length: 4-1/2"; width: 3-1/8"; hole size: 7/8"
  • Dexter Compatible Part Number: 029-001-00
• QTY (2): Rear Trailer Axle Hanger – 6" x 2-1/4", 2,200-8,000 lb Rating
  • Distance to hole: 4"
  • Length: 6"; width: 2-1/4"; hole size: 5/16"
  • Dexter Compatible Part Number: 030-028-00

Always verify compatibility with your trailer’s original equipment, adhere to recommended maintenance intervals, and regularly inspect your suspension system for optimal performance.
