Lippert Triple Axle Suspension Kit � 2.375" Axle Tube, 33" Spacing, 24-7/8" 4,000 lb Leaf Springs (7-Leaf), Standard Equalizer, Hangers & Hardware � Dexter, Alko, Rockwell, Quality Axles Compatible

Lippert Triple Axle Suspension Kit – 2.375" Axle Tube, 33" Spacing, 24-7/8" 4,000 lb Leaf Springs, Standard Equalizer, Hangers & Hardware

Optimize your triple axle trailer with this complete Lippert suspension kit. Built for a 2.375" axle tube and 33" spacing, this bundle features 24-7/8" unloaded leaf springs rated at 4,000 lbs each, a standard equalizer AP kit, robust hangers, and all essential hardware. Whether you run Dexter, Alko, Lippert, Rockwell, or Quality Axles, this kit helps restore a smoother ride and better load distribution.

Bundle Contents:

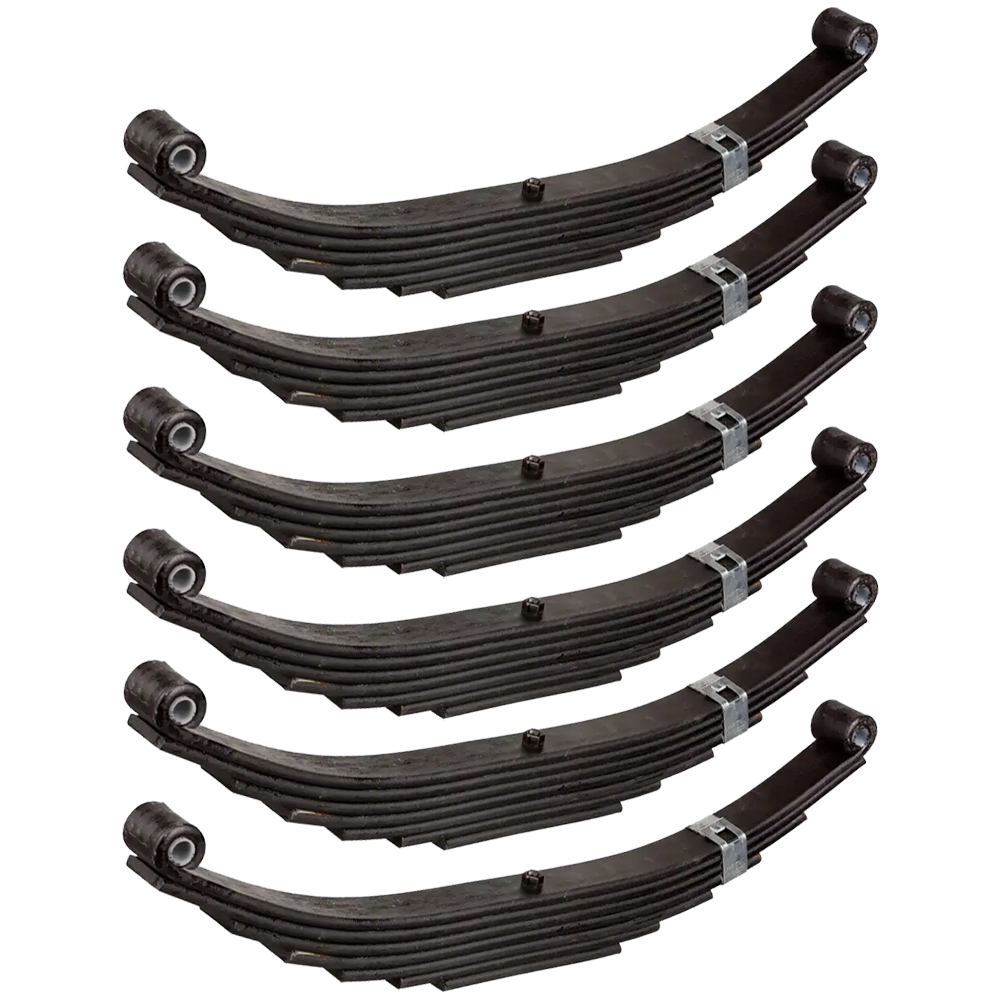

• QTY (6): Replacement Leaf Spring for RV Trailer Suspension (4,000 lbs, 24-7/8" Unloaded)
  • Capacity: 4,000 lbs; 7 leaves
  • Unloaded eye-to-eye length: 24-7/8"
  • Loaded eye-to-eye length: 26"
  • Spring width: 1-3/4"; Eye diameter: 9/16"
  • Dexter Compatible Part Number: 072-079-00

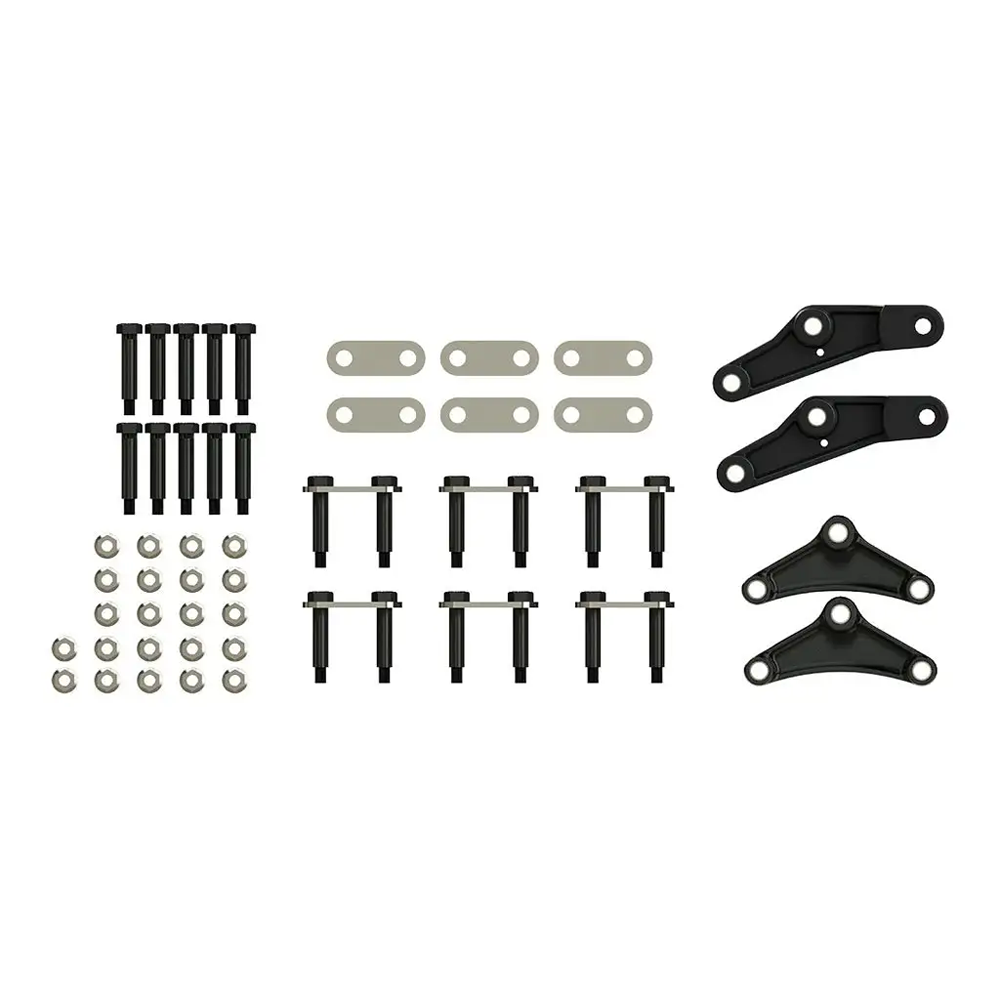

• QTY (1): Triple Axle AP Kit with Standard Equalizer & Standard Bolts
  • Includes shackle links, mounting hardware, and standard equalizers
  • Installs just like your original equipment
  • Dexter Compatible Part Number: A/P-335-00

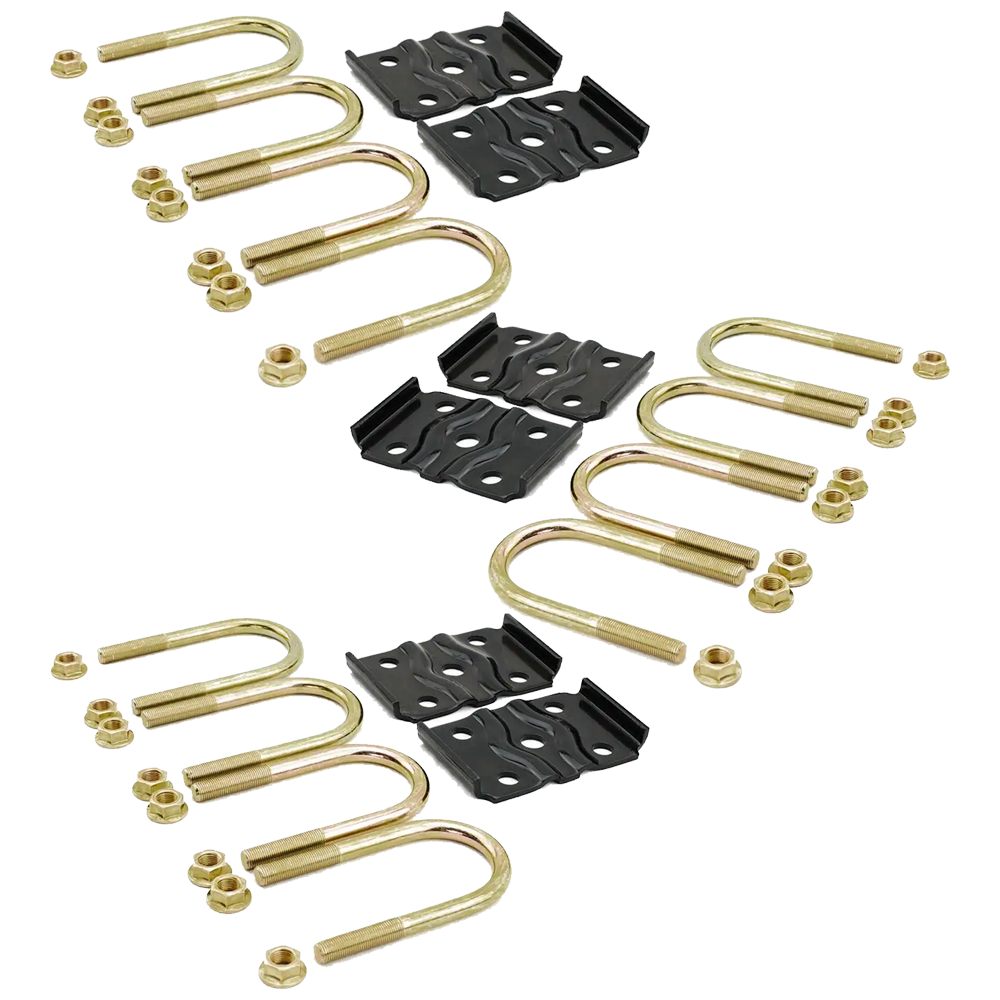

• QTY (3): Lippert Axle Mounting Kit – 2.375" Tube
  • Replacement axle mounting kit (U-bolt design)
  • Engineered for 2.375" axle tubes
  • Installs like original equipment
• QTY (2): Front Trailer Axle Hanger – 4-5/16" x 2-3/16", 2,200-8,000-lb. Axle Rating
  • Welded to chassis to mount axles and axle components
  • Length: 4-5/16" | Width: 2-3/16" | Hole size: 9/16"
  • Distance to hole (on-center): 3-9/16"
  • Dexter Compatible Part Number: 028-001-00
• QTY (4): Center Trailer Axle Hanger – 4-1/2" x 3-1/8", 2,200-8,000-lb. Axle Rating
  • Welded to chassis to mount axles and axle components
  • Length: 4-1/2" | Width: 3-1/8" | Hole size: 7/8"
  • Distance to hole: 3-5/16"
  • Dexter Compatible Part Number: 029-001-00
• QTY (2): Rear Trailer Axle Hanger – 6" x 2-1/4", 2,200-8,000-lb. Axle Rating
  • Welded to chassis to mount axles and axle components
  • Length: 6" | Width: 2-1/4" | Hole size: 5/16"
  • Distance to hole: 4"
  • Dexter Compatible Part Number: 030-028-00

For best results, confirm the original specs of your trailer and perform routine maintenance to keep your suspension operating at its peak.
