Lippert Triple Axle Suspension Kit � 2.375" Axle Tube � 35" Axle Spacing � 1,000 lb Leaf Springs (20-3/8" Unloaded) � Long Equalizer, Hangers & Hardware � Dexter/Al-Ko/Rockwell Compatible

Lippert Triple Axle Suspension Kit – 2.375" Axle Tube – 35" Axle Spacing – 1,000 lb Leaf Springs (20-3/8" Unloaded) – Long Equalizer, Hangers & Hardware – Dexter/Al-Ko/Rockwell Compatible

Give your triple axle trailer a complete suspension upgrade with this Lippert kit. Featuring 2.375" axle tubes, 35" axle spacing, and 1,000 lb leaf springs (20-3/8" unloaded length), it comes with a long equalizer, hangers, and all hardware you need. Compatible with Dexter, Al-Ko, Rockwell, Quality Axles, and more, this setup delivers a smooth, reliable ride for heavy-duty towing.

Bundle Contents:

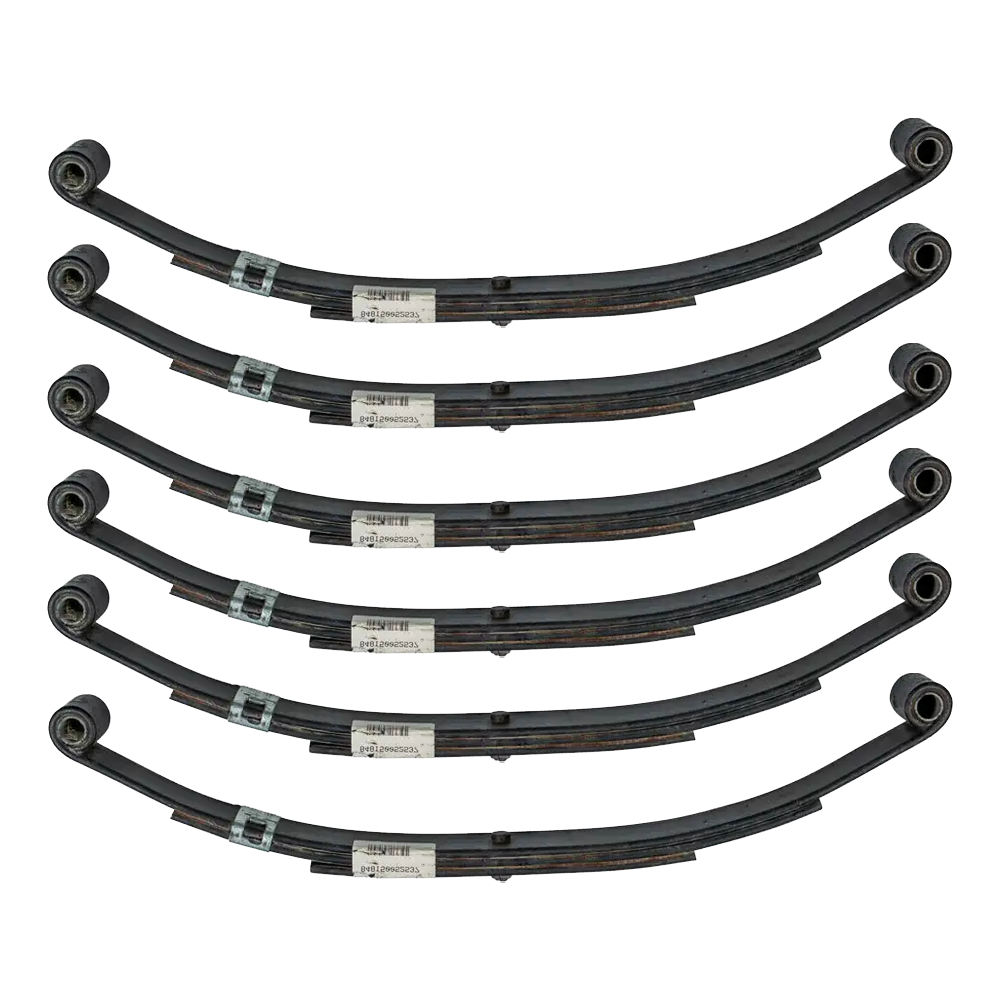

• QTY (6): 1,000 lb Leaf Springs (20-3/8" Unloaded, 21" Loaded)
  • Replacement leaf spring for RV or utility trailer
  • 1,000 lb capacity, 3 leaves, 1-3/4" width
  • 20-3/8" eye-to-eye unloaded length; 21" loaded
  • 2-7/8" arch height unloaded; 2-1/8" loaded
  • 9/16" spring eye diameter
• QTY (1): Triple Axle AP Kit with Long Equalizer and Standard Bolts
  • Replacement triple axle suspension AP kit
  • Includes shackle links, mounting hardware, long equalizers
  • Standard bolts for straightforward installation
  • Installs just like your original equipment

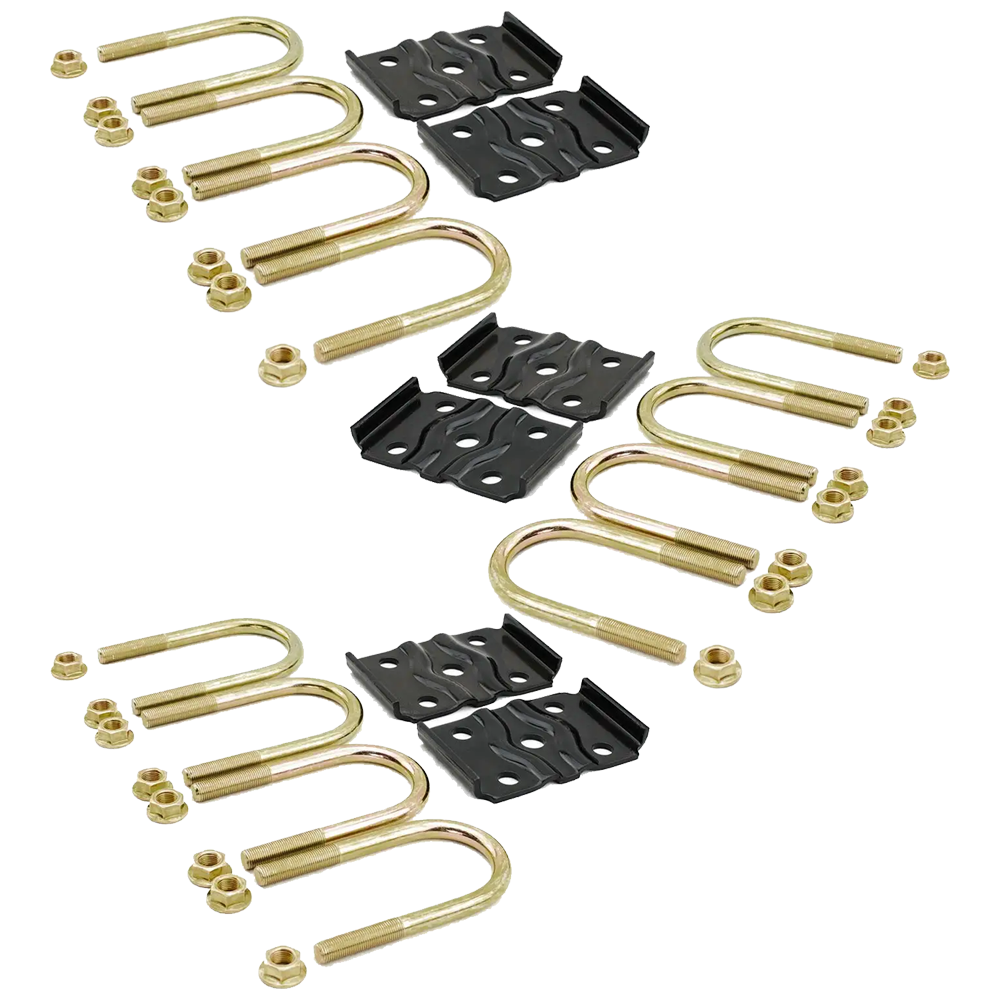

• QTY (3): Lippert Axle Mounting Kit – 2.375" Tube
  • Direct replacement axle mounting system for 2.375" tubes
  • U-bolt design for secure attachment
  • Installs like original hardware
  • Consult your trailer’s specs for proper fitment
• QTY (2): Front Trailer Axle Hanger – 4-5/16" x 2-3/16"
  • Axle rating: 2,200 – 8,000 lbs.
  • Length: 4-5/16", Width: 2-3/16"
  • Distance to hole: 3-9/16" on-center, Hole size: 9/16"
  • Welds to chassis for axle mounting
• QTY (4): Center Trailer Axle Hanger – 4-1/2" x 3-1/8"
  • Axle rating: 2,200 – 8,000 lbs.
  • Length: 4-1/2", Width: 3-1/8"
  • Distance to hole: 3-5/16", Hole size: 7/8"
  • Installs like the original component
• QTY (2): Rear Trailer Axle Hanger – 6" x 2-1/4"
  • Axle rating: 2,200 – 8,000 lbs.
  • Length: 6", Width: 2-1/4"
  • Distance to hole: 4", Hole size: 5/16"
  • Welds in place for rear-axle support

For best results, always confirm each component matches your trailer’s specifications. Perform regular maintenance and inspections to keep your suspension in top condition.
