Lippert Triple Axle Suspension Kit � 2.375" Axle Tube � 35" Spacing � 20-1/2" (1,400 lb) Leaf Springs, Long Equalizer, Hangers & Hardware (Fits Dexter, Al-Ko, Rockwell)

Lippert Triple Axle Suspension Kit – 2.375" Axle Tube – 35" Spacing – 20-1/2" (1,400 lb) Leaf Springs

This complete Lippert triple axle suspension kit is designed to fit 2.375" axle tubes and 35" axle spacing, featuring 1,400 lb leaf springs with 20-1/2" unloaded eye-to-eye length. The long equalizer, hangers, and all necessary hardware are included for a straightforward installation. Compatible with Dexter, Al-Ko, Lippert, and Rockwell axles, this kit delivers enhanced stability and smoother towing for your RV or utility trailer.

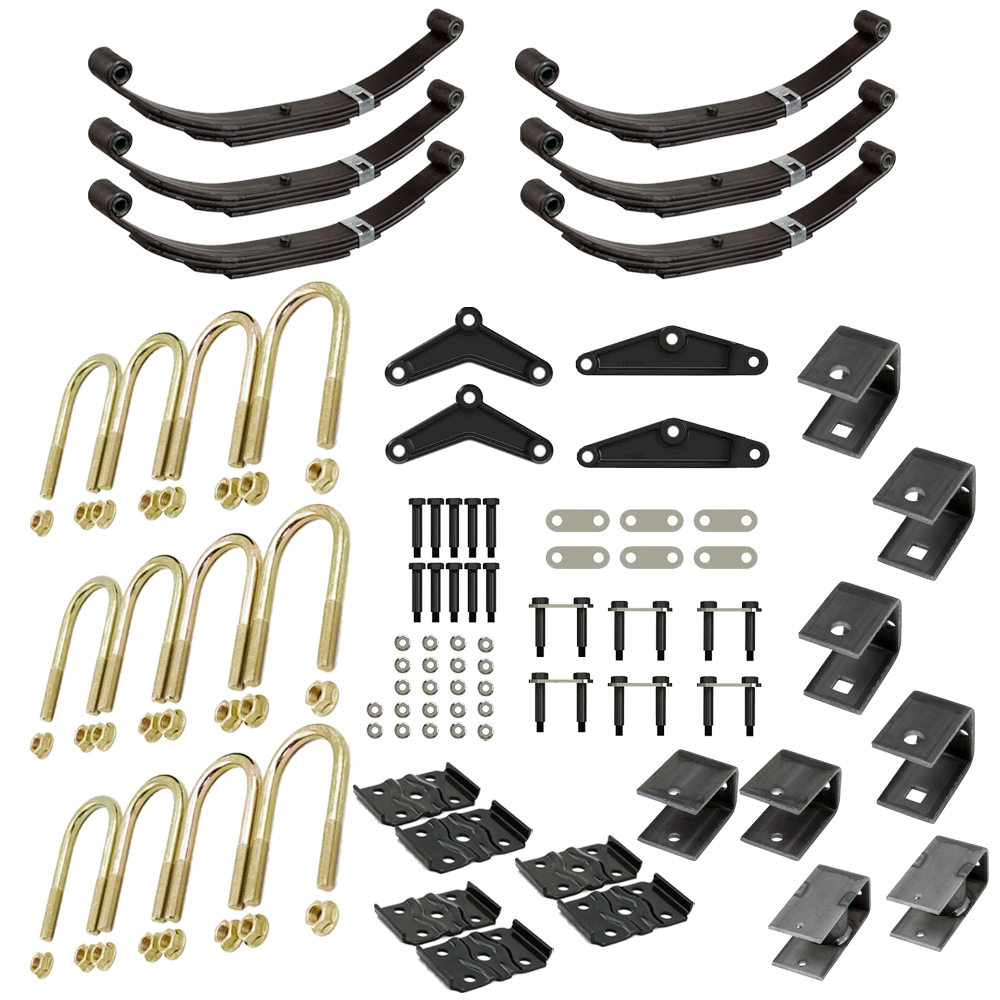

Bundle Contents:

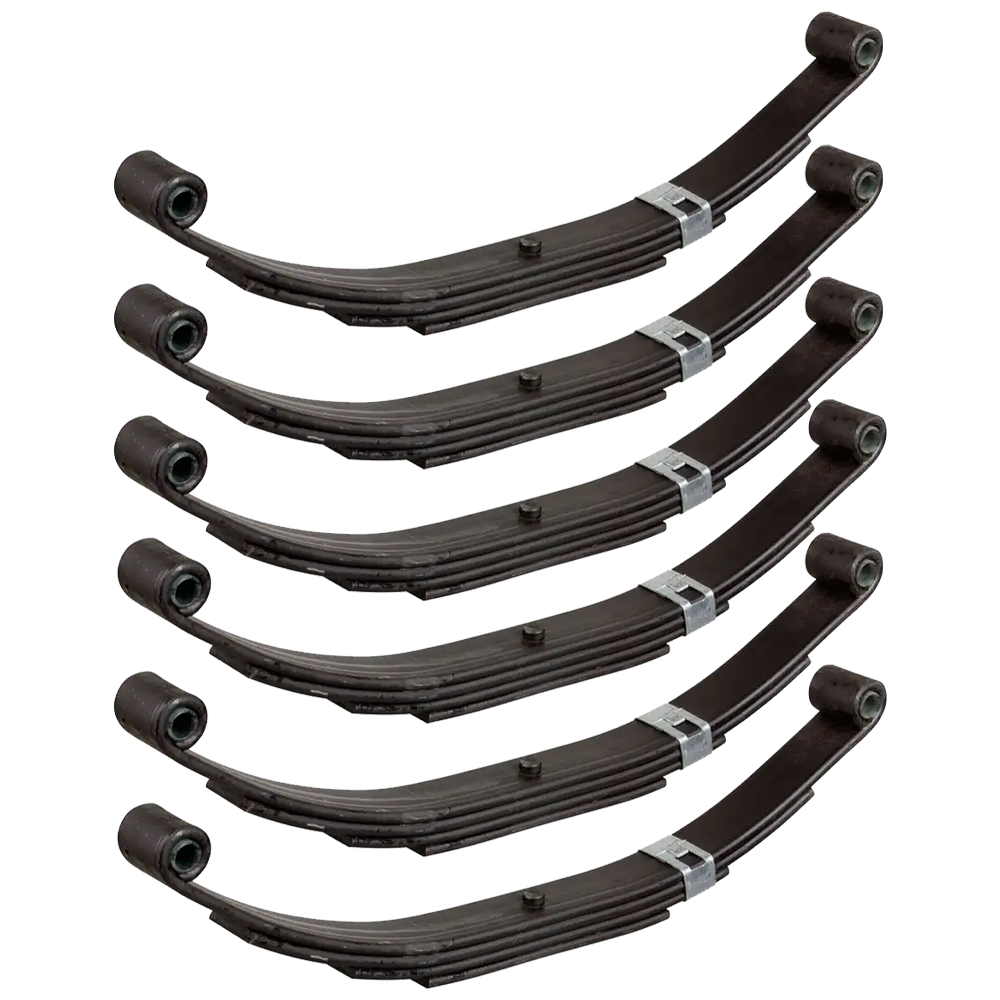

• QTY (6): 1,400 lb Leaf Spring – 20-1/2" Unloaded Eye-to-Eye
  • 1,400 lb capacity per spring
  • 4 leaves, 1-3/4" wide
  • 20-1/2" unloaded eye-to-eye, 21" loaded eye-to-eye
  • Arch height: 3-1/2" unloaded, 2-3/8" loaded
  • 9/16" spring eye diameter

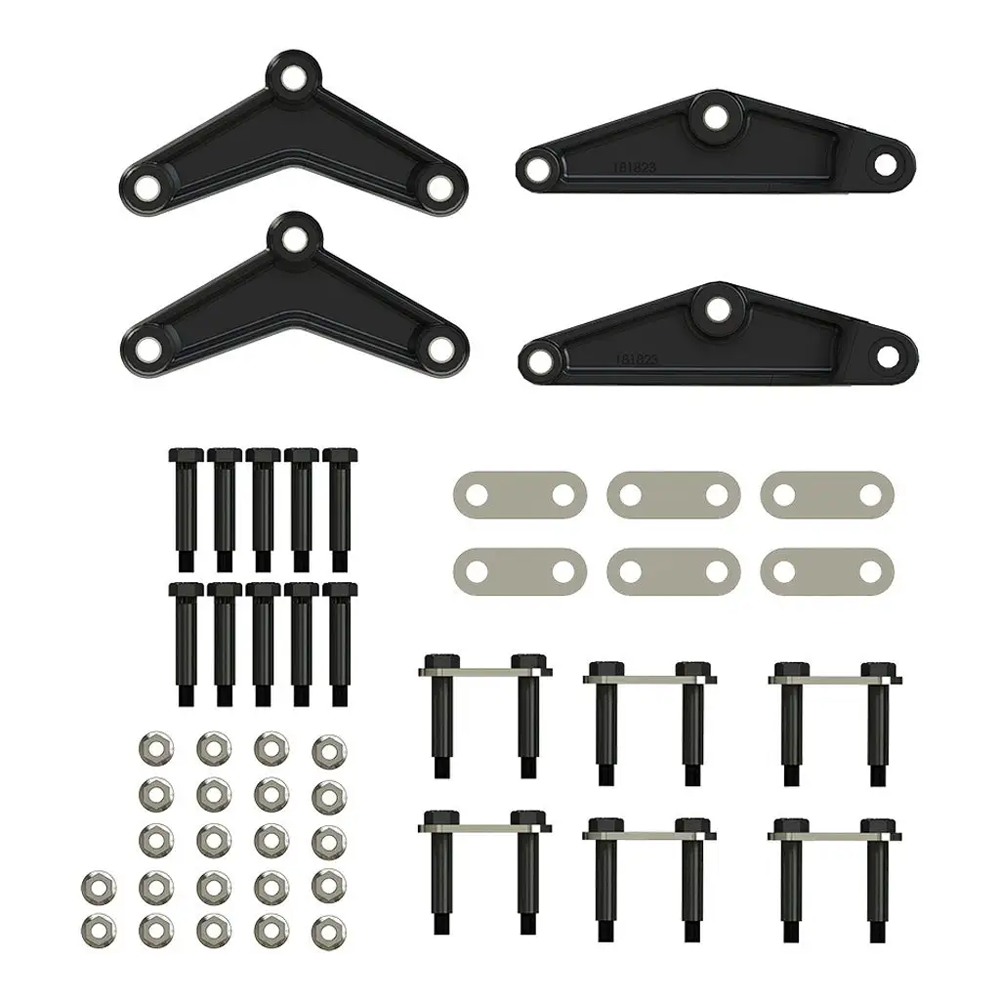

• QTY (1): Triple Axle AP Kit with Long Equalizer and Standard Bolts
  • Includes shackle links, mounting hardware, and long equalizers
  • Installs just like your original triple axle configuration
  • Ensures a smooth, balanced suspension system

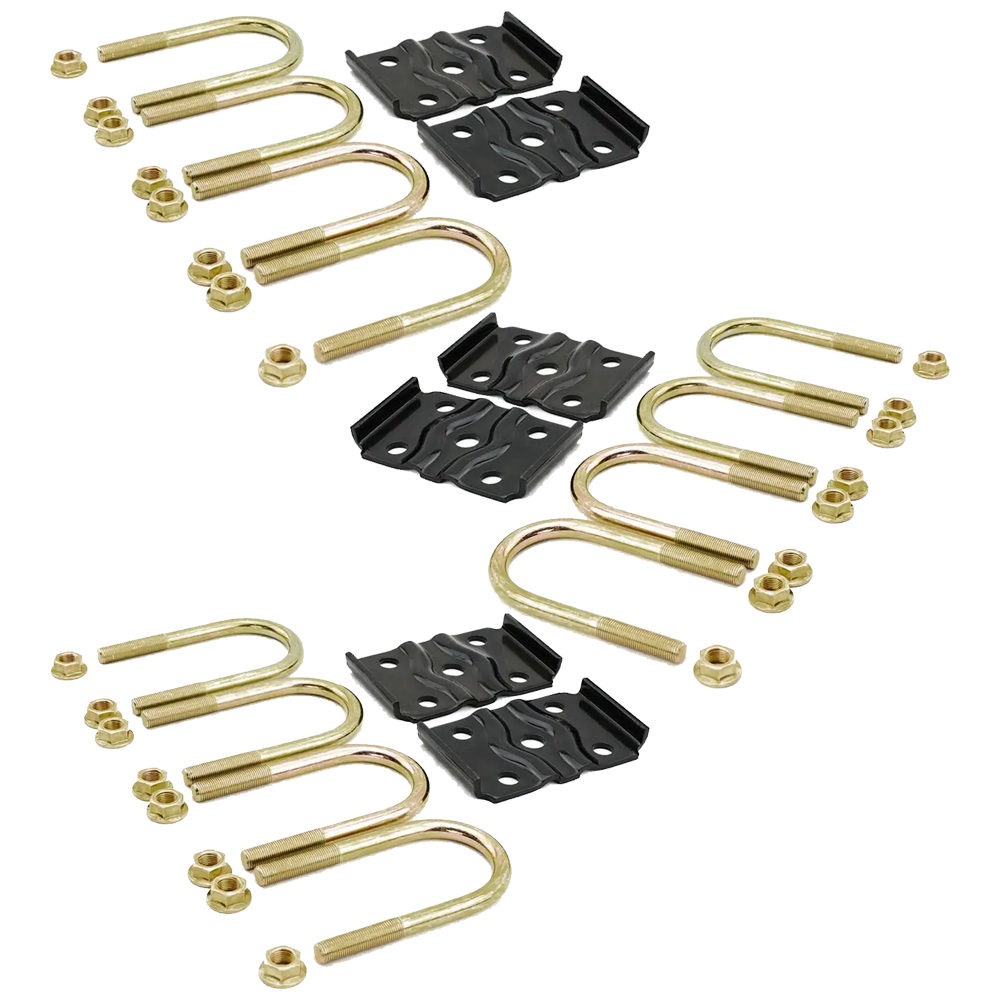

• QTY (3): Lippert Axle Mounting Kit – 2.375" Tube
  • U-bolt design for secure axle attachment
  • Exact-match replacement for 2.375" axle tubes
  • Installs just like the original equipment
• QTY (2): Front Trailer Axle Hanger – 4-5/16" x 2-3/16"
  • Axle capacity: 2,200–8,000 lbs.
  • Distance to hole: 3-9/16" on-center
  • Hole size: 9/16"
  • Welds to chassis for axle/component mounting

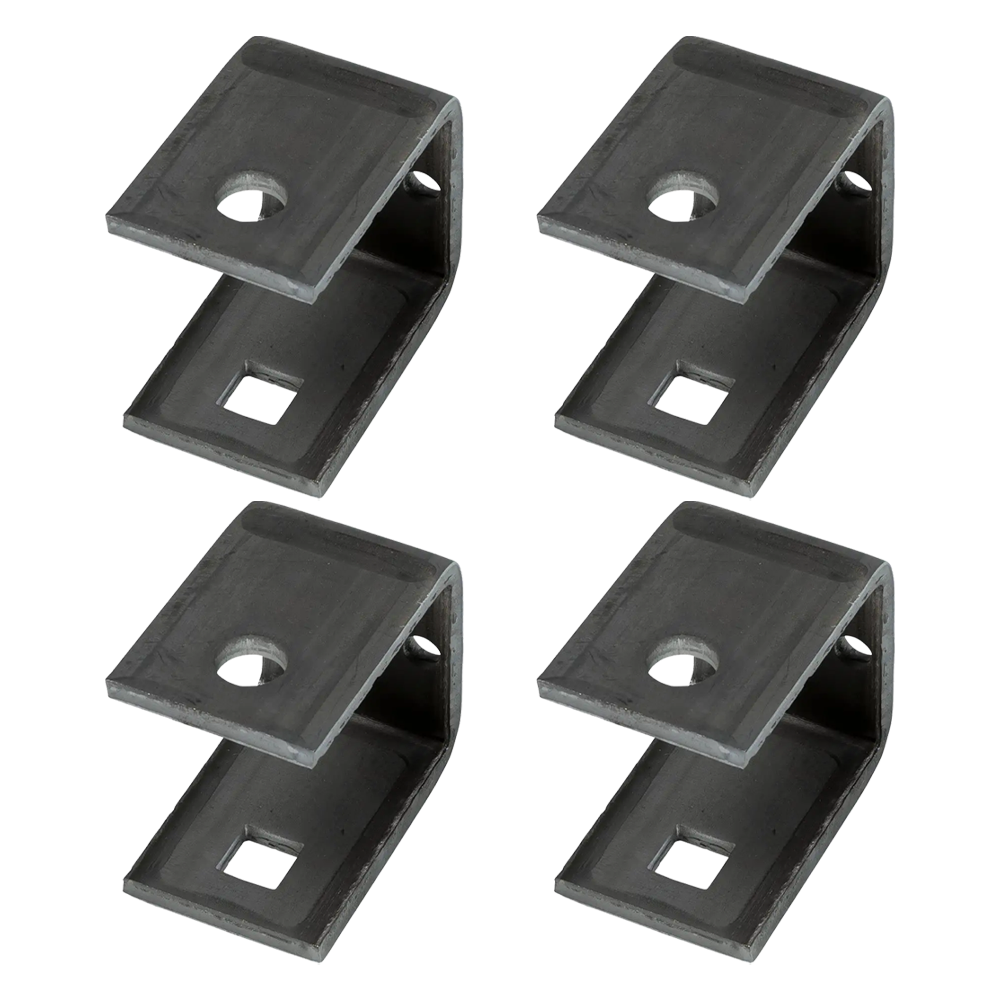

• QTY (4): Center Trailer Axle Hanger – 4-1/2" x 3-1/8"
  • Axle capacity: 2,200–8,000 lbs.
  • Distance to hole: 3-5/16" on-center
  • Hole size: 7/8"
  • Universal fit for competitor axles
• QTY (2): Rear Trailer Axle Hanger – 6" x 2-1/4"
  • Axle capacity: 2,200–8,000 lbs.
  • Distance to hole: 4" on-center
  • Hole size: 5/16"
  • Universal fit for competitor axles

Always verify your existing axle spacing and hardware before purchasing. Regular inspections and proper maintenance will help extend the life of your suspension and improve towing safety.
