Lippert Triple Axle Suspension Kit � 2.375" Axle Tube, 35" Spacing, 23-1/8" (2,500 lb) Leaf Springs, Long Equalizers, Hangers & Hardware � Dexter, Al-Ko, Lippert, Rockwell Compatible

Lippert Triple Axle Suspension Kit – 2.375" Axle Tube, 35" Spacing, 23-1/8" Leaf Springs (2,500 lb), Long Equalizers & Hangers

This complete trailer suspension kit is designed specifically for triple axle configurations using 2.375" axle tubes and 35" axle spacing. With six 2,500 lb leaf springs (23-1/8" unloaded eye-to-eye length), long equalizers, all hangers, and mounting hardware included, it’s compatible with Dexter, Al-Ko, Lippert, Rockwell, and Quality Axles. Restore proper ride height and safe towing performance for your RV or utility trailer.

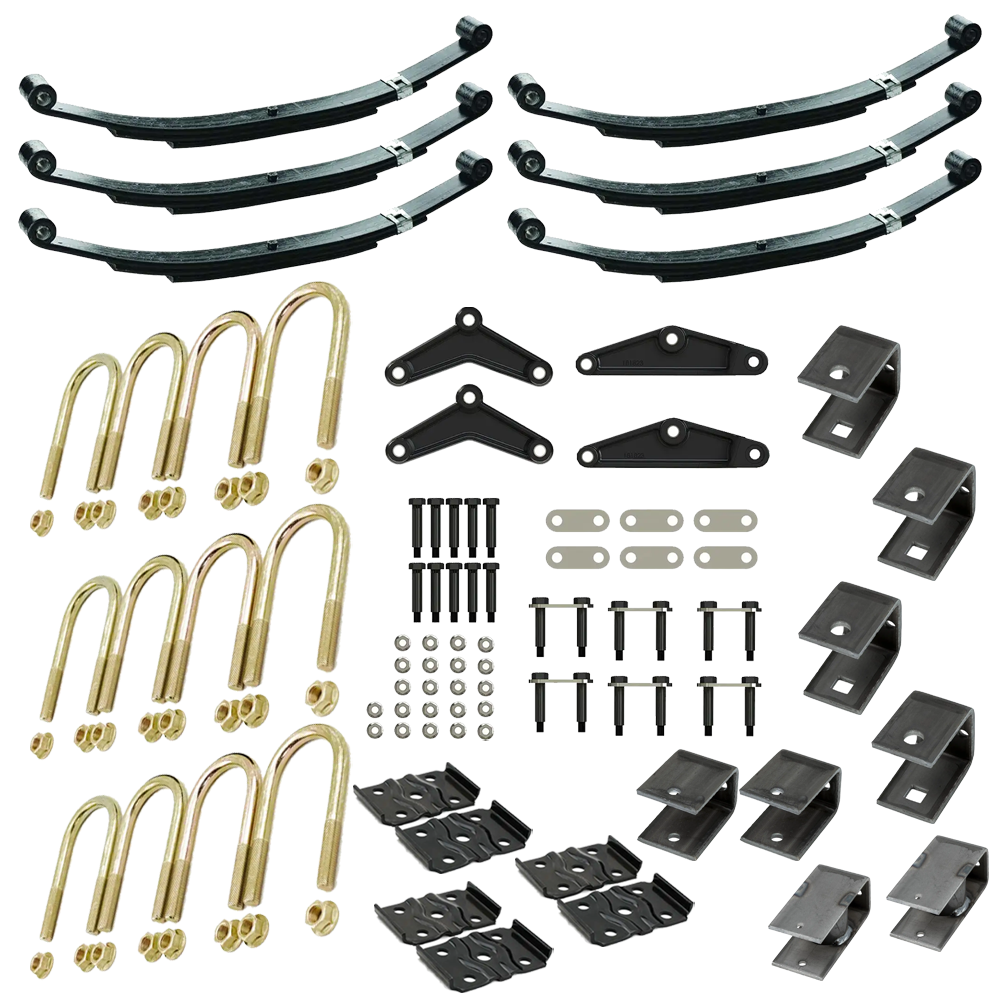

Bundle Contents:

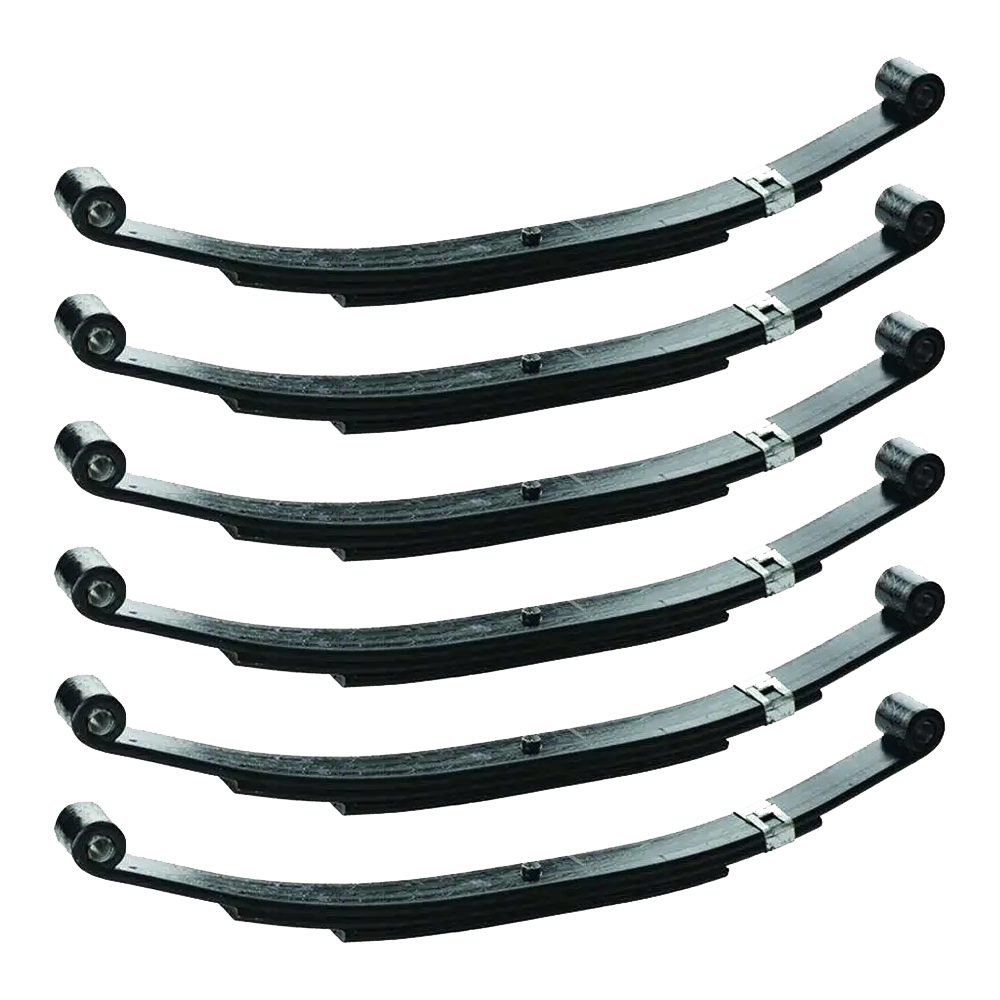

• QTY (6): 23-1/8" Leaf Spring (2,500 lbs)
  • Unloaded eye-to-eye length: 23-1/8", loaded length: 24"
  • 4 leaves, 1-3/4" wide, 2,500 lb capacity each
  • 9/16" spring eye diameter
  • Dexter Compatible Part Number: 072-020-00
• QTY (1): Triple Axle AP Kit with Long Equalizers and Standard Bolts
  • Includes shackle links, mounting hardware, and long equalizers
  • Installs just like your original equipment
  • Restores proper suspension travel and alignment

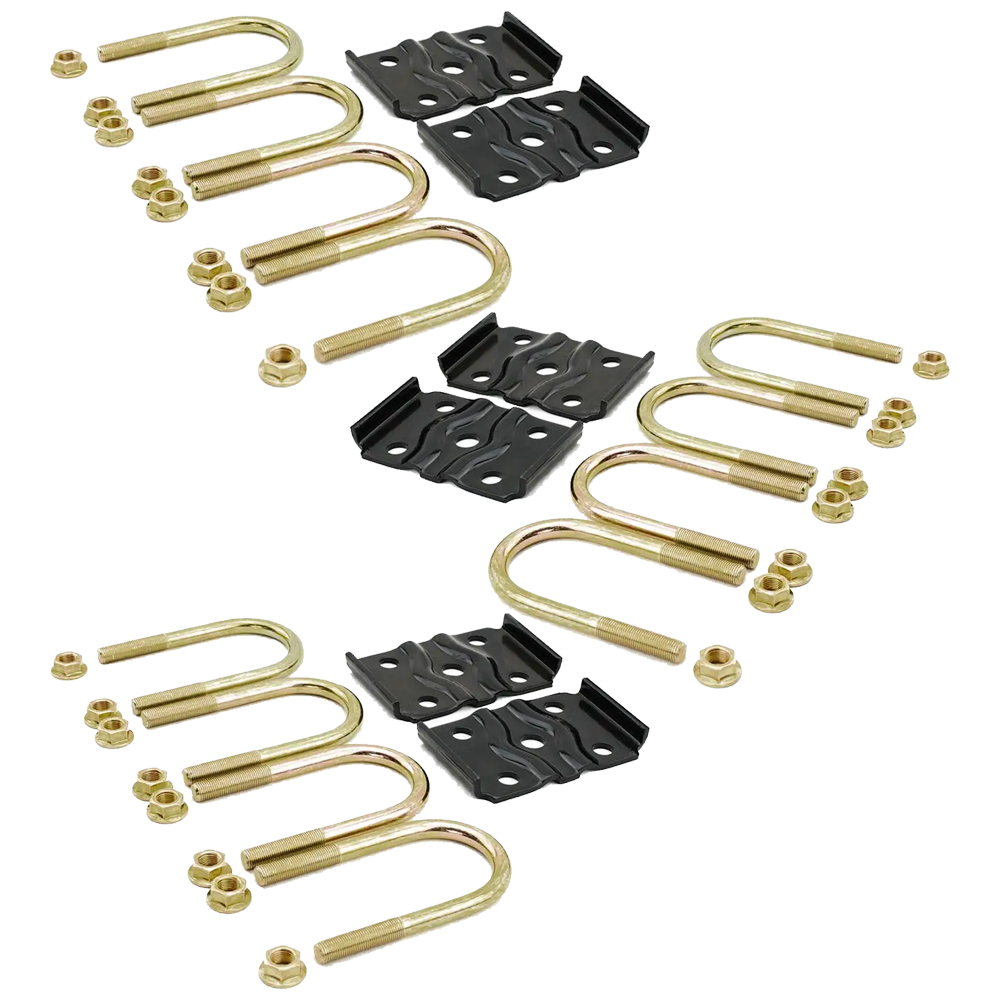

• QTY (3): Lippert Axle Mounting Kit – 2.375" Tube
  • U-bolt design for secure axle mounting
  • Exact-match replacement for 2.375" diameter axles
  • Installs quickly to get your trailer back on the road
• QTY (2): Front Trailer Axle Hanger – 4-5/16" x 2-3/16"
  • Axle capacity: 2,200-8,000 lbs
  • Length: 4-5/16", width: 2-3/16", hole size: 9/16"
  • Distance to hole: 3-9/16" on-center
  • Dexter Compatible Part Number: 028-001-00
• QTY (4): Center Trailer Axle Hanger – 4-1/2" x 3-1/8"
  • Axle capacity: 2,200-8,000 lbs
  • Length: 4-1/2", width: 3-1/8", hole size: 7/8"
  • Distance to hole: 3-5/16"
  • Dexter Compatible Part Number: 029-001-00
• QTY (2): Rear Trailer Axle Hanger – 6" x 2-1/4"
  • Axle capacity: 2,200-8,000 lbs
  • Length: 6", width: 2-1/4", hole size: 5/16"
  • Distance to hole: 4"
  • Dexter Compatible Part Number: 030-028-00

Always confirm that your trailer’s existing axle ratings, suspension components, and maintenance intervals match the specifications of this kit. Proper inspection and upkeep of leaf springs, hangers, and hardware is essential for safe towing.
