Lippert Triple Axle Suspension Kit � 2.375" Axle Tube, 35" Spacing, 25-1/4" 3,000 lb Leaf Springs, Long Equalizers, Hangers & Hardware (Dexter/Alko/Rockwell)

Lippert Triple Axle Suspension Kit – 2.375" Axle Tube, 35" Spacing, 25-1/4" 3,000 lb Leaf Springs

Upgrade or replace your trailer’s suspension with this all-in-one Lippert triple axle kit. Designed to fit 2.375" axle tubes and featuring 25-1/4" (unloaded) 3,000 lb leaf springs, long equalizers, plus the necessary hangers and hardware, this bundle delivers a smooth, reliable ride whether you’re hauling heavy loads or making long-distance trips. Compatible with Dexter, Alko, Rockwell, and other quality axles.

Bundle Contents:

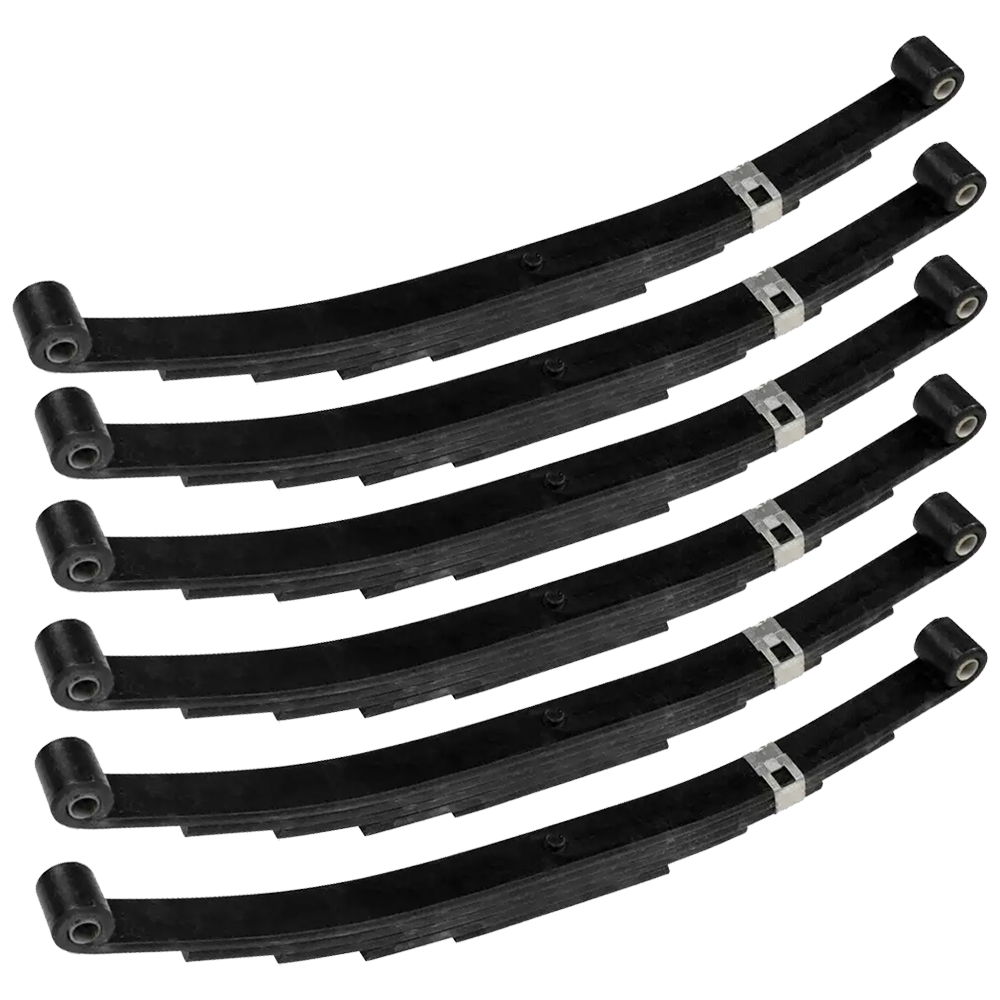

• QTY (6): Trailer Double-Eye Spring - 3,000-lb. 5-Leaf, 1-3/4" Wide x 25-1/4" Long
  • 3,000 lb capacity per spring (Industry #: SW-5)
  • 5 leaves, 1-3/4" wide
  • 25-1/4" eye-to-eye length unloaded; 26" loaded length
  • 3-1/8" arch height unloaded; 1-3/4" loaded
  • 9/16" spring eye diameter
  • Universally compatible with Dexter and others

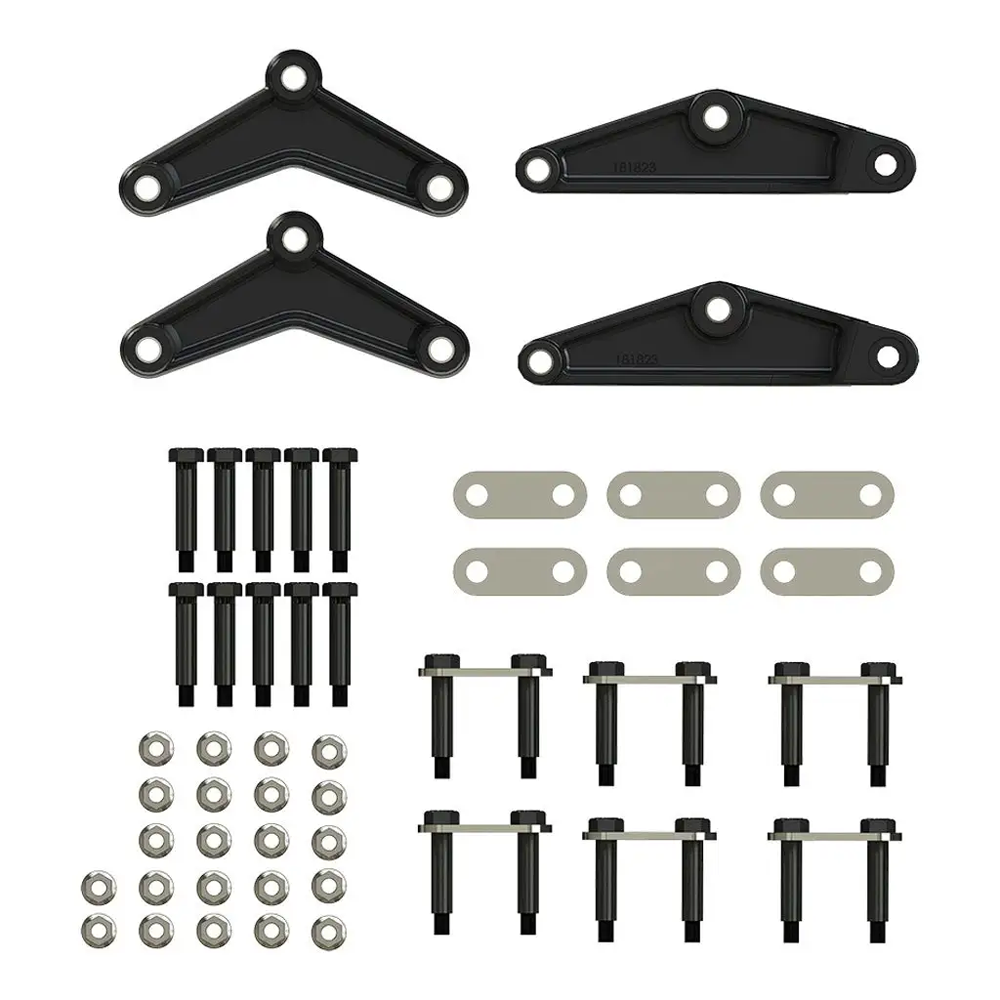

• QTY (1): Triple Axle AP Kit with Long Equalizer and Standard Bolts
  • Replacement triple axle AP kit with long equalizers
  • Includes shackle links, mounting hardware, and standard bolts
  • Installs just like your original equipment

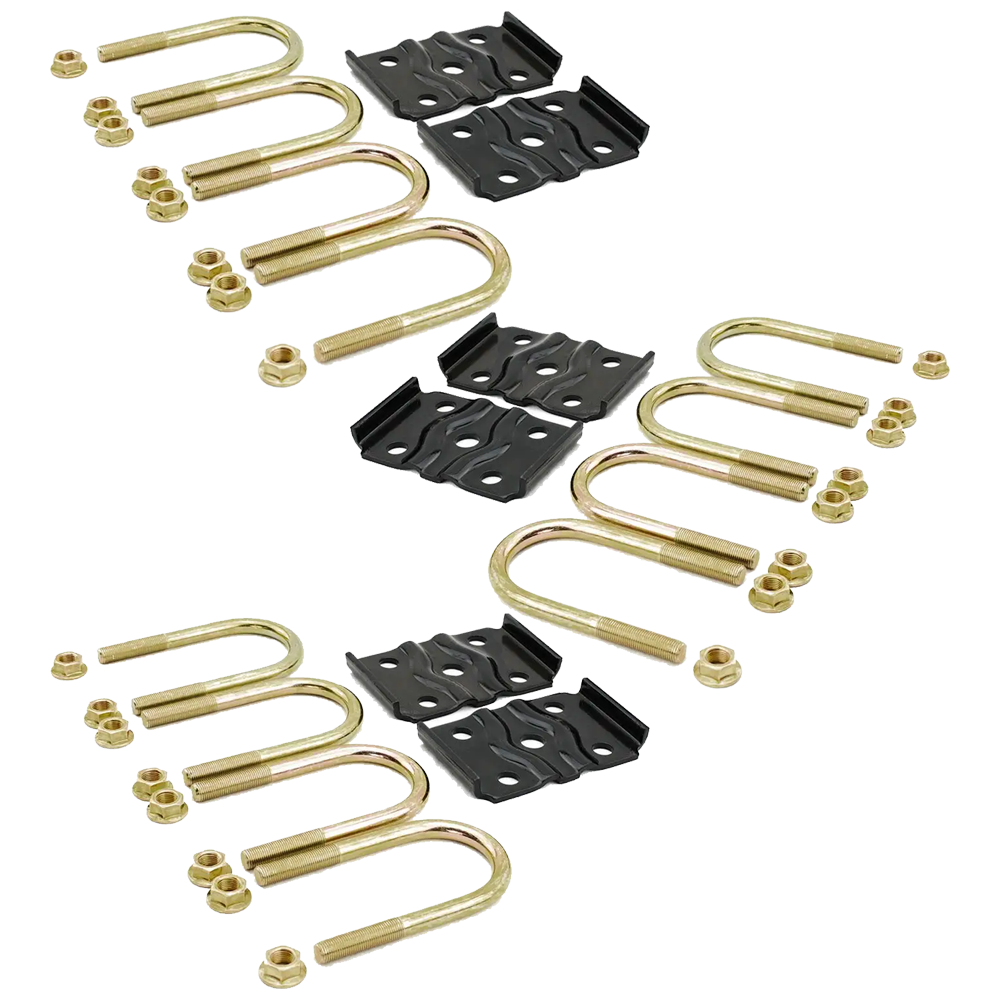

• QTY (3): Lippert Axle Mounting Kit – 2.375" Tube
  • Replacement mounting kit for 2.375" axle tubes
  • U-bolt design for secure installation
  • Installs just like the original hardware
• QTY (2): Front Trailer Axle Hanger – 4-5/16" x 2-3/16", 2,200-8,000-lb. Rating
  • Weld-on hanger for the front axle position
  • Length: 4-5/16", Width: 2-3/16", Hole Size: 9/16"
  • Distance to hole: 3-9/16" on-center
  • Dexter Compatible Part Number: 028-001-00
• QTY (4): Center Trailer Axle Hanger – 4-1/2" x 3-1/8", 2,200-8,000-lb. Rating
  • Weld-on hanger for the center axle position
  • Length: 4-1/2", Width: 3-1/8", Hole Size: 7/8"
  • Distance to hole: 3-5/16"
  • Dexter Compatible Part Number: 029-001-00
• QTY (2): Rear Trailer Axle Hanger – 6" x 2-1/4", 2,200-8,000-lb. Rating
  • Weld-on hanger for the rear axle position
  • Length: 6", Width: 2-1/4", Hole Size: 5/16"
  • Distance to hole: 4"
  • Dexter Compatible Part Number: 030-028-00

Before installing, always confirm compatibility with your existing axle tubes and suspension components. Routine checks of your leaf springs and hardware help ensure safe towing and longer trailer life.
