Lippert Triple Axle Suspension Kit, 2.375" Tube, 35" Spacing, 3,500-lb Leaf (24-7/8"), Long Equalizers, w/ Hangers & Hardware - Dexter | Al-Ko | Rockwell Compatible

Lippert Triple Axle Suspension Kit – 2.375" Tube, 35" Spacing, 3,500-lb Leaf Springs (24-7/8" Unloaded), Long Equalizers, Hangers & Hardware

Get a comprehensive suspension upgrade for your triple axle trailer. This bundle includes quality Lippert leaf springs, a triple axle AP kit with long equalizers, sturdy hangers, and all the necessary hardware for a smooth, reliable ride. Perfect for trailers running Dexter, Al-Ko, Lippert, Rockwell, or other quality axles.

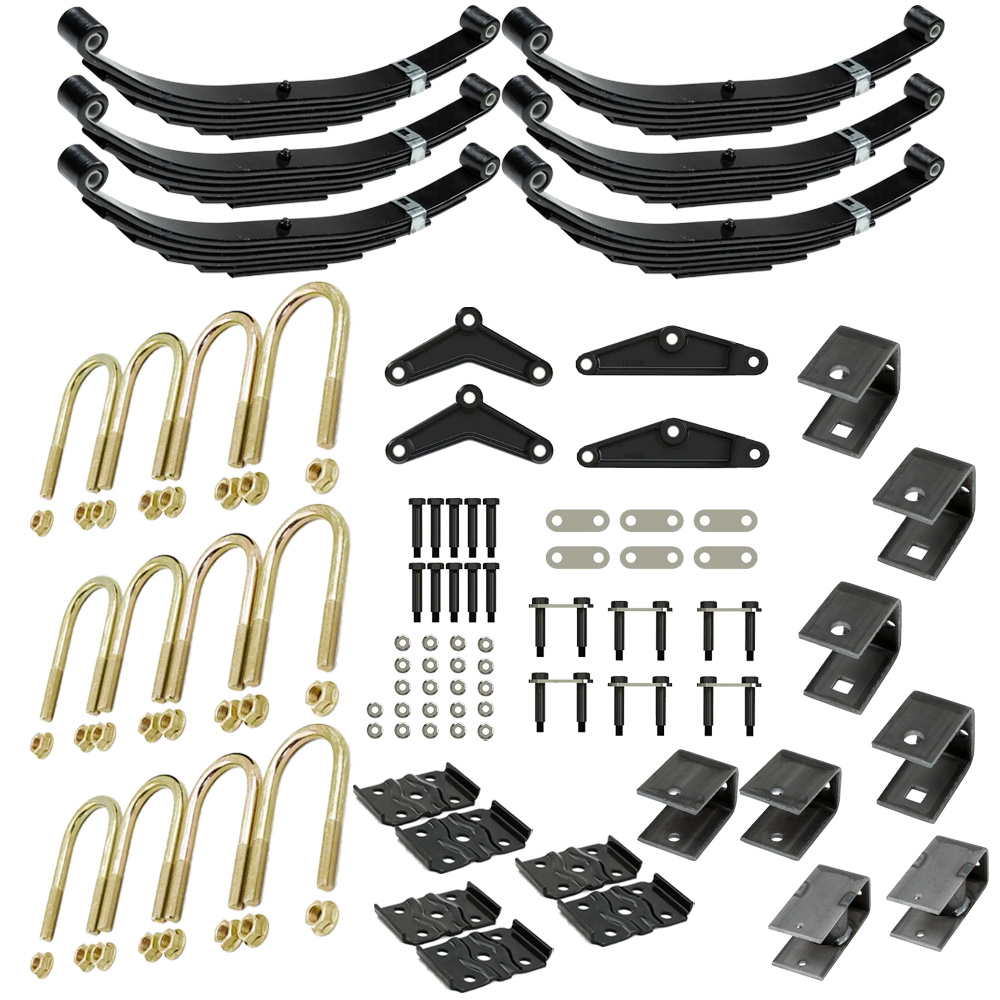

Bundle Contents:

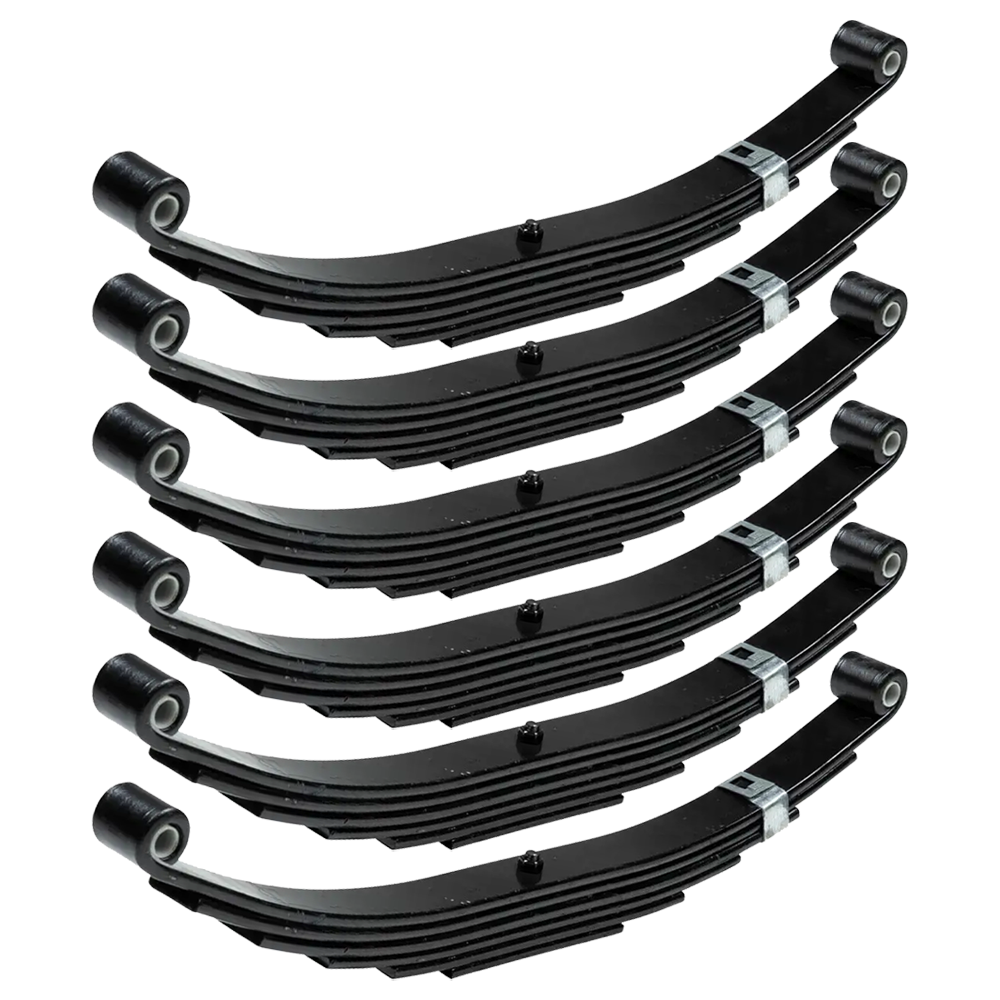

• QTY (6): Leaf Spring - 3,500 lb Capacity
  • Unloaded eye-to-eye length: 24-7/8"
  • Loaded eye-to-eye length: 26"
  • Leaf spring width: 1-3/4"; 6 leaves
  • Arch height unloaded: 3-1/4"; loaded: 1-3/4"
  • Spring eye diameter: 9/16"
  • Dexter Compatible Part Number: 072-027-00

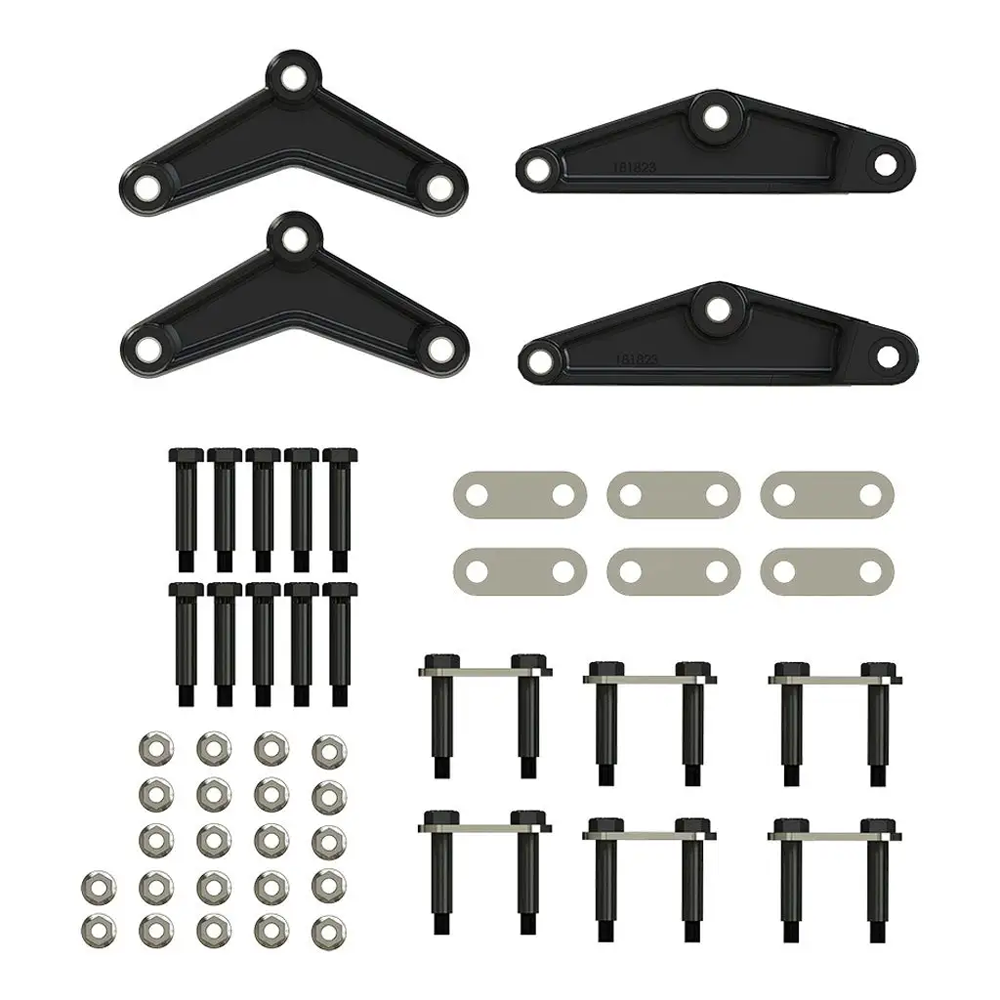

• QTY (1): Triple Axle AP Kit with Long Equalizer and Standard Bolts
  • Replacement triple axle AP kit
  • Includes shackle links, mounting hardware, and long equalizers
  • Engineered for dependability and ease of installation

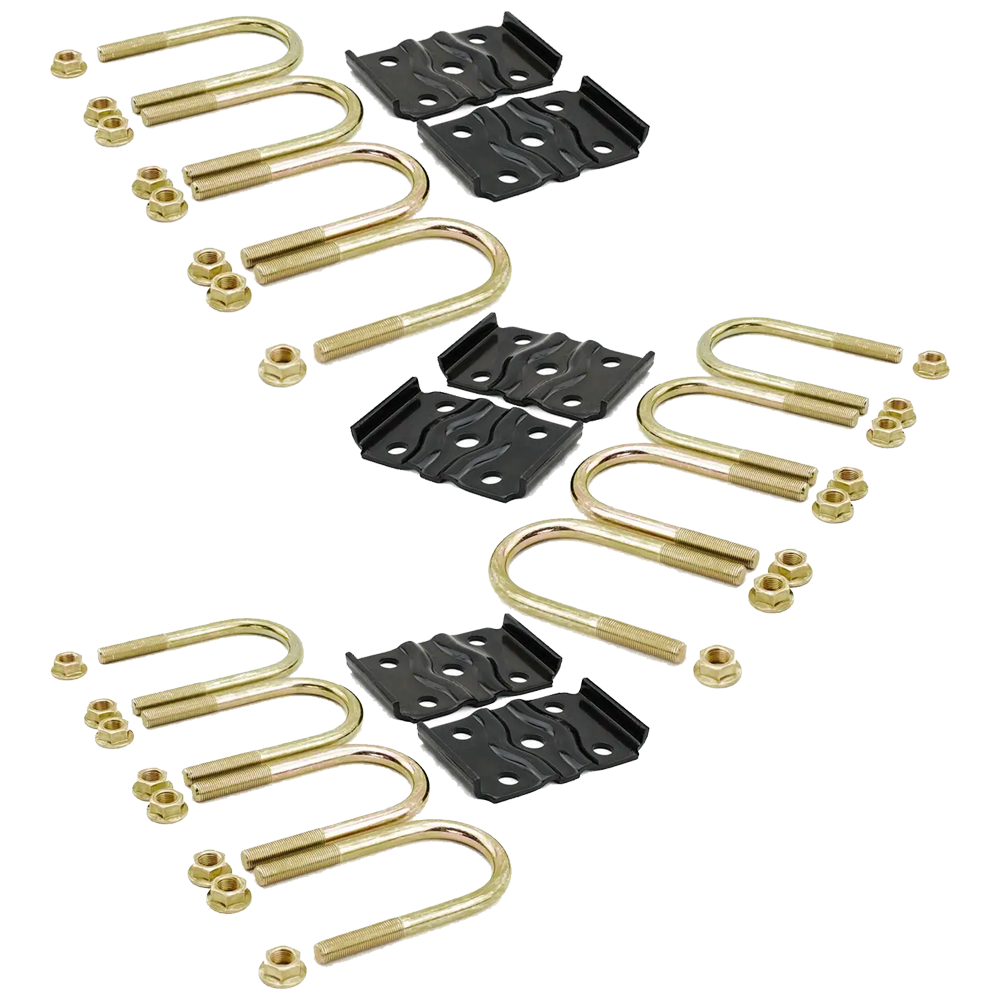

• QTY (3): Lippert Axle Mounting Kit - For 2.375" Axle Tube
  • U-bolt style for a secure attachment
  • Designed specifically for 2.375" diameter axle tubes
  • Check your original hardware prior to purchase
• QTY (2): Front Trailer Axle Hanger - 4-5/16" x 2-3/16"
  • Length: 4-5/16"; width: 2-3/16"
  • Hole size: 9/16"; distance to hole: 3-9/16" on-center
  • Welded to chassis for front axle attachment
  • Built for 2,200-8,000-lb axle capacities
  • Dexter Compatible Part Number: 028-001-00
• QTY (4): Center Trailer Axle Hanger - 4-1/2" x 3-1/8"
  • Length: 4-1/2"; width: 3-1/8"
  • Hole size: 7/8"; distance to hole: 3-5/16"
  • Welded to chassis for center axle attachment
  • Supports 2,200-8,000-lb axles
  • Dexter Compatible Part Number: 029-001-00
• QTY (2): Rear Trailer Axle Hanger - 6" x 2-1/4"
  • Length: 6"; width: 2-1/4"
  • Hole size: 5/16"; distance to hole: 4"
  • Welded to chassis for rear axle attachment
  • Built for 2,200-8,000-lb axle capacities
  • Dexter Compatible Part Number: 030-028-00

We recommend verifying all OEM specifications and performing routine maintenance to ensure proper fit and optimal performance. Regular inspections and timely replacements will help keep your trailer safe on the road.
