Lippert Triple Axle Suspension Kit � 3" Axle Tube, 33" Axle Spacing, 1,250 lb (23-1/8" Unloaded) Leaf Springs, Standard Equalizer, Hangers & Hardware for Dexter, Alko, Rockwell, Quality Axles

Lippert Triple Axle Suspension Kit – 3" Axle Tube, 33" Axle Spacing, 1,250 lb (23-1/8" Unloaded) Leaf Springs, Standard Equalizer, Hangers & Hardware

Upgrade your triple axle trailer with this complete Lippert suspension kit, designed to work with Dexter, Alko, Rockwell, and other quality axles. Featuring six high-capacity leaf springs (1,250 lb each) that measure 23-1/8" unloaded eye-to-eye, this kit also includes three axle mounting kits, one triple axle AP kit with standard equalizer, plus front, center, and rear hangers. Everything you need to revitalize your trailer’s suspension and enjoy smoother, more reliable towing is right here.

Bundle Contents:

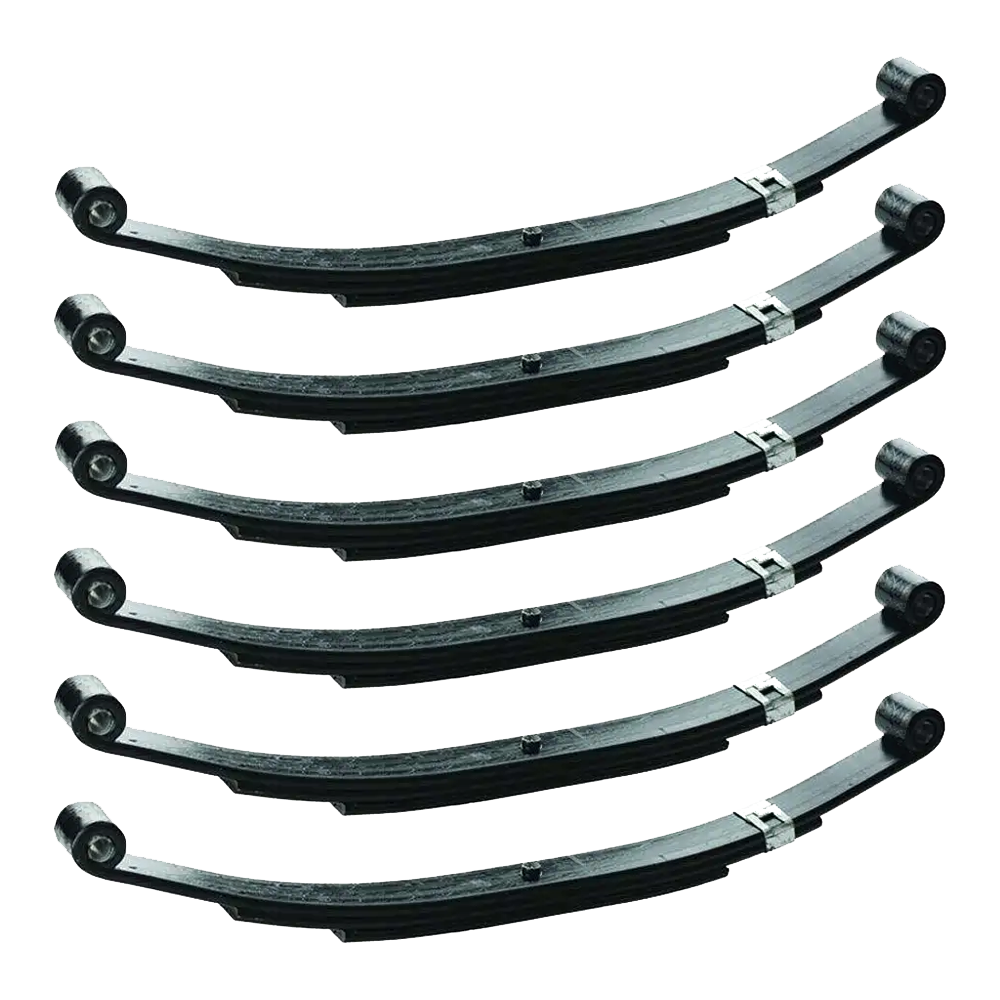

• QTY (6): 24" Leaf Spring Loaded Length – 1,250 lbs.
  • Capacity: 1,250 lbs. each
  • Width: 1-3/4"
  • Unloaded eye-to-eye length: 23-1/8"
  • Loaded length: 24"

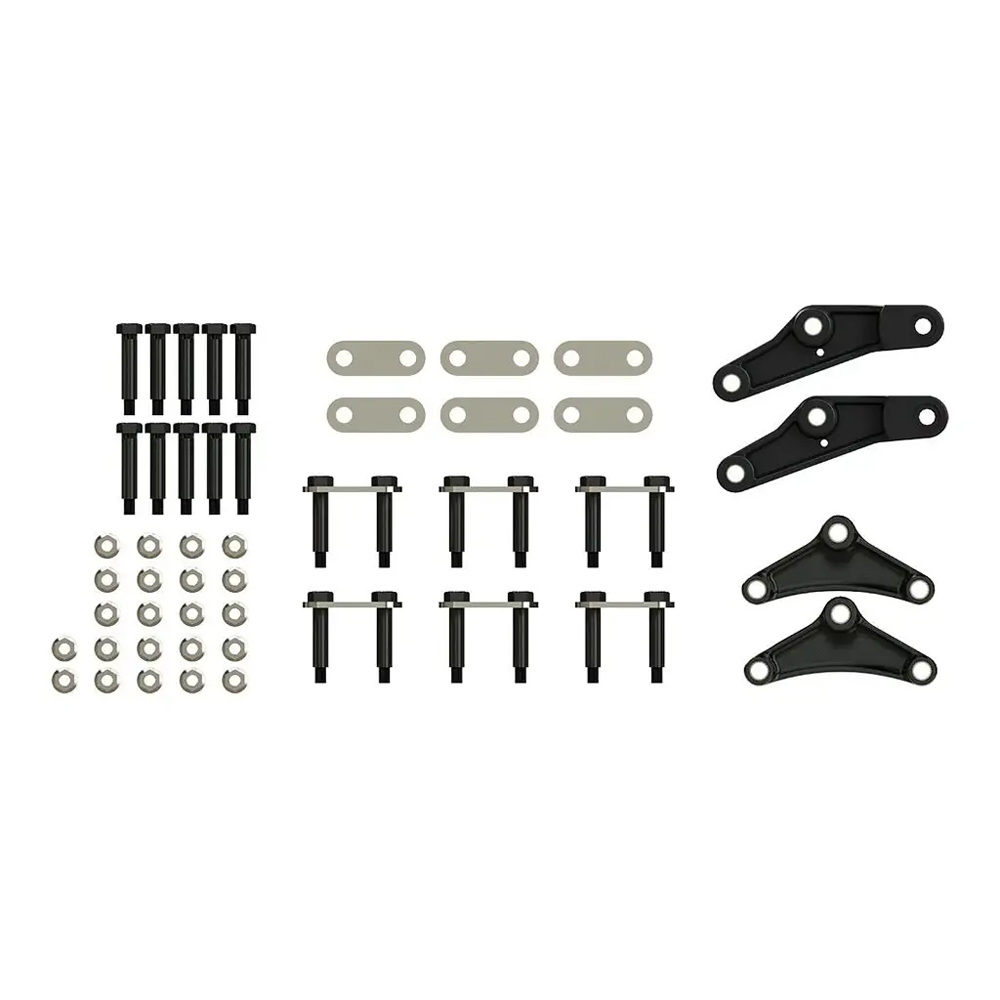

• QTY (1): Triple Axle AP Kit with Standard Equalizer and Standard Bolts
  • Replacement triple axle AP kit
  • Standard equalizers and bolts
  • Includes shackle links and mounting hardware

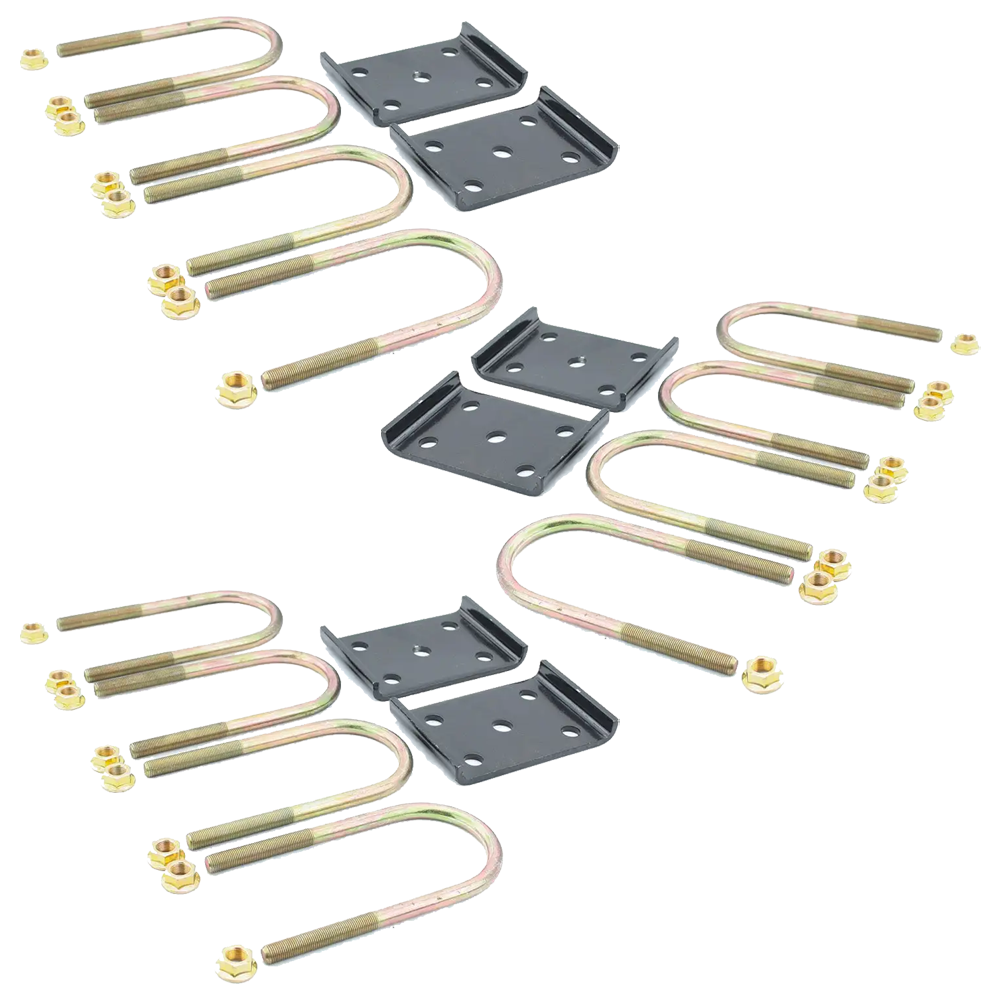

• QTY (3): Lippert Axle Mounting Kit – 3" Tube
  • Replacement axle mounting kit
  • U-bolt design for 3" axle tubes
  • Installs like your original equipment
• QTY (2): Front Trailer Axle Hanger – 4-5/16" x 2-3/16", 2,200-8,000-lb. Axle Rating
  • Welded to chassis for mounting axles and components
  • Length: 4-5/16", Width: 2-3/16", Hole size: 9/16"
  • Distance to hole: 3-9/16" on-center
  • Axle capacity: 2,200 lbs.
• QTY (4): Center Trailer Axle Hanger – 4-1/2" x 3-1/8", 2,200-8,000-lb. Axle Rating
  • Location: Center
  • Length: 4-1/2", Width: 3-1/8", Hole size: 7/8"
  • Distance to hole: 3-5/16"
  • Axle capacity: 2,200 – 8,000 lbs.
• QTY (2): Rear Trailer Axle Hanger – 6" x 2-1/4", 2,200-8,000-lb. Axle Rating
  • Location: Rear
  • Length: 6", Width: 2-1/4", Hole size: 5/16"
  • Distance to hole: 4"
  • Axle capacity: 2,200 – 8,000 lbs.

Always verify fitment with your trailer’s original equipment manufacturer and perform routine checks to ensure safe towing. Proper maintenance of your suspension system will keep your trailer operating smoothly and reliably.
