Lippert Triple Axle Suspension Kit � 3" Axle Tube � 33" Spacing � 1,000 lb Leaf Springs (20-3/8" Unloaded) � Standard Equalizer � Hangers & Hardware � Dexter, Al-Ko, Rockwell Compatible

Lippert Triple Axle Suspension Kit – 3" Axle Tube – 33" Spacing – 1,000 lb Leaf Springs

Get everything you need for a complete triple-axle trailer suspension upgrade. This kit includes 1,000 lb leaf springs with a 20-3/8" unloaded eye-to-eye length, standard equalizers, hangers, and all necessary hardware. Engineered for seamless installation, each component helps ensure a smooth, stable ride — perfect for Dexter, Al-Ko, Rockwell, or other quality axle brands.

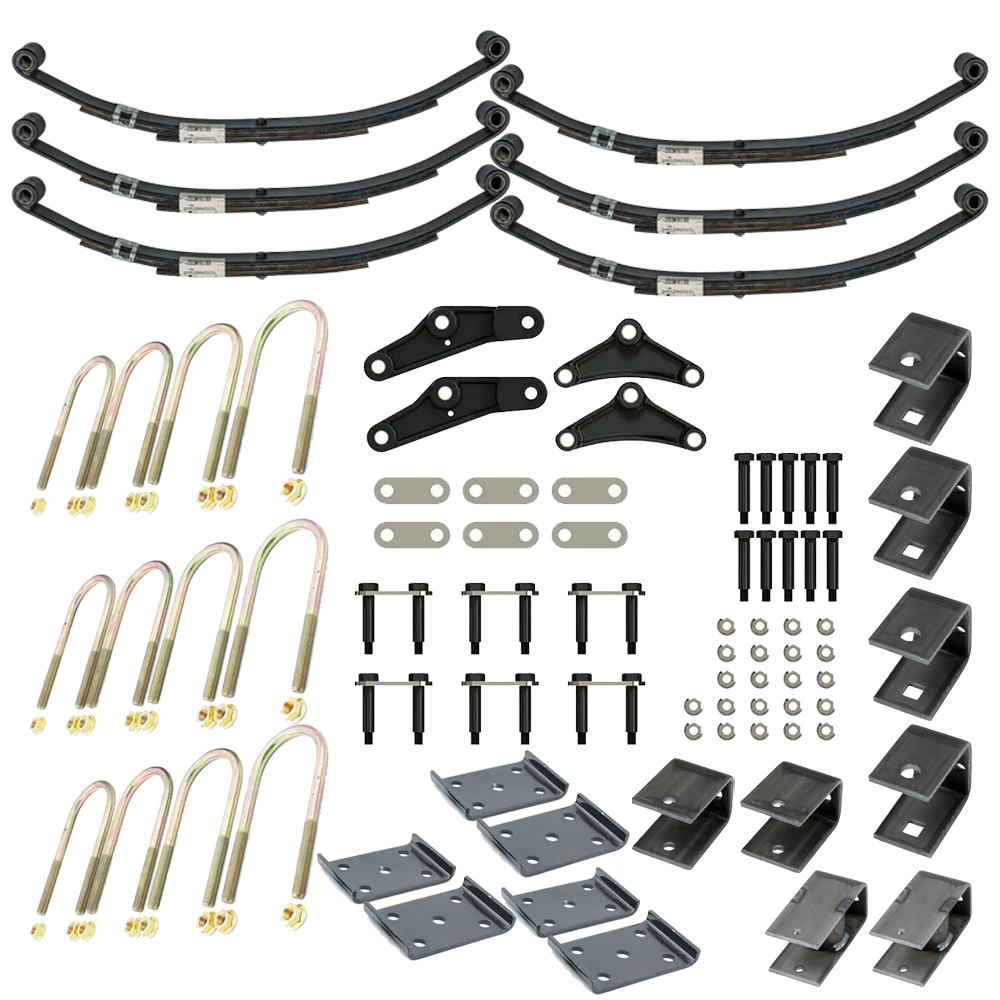

Bundle Contents:

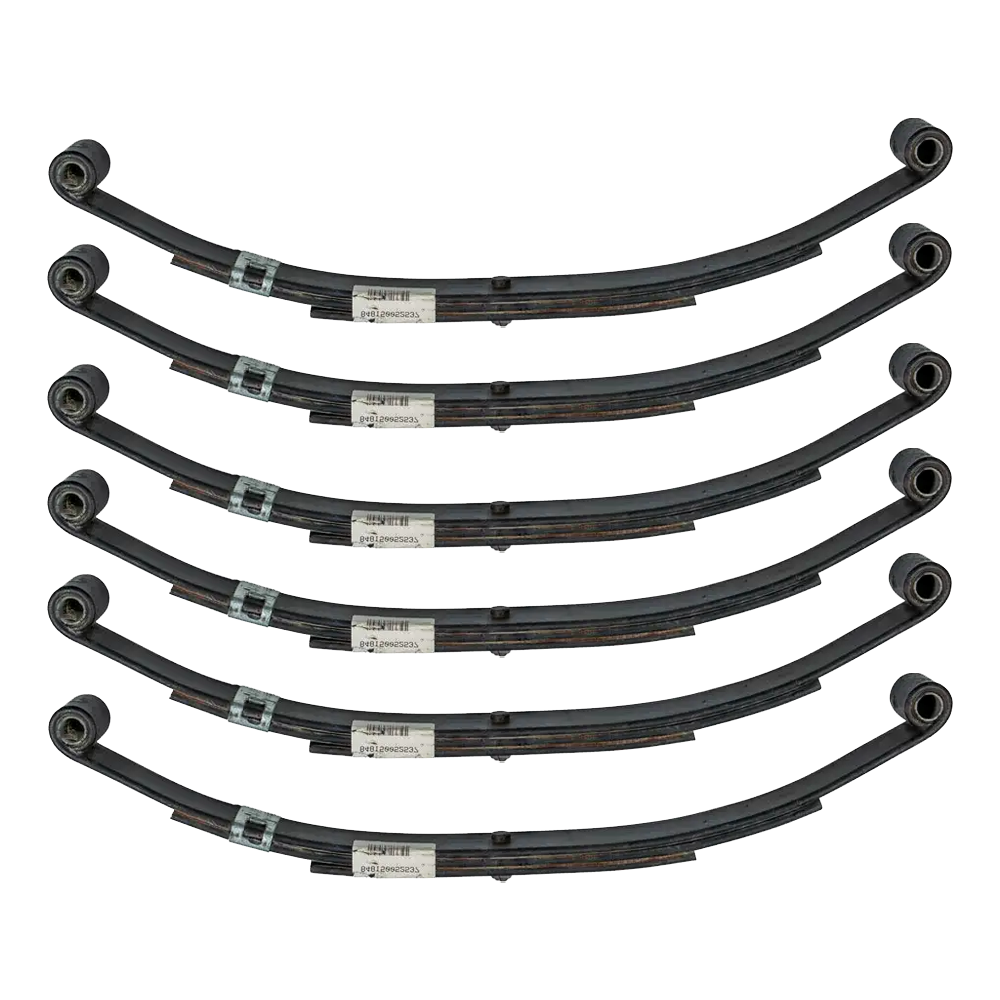

• QTY (6): 1,000 lb Leaf Springs
  • 20-3/8" unloaded eye-to-eye, 21" loaded length
  • 3 leaves, 1-3/4" width
  • 2-7/8" arch height unloaded, 2-1/8" arch height loaded
  • Spring eye diameter: 9/16"
  • Direct replacement for original equipment

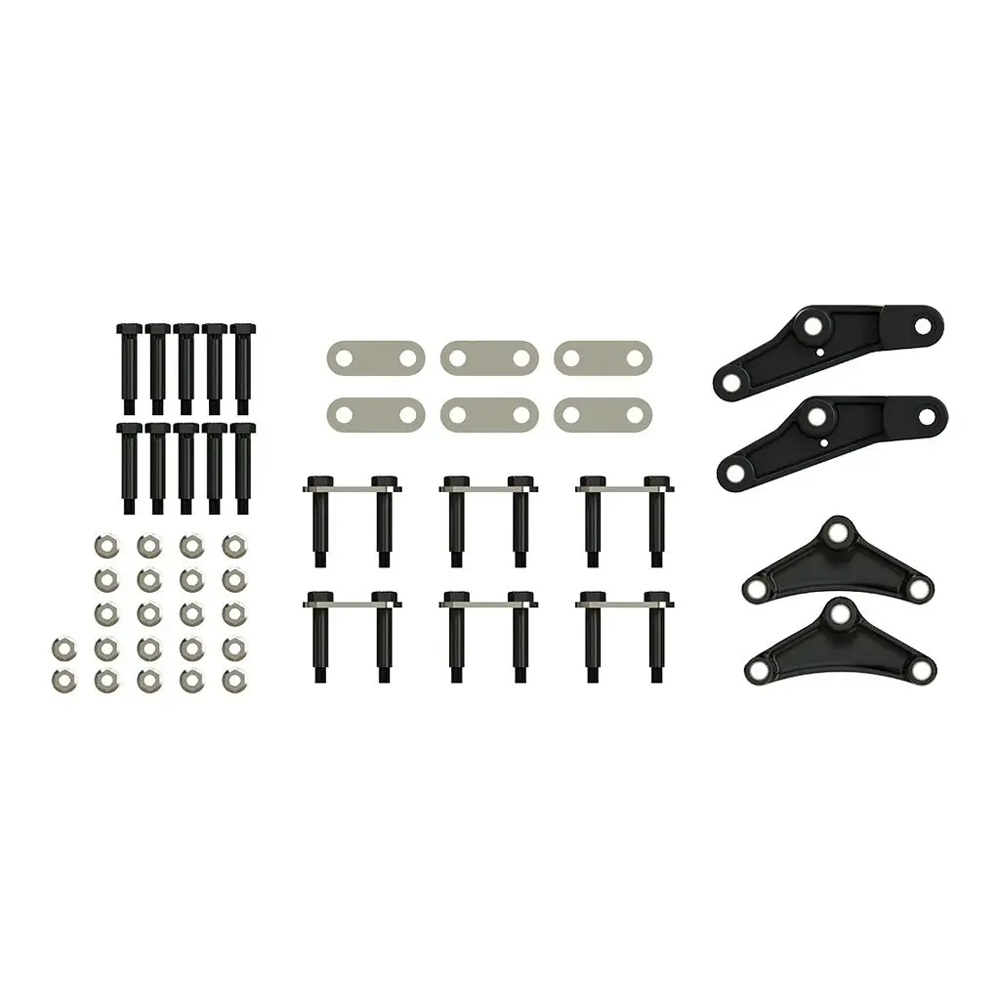

• QTY (1): Triple Axle AP Kit with Standard Equalizer and Bolts
  • Standard equalizer for consistent load distribution
  • Includes shackle links and mounting hardware
  • Installs just like your factory setup

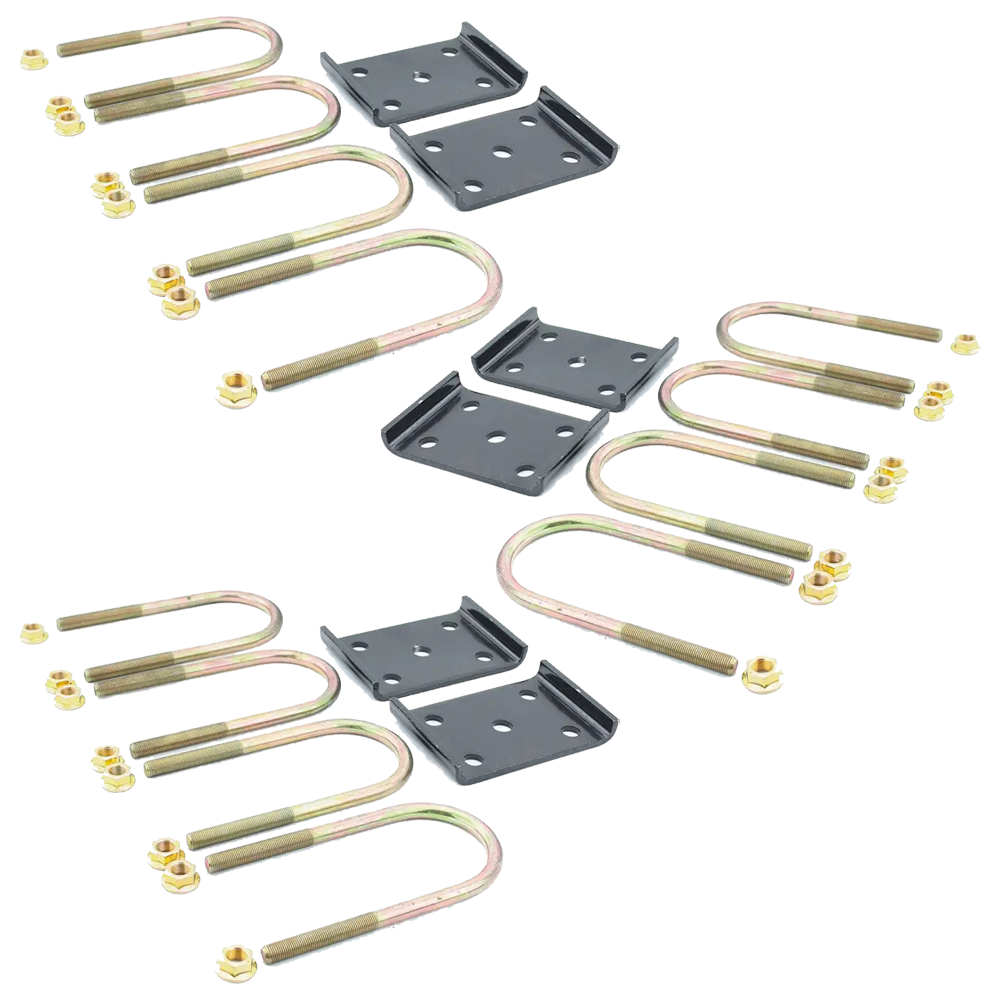

• QTY (3): Lippert Axle Mounting Kit – 3" Tube
  • U-bolt design for secure axle mounting
  • Exact-match replacement for 3" axle tubes
  • Durable construction for long-lasting performance
• QTY (2): Front Trailer Axle Hanger – 4-5/16" x 2-3/16"
  • Length: 4-5/16", Width: 2-3/16"
  • Hole size: 9/16"
  • Distance to hole: 3-9/16" (on-center)
  • Welds to chassis for secure front hanger placement
• QTY (4): Center Trailer Axle Hanger – 4-1/2" x 3-1/8"
  • Length: 4-1/2", Width: 3-1/8"
  • Hole size: 7/8"
  • Distance to hole: 3-5/16" (on-center)
  • Works with axles rated 2,200 – 8,000 lbs.
• QTY (2): Rear Trailer Axle Hanger – 6" x 2-1/4"
  • Length: 6", Width: 2-1/4"
  • Hole size: 5/16"
  • Distance to hole: 4"
  • Designed for secure rear hanger mounting

For optimal performance, always verify your existing OEM specifications before replacing parts. Regular inspections and proper maintenance will help ensure a smooth and safe towing experience.
