Lippert Triple Axle Suspension Kit, 3" Axle Tube, 33" Spacing, 1,750 lb Capacity (23-3/16" Unloaded), Standard Equalizer, Includes Hangers & Hardware – Dexter, Alko, Rockwell

This complete Lippert triple axle suspension kit is designed for 3" axle tubes with 33" axle spacing. Featuring 1,750 lb capacity leaf springs (23-3/16" unloaded eye-to-eye length) and a standard equalizer, it’s the perfect solution to refresh or replace worn suspension components on Dexter, Alko, Rockwell, and other popular trailer setups.

Bundle Contents:

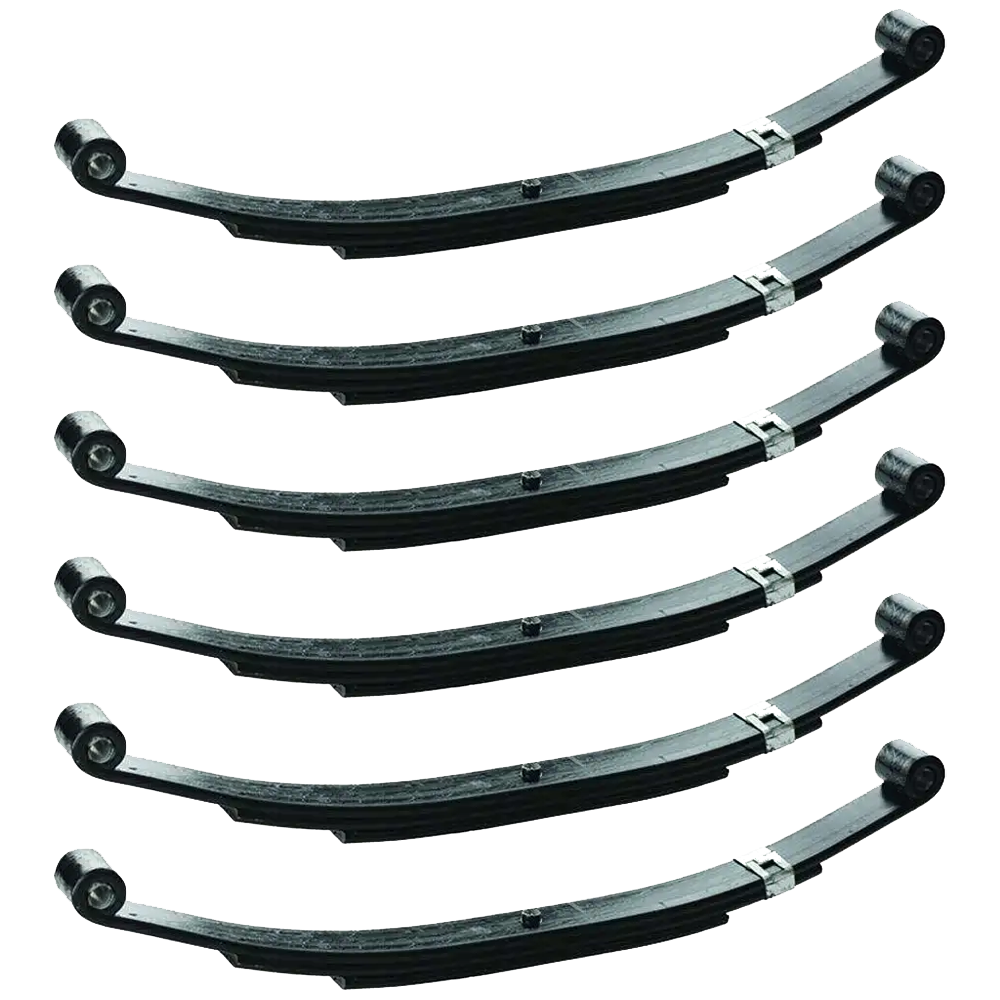

• QTY (6): Replacement Double-Eye Leaf Spring – 1,750 lb Capacity
  • Replacement leaf spring for RV trailer suspension
  • 1,750 lb capacity per spring, 1-3/4" width
  • Unloaded eye-to-eye length: 23-3/16"
  • Loaded eye-to-eye length: 24"
  • Arch height unloaded: 3-1/2" | loaded: 2-1/2"
  • Spring eye diameter: 9/16"

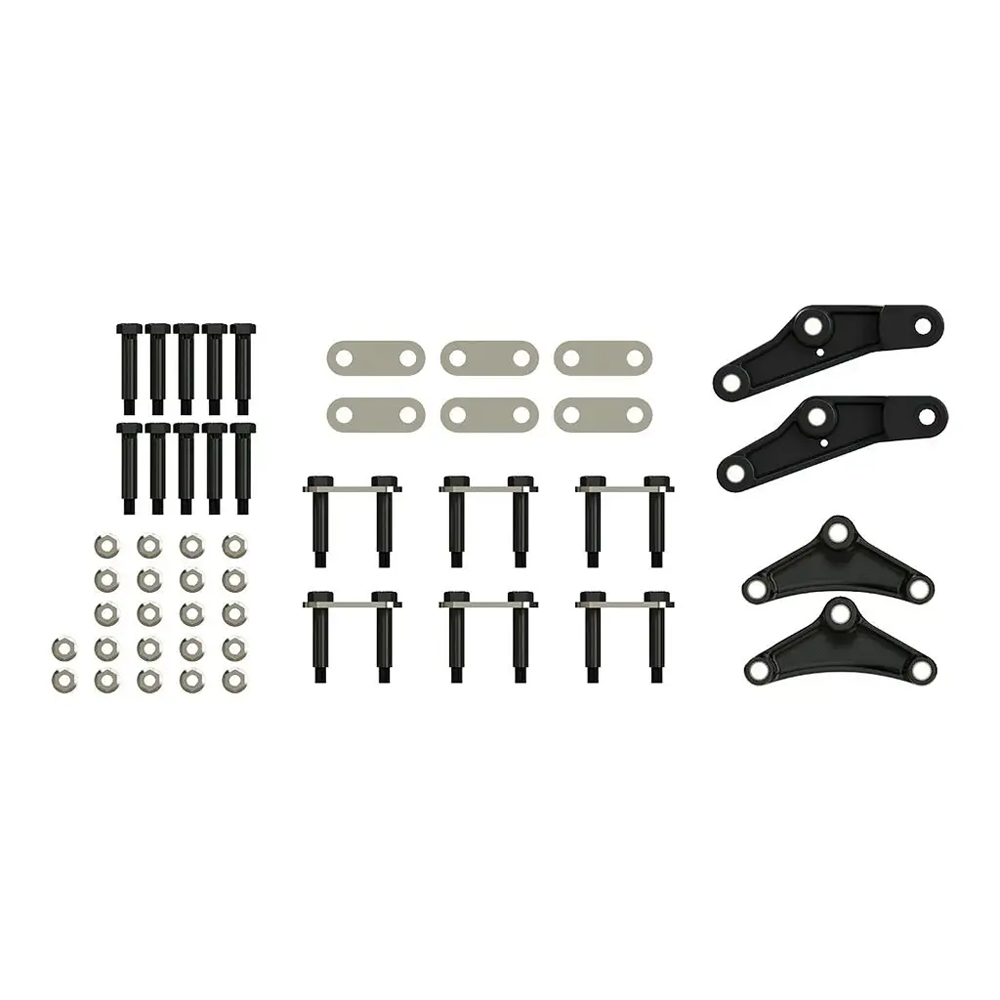

• QTY (1): Triple Axle AP Kit with Standard Equalizer & Standard Bolts
  • Replacement triple axle AP kit
  • Standard bolts and hardware included
  • Features shackle links, mounting hardware, and standard equalizers

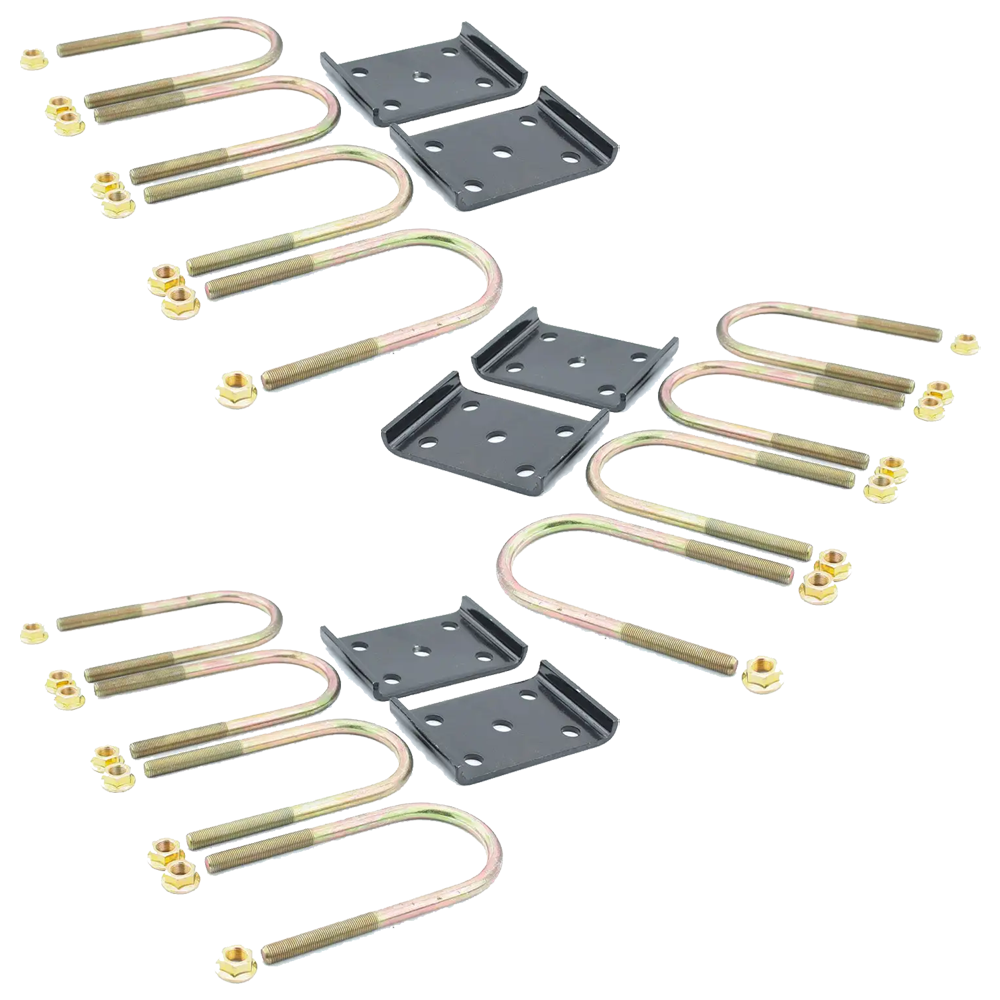

• QTY (3): Lippert Axle Mounting Kit – 3" Tube
  • Replacement axle mounting kit for 3" axle tubes
  • U-bolt design with direct-fit installation
  • Helps secure the axle to leaf springs
• QTY (2): Front Trailer Axle Hanger – 4-5/16" x 2-3/16", 2,200–8,000 lb Rating
  • Length: 4-5/16", Width: 2-3/16", Hole size: 9/16"
  • Distance to hole (on-center): 3-9/16"
  • Welded to chassis to allow mounting of axles and axle components
• QTY (4): Center Trailer Axle Hanger – 4-1/2" x 3-1/8", 2,200–8,000 lb Rating
  • Length: 4-1/2", Width: 3-1/8", Hole size: 7/8"
  • Distance to hole: 3-5/16"
  • Suitable for center hanger applications
• QTY (2): Rear Trailer Axle Hanger – 6" x 2-1/4", 2,200–8,000 lb Rating
  • Length: 6", Width: 2-1/4", Hole size: 5/16"
  • To hole: 4"
  • Mounts at the rear-most position for triple axle assemblies

Before installing, always verify your trailer’s original equipment labels and follow recommended maintenance schedules to ensure safe and reliable towing. This kit offers an ideal solution for restoring your suspension system to like-new performance.
