Lippert Triple Axle Suspension Kit – 3" Axle Tube, 33" Spacing, 2,000‑lb (23‑1/8" Unloaded, 3‑Leaf) Springs w/ Standard Equalizer, Hangers & Hardware

Upgrade your trailer’s suspension with this comprehensive Lippert Triple Axle Kit. Designed to accommodate a 3" axle tube and 33" axle spacing, this bundle features #125799 leaf springs with a 23‑1/8" unloaded length (2,000‑lb capacity each, 3 leaves per spring) for a smoother, more stable ride. The standard equalizer, heavy‑duty hangers, and all required hardware are included for quick, precise installation. Compatible with Dexter, Alko, Rockwell, and Quality Axles.

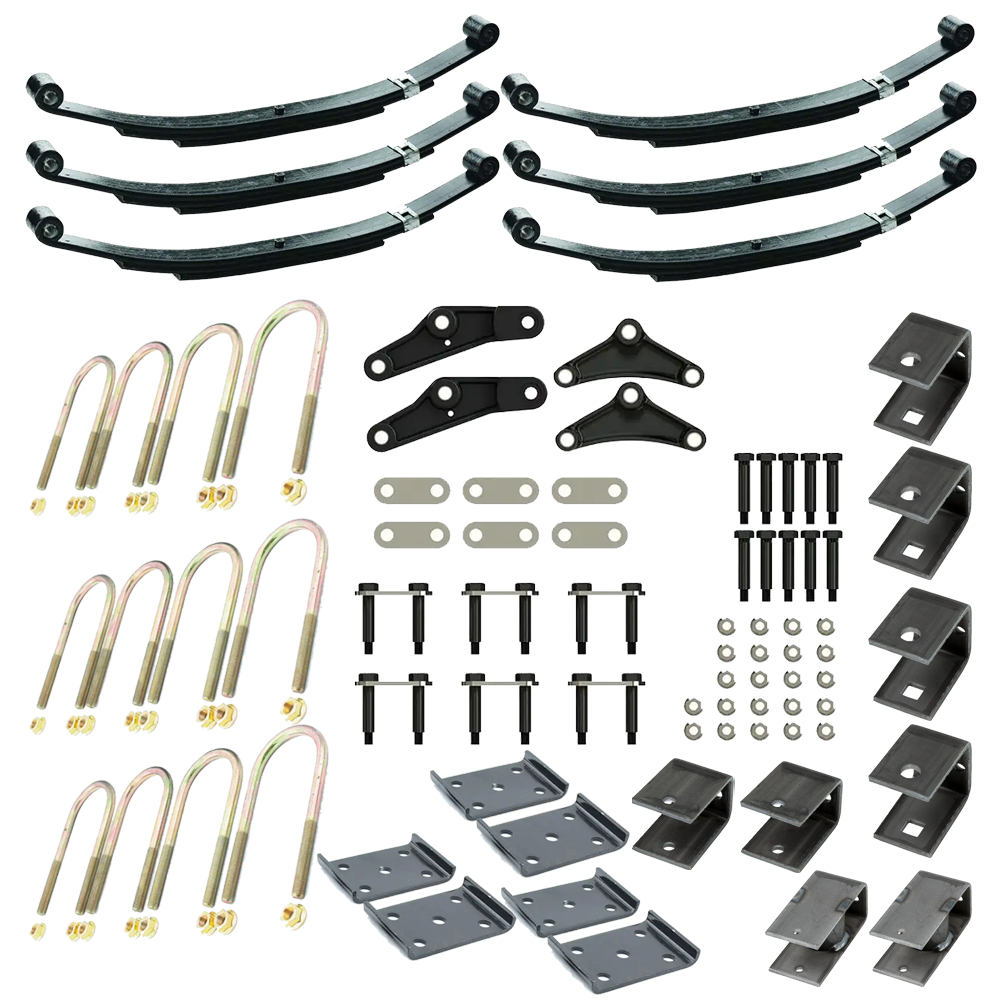

Bundle Contents:

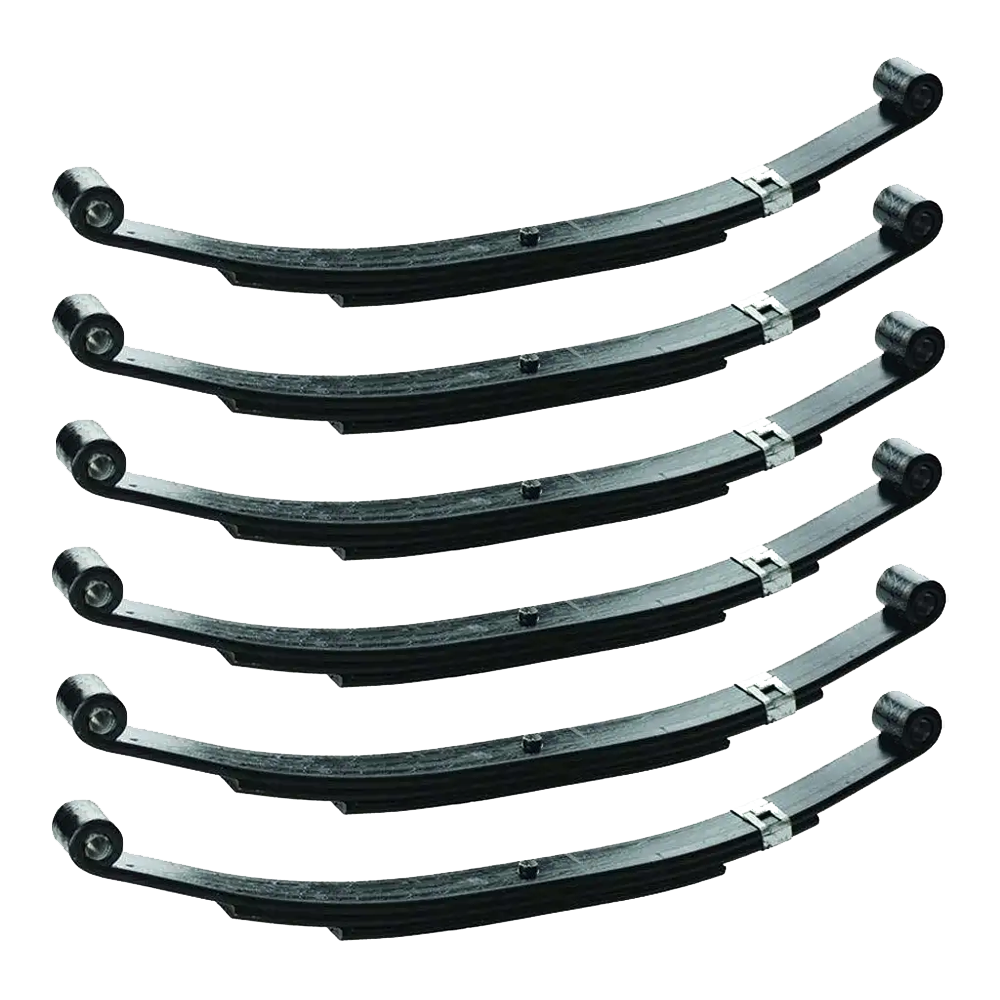

  • QTY (6): Replacement Double‑Eye Leaf Spring – 23‑1/8" Unloaded, 2,000‑lb Capacity, 3 Leaves
    • 3 leaves per spring
    • 1‑3/4" wide
    • 24" loaded length
    • Arch height: 3‑1/2" unloaded, 2‑1/2" loaded
    • 9/16" spring eye diameter

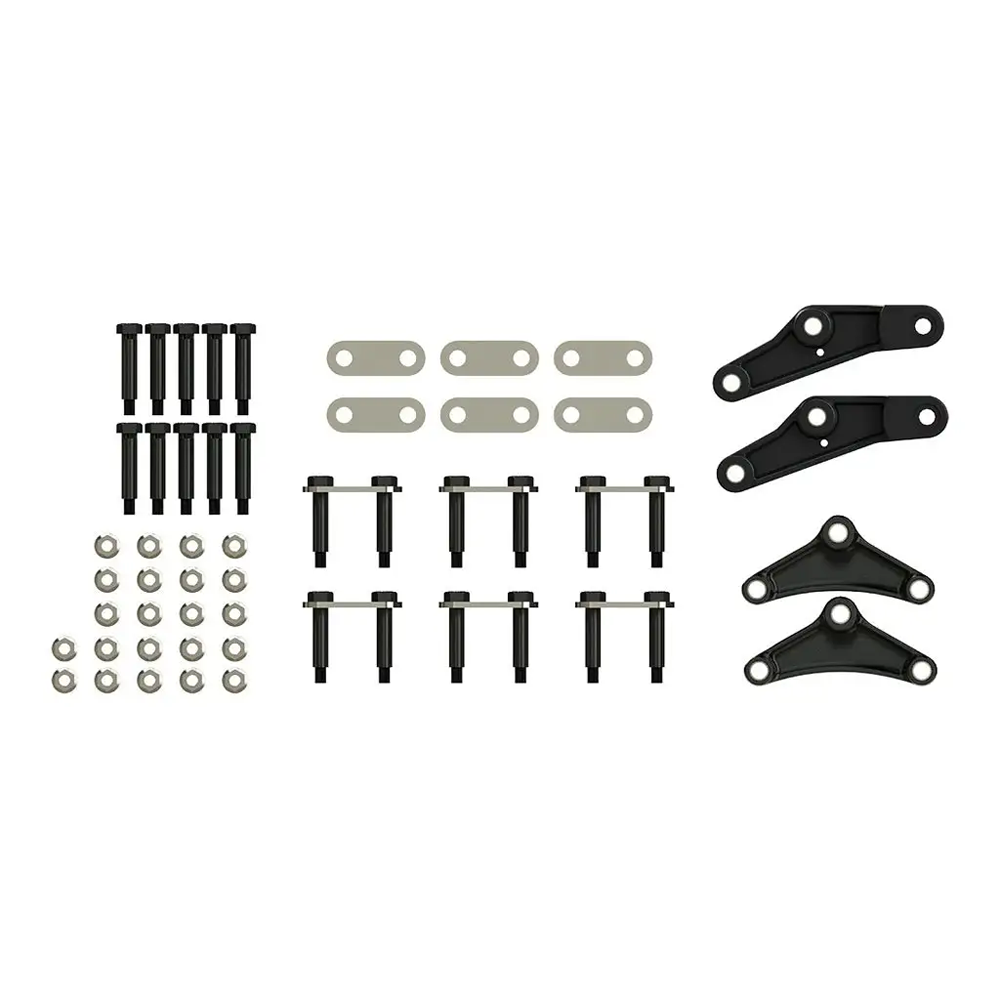

  • QTY (1): Triple Axle AP Kit with Standard Equalizer and Standard Bolts
    • Shackle links and mounting hardware
    • Standard equalizers
    • Exact‑match replacement for easy installation

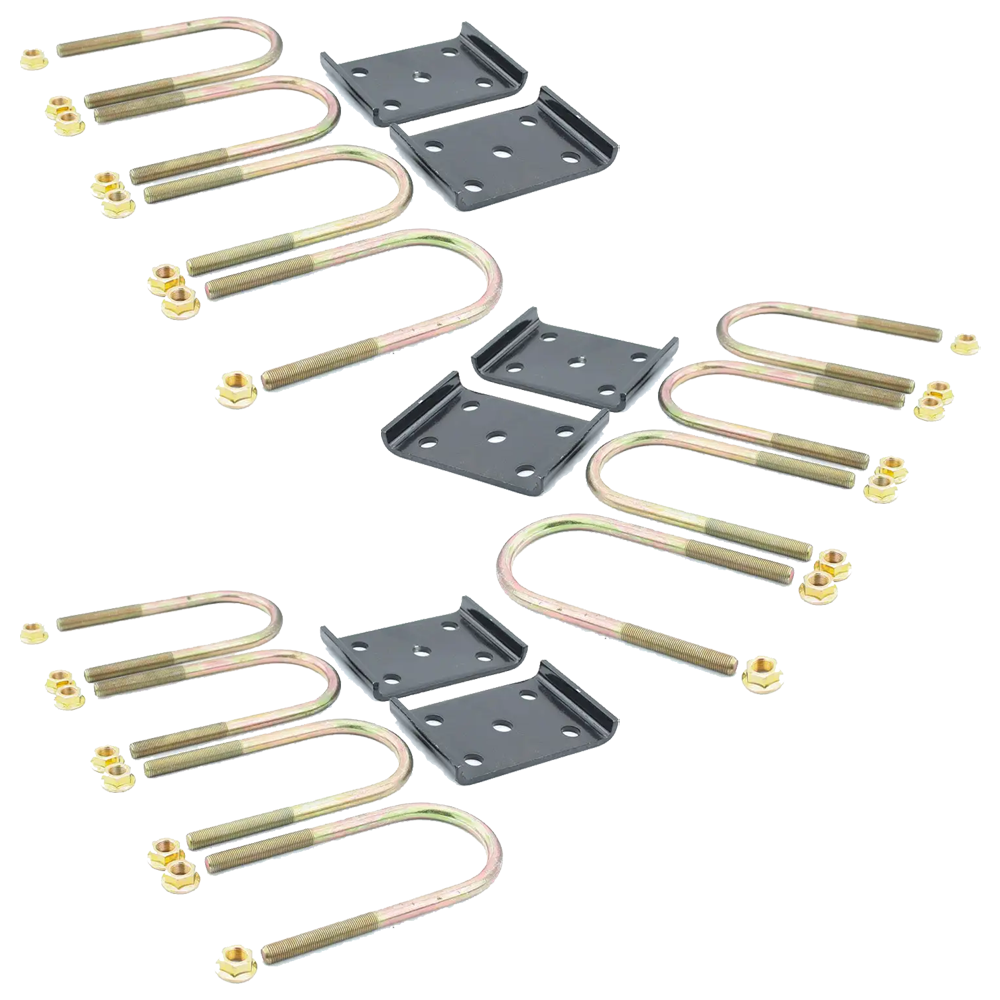

  • QTY (3): Lippert Axle Mounting Kit – 3" Tube
    • U‑bolt design
    • Direct replacement for existing hardware
    • Installs just like the original equipment
  • QTY (2): Front Trailer Axle Hanger – 4‑5/16" x 2‑3/16"
    • Axle capacity: 2,200‑8,000 lbs.
    • Distance to hole: 3‑9/16" on‑center
    • Length: 4‑5/16"
    • Width: 2‑3/16"
    • Hole size: 9/16"
  • QTY (4): Center Trailer Axle Hanger – 4‑1/2" x 3‑1/8"
    • Axle capacity: 2,200‑8,000 lbs.
    • Distance to hole: 3‑5/16" on‑center
    • Length: 4‑1/2"
    • Width: 3‑1/8"
    • Hole size: 7/8"
  • QTY (2): Rear Trailer Axle Hanger – 6" x 2‑1/4"
    • Axle capacity: 2,200‑8,000 lbs.
    • Distance to hole: 4" on‑center
    • Length: 6"
    • Width: 2‑1/4"
    • Hole size: 5/16"

Before installation, confirm axle spacing, spring length, and hanger measurements. Regular maintenance ensures optimal performance and safety for your trailer’s suspension system.

Specifications:
Kit Type Complete Triple Axle Suspension Kit
Axle Rating 2,000 lbs. per spring (triple axle)
Leaf Spring Capacity 2,000 lbs. each
Number of Leaves per Spring 3
Leaf Spring Width 1‑3/4"
Unloaded Eye‑to‑Eye Length 23‑1/8"
Loaded Eye‑to‑Eye Length 24"
Arch Height Unloaded 3‑1/2"
Arch Height Loaded 2‑1/2"
Spring Eye Diameter 9/16"
Axle Tube Diameter 3"
Equalizer Type Standard Equalizer
Axle Configuration Triple Axle
