Lippert Triple Axle Suspension Kit � 3" Axle Tube, 35" Spacing, 1,400-lb Leaf Springs (20-1/2" Unloaded), Long Equalizers, Hangers & Hardware � Dexter, Alko, Rockwell, Quality Axles

Lippert Triple Axle Suspension Kit – 3" Axle Tube, 35" Spacing, 1,400-lb Leaf Springs (20-1/2" Unloaded)

Upgrade your triple axle trailer with this Lippert suspension bundle designed for a 3" axle tube and 35" axle spacing. Featuring 1,400-lb capacity leaf springs (20-1/2" unloaded eye-to-eye) and long equalizers, plus front, center, and rear hangers with all the needed hardware, this kit delivers a smoother, more reliable ride. Ideal for Dexter, Alko, Rockwell, and other quality axle setups.

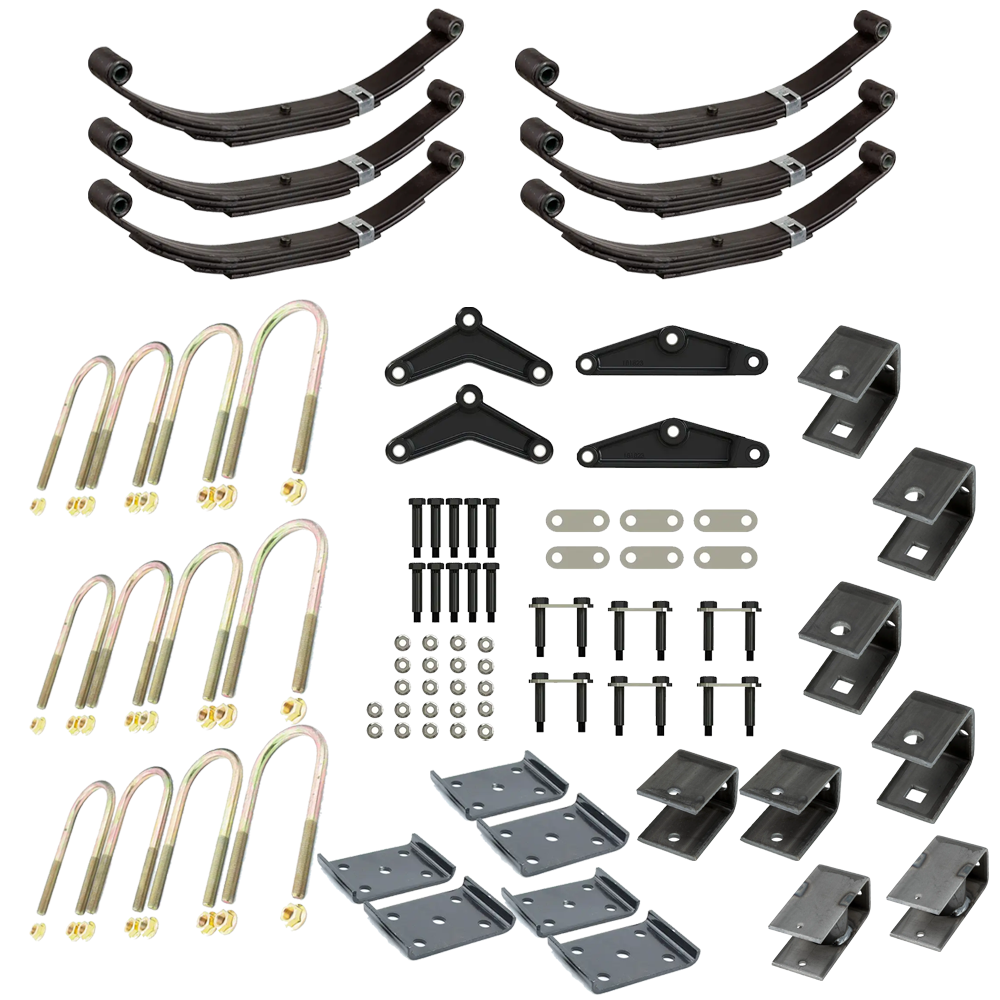

Bundle Contents:

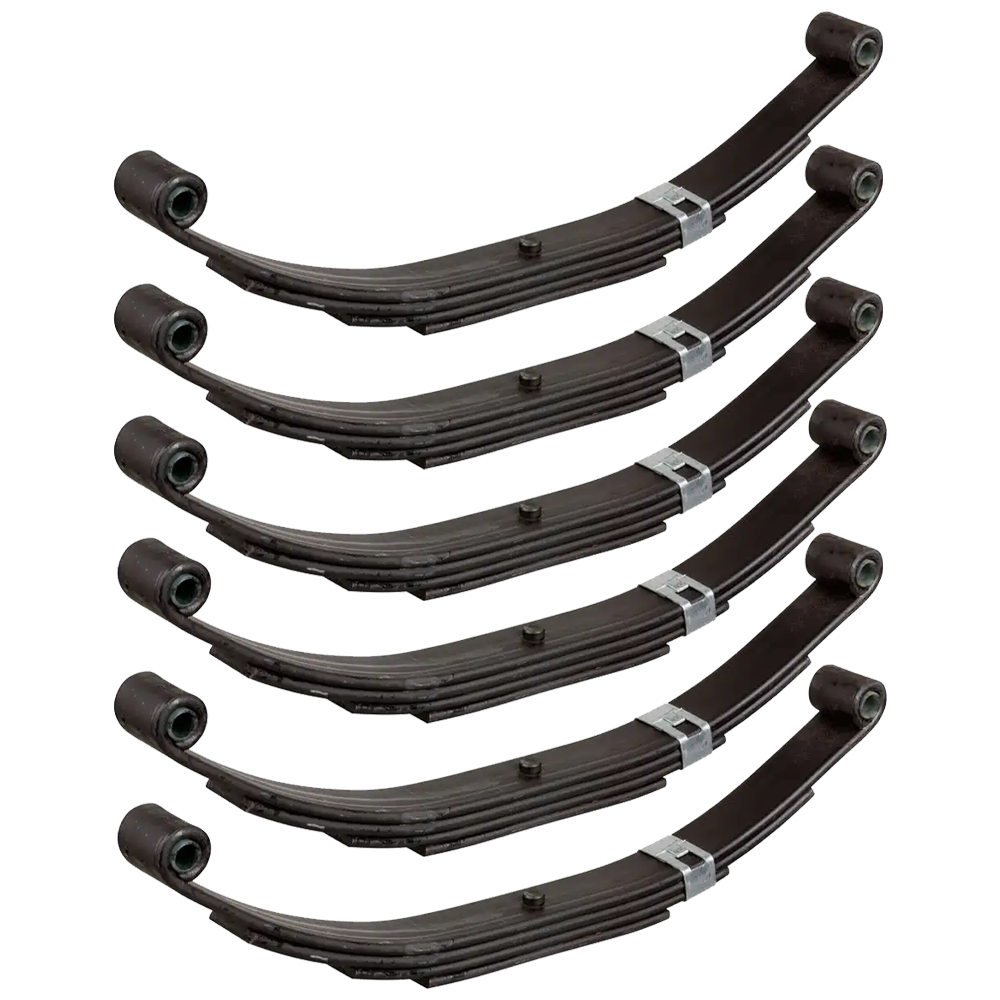

• QTY (6): Replacement Leaf Spring – 1,400 lbs., 4 leaves, 1-3/4" width
  • 20-1/2" eye-to-eye unloaded, 21" loaded length
  • 3-1/2" arch height unloaded, 2-3/8" loaded
  • 9/16" spring eye diameter
  • Please verify original specs before ordering
• QTY (1): Triple Axle AP Kit with Long Equalizer & Standard Bolts
  • Includes shackle links, mounting hardware, and long equalizers
  • Designed as a direct replacement for your original suspension

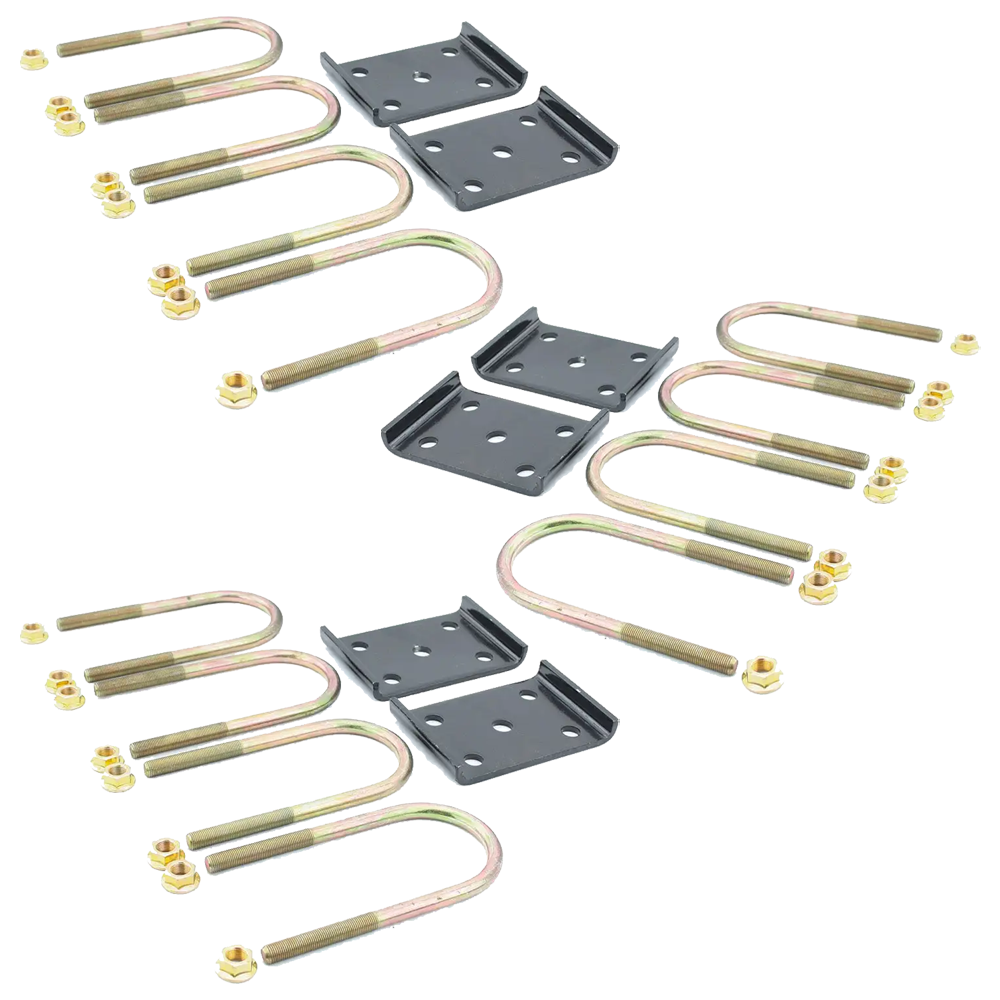

• QTY (3): Lippert Axle Mounting Kit – 3" Tube
  • U-bolt style axle mounting components
  • Exact-match replacement to fit your 3" axle tubes
  • Installs like original hardware
• QTY (2): Front Trailer Axle Hanger
  • 4-5/16" length, 2-3/16" width
  • Distance to hole: 3-9/16" on-center
  • Hole size: 9/16"
  • Axle rating: 2,200-8,000 lbs.
• QTY (4): Center Trailer Axle Hanger
  • 4-1/2" length, 3-1/8" width
  • Distance to hole: 3-5/16"
  • Hole size: 7/8"
  • Axle rating: 2,200-8,000 lbs.
• QTY (2): Rear Trailer Axle Hanger
  • 6" length, 2-1/4" width
  • Distance to hole: 4"
  • Hole size: 5/16"
  • Axle rating: 2,200-8,000 lbs.

Remember to confirm all dimensions and ratings match your trailer’s original equipment. Regular inspection and maintenance of your suspension system will help extend the life of your trailer and ensure safer towing.
