Lippert Triple Axle Suspension Kit � 3" Axle Tube, 35" Spacing, 2,000-lb (23-1/8") Leaf Springs, Long Equalizer, Hangers & Hardware � Dexter/Alko/Rockwell Compatible

Lippert Triple Axle Suspension Kit – 3" Axle Tube, 35" Spacing, 2,000-lb (23-1/8") Springs

Restore or upgrade your trailer’s suspension with this comprehensive triple axle kit from Lippert, compatible with Dexter, Alko, Rockwell, and Quality Axles. Featuring 2,000-lb leaf springs (unloaded length of 23-1/8"), long equalizers, plus front, center, and rear hangers, this bundle provides the reliable hardware you need for secure and stable towing. Designed for 3" axle tubes with a 35" spacing, it’s the perfect solution for triple axle trailers looking for enhanced performance and durability.

Bundle Contents:

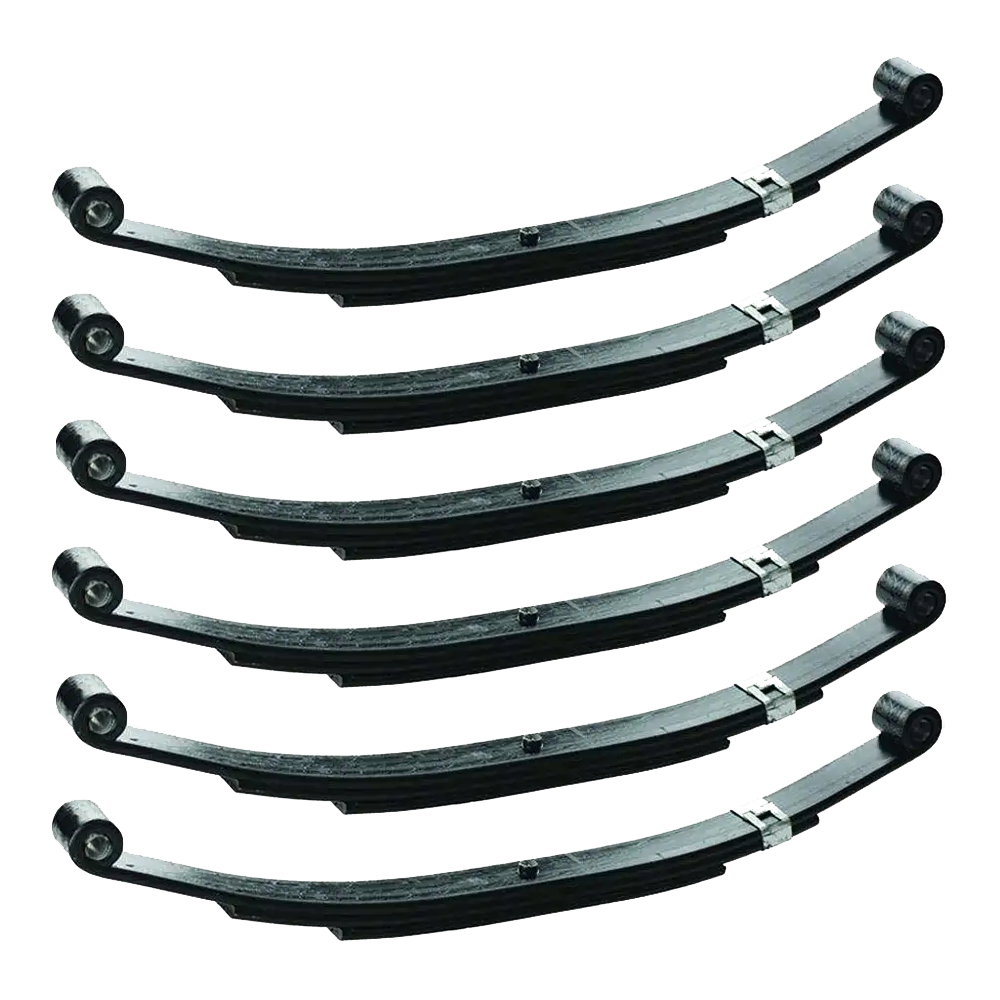

• QTY (6): Replacement Double-Eye Leaf Spring – 2,000-lb Capacity, 23-1/8" Unloaded
  • 2,000-lb leaf springs (1-3/4" wide, 3 leaves)
  • 23-1/8" unloaded eye-to-eye, 24" loaded length
  • Arch height: 3-1/2" (unloaded), 2-1/2" (loaded)
  • 9/16" eye diameter
• QTY (1): Triple Axle AP Kit with Long Equalizer and Standard Bolts
  • Complete replacement AP kit for triple axle configurations
  • Includes shackle links, standard bolts, mounting hardware
  • Long equalizers for improved weight distribution
  • Installs like your original equipment

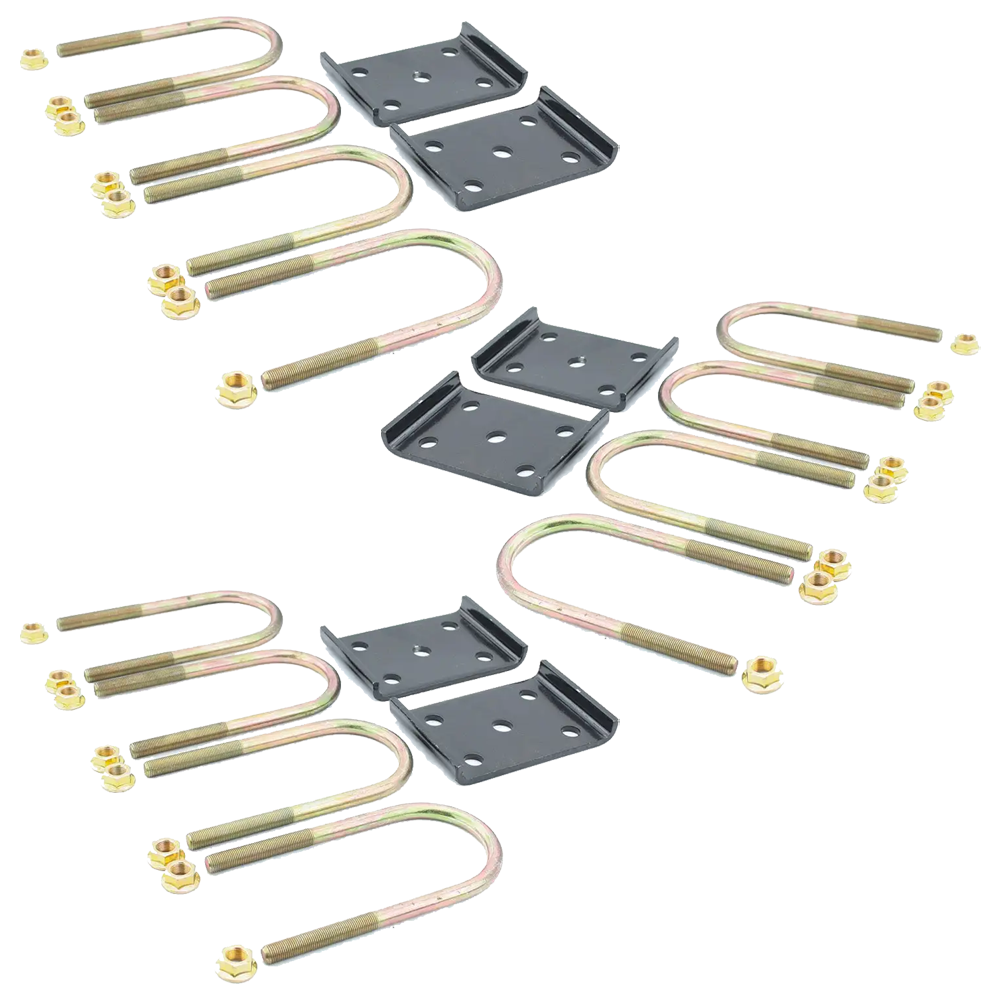

• QTY (3): Lippert Axle Mounting Kit – 3" Tube
  • Secure U-bolt design for 3" axle tubes
  • Exact-match replacement for worn or damaged hardware
  • Helps ensure proper axle alignment and stability
  • Consult your original hardware before purchasing
• QTY (2): Front Trailer Axle Hanger – 4-5/16" x 2-3/16"
  • Axle capacity range: 2,200-8,000 lbs.
  • Length: 4-5/16", Width: 2-3/16", Hole size: 9/16"
  • Distance to hole: 3-9/16" on-center
  • Welds to chassis for stable front mounting
• QTY (4): Center Trailer Axle Hanger – 4-1/2" x 3-1/8"
  • Axle capacity range: 2,200-8,000 lbs.
  • Length: 4-1/2", Width: 3-1/8", Hole size: 7/8"
  • Distance to hole: 3-5/16" on-center
  • Ensures correct center axle placement and alignment
• QTY (2): Rear Trailer Axle Hanger – 6" x 2-1/4"
  • Axle capacity range: 2,200-8,000 lbs.
  • Length: 6", Width: 2-1/4", Hole size: 5/16"
  • Distance to hole: 4" on-center
  • Welds to chassis for secure rear axle support

Always verify your trailer’s original equipment specifications before installing new suspension components. Regular inspections and maintenance will help extend the life of your axles, leaf springs, and hangers.
