Lippert Triple Axle Suspension Kit � 3" Axle Tube � 35" Spacing � 2,000 lb Leaf (25-1/4" Unloaded) � Long Equalizers, Hangers & Hardware � Dexter/Alko/Rockwell Compatible

Lippert Triple Axle Suspension Kit – 3" Axle Tube – 35" Spacing – 2,000 lb Leaf (25-1/4" Unloaded) – Long Equalizers, Hangers & Hardware

Enhance your triple-axle trailer setup with this complete Lippert suspension kit, designed for 3" axle tubes and 35" axle spacing. It features 2,000 lb-rated leaf springs (25-1/4" unloaded eye-to-eye length), long equalizers, and all required hangers and hardware. Built Dexter/Alko/Rockwell compatible, these quality components help ensure smoother towing and proper alignment of your RV or trailer axle system.

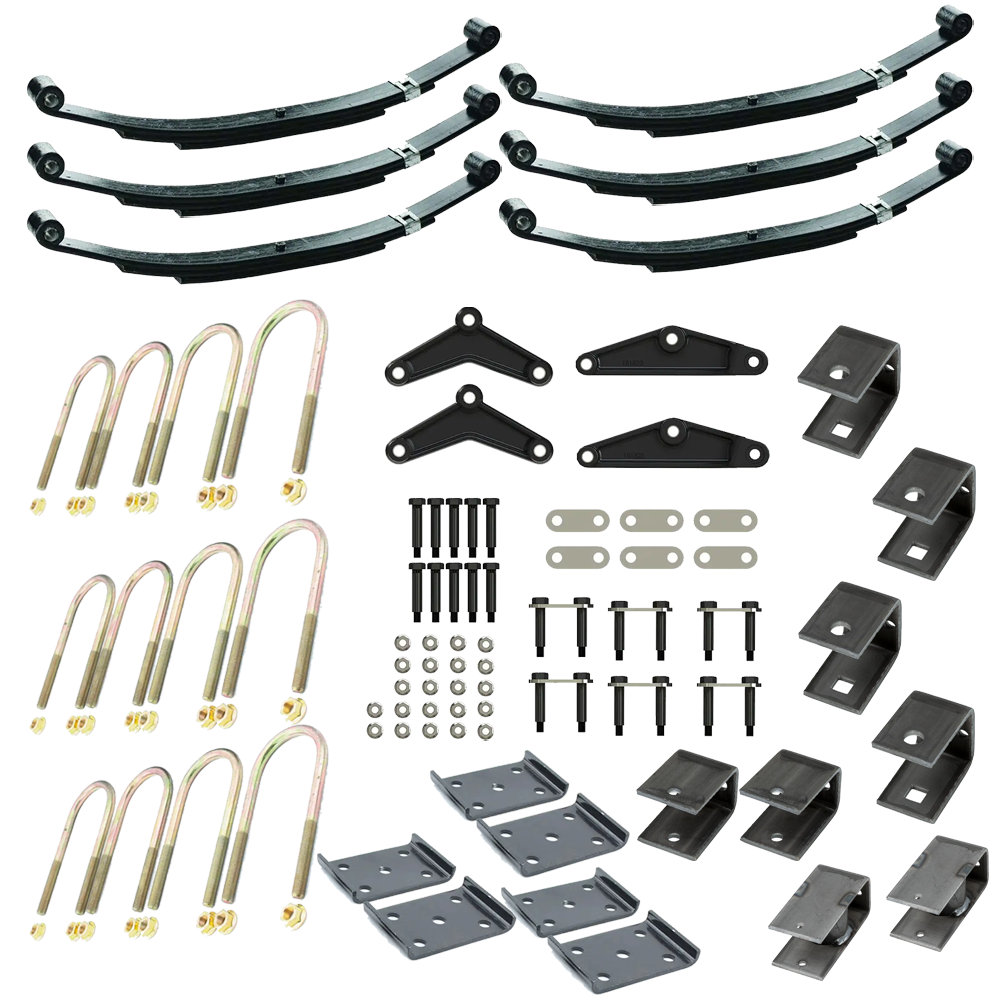

Bundle Contents:

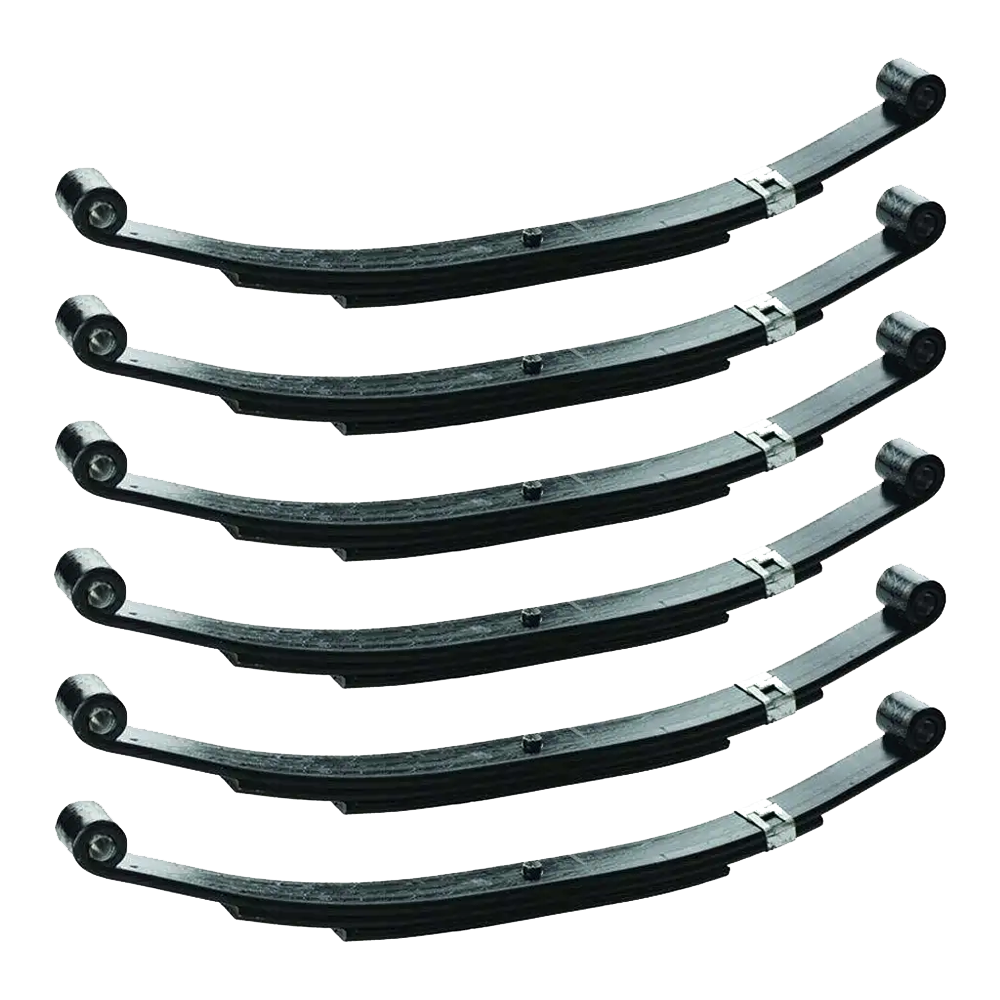

• QTY (6): Replacement Double-Eye Leaf Spring (25-1/4" Unloaded, 26" Loaded), 2,000-lb. Capacity
  • Replacement leaf spring for RV/trailer suspension systems
  • 1-3/4" wide, 3 leaves, 9/16" spring eye diameter
  • 25-1/4" unloaded eye-to-eye length (loaded length: 26")
  • Arch height: 3" (unloaded), 1-3/4" (loaded)
  • Dexter Compatible Part Number: 072-024-00
• QTY (1): Triple Axle AP Kit with Long Equalizer and Standard Bolts
  • Replacement triple axle AP kit
  • Includes shackle links, mounting hardware, long equalizers, and standard bolts
  • Installs just like your original equipment

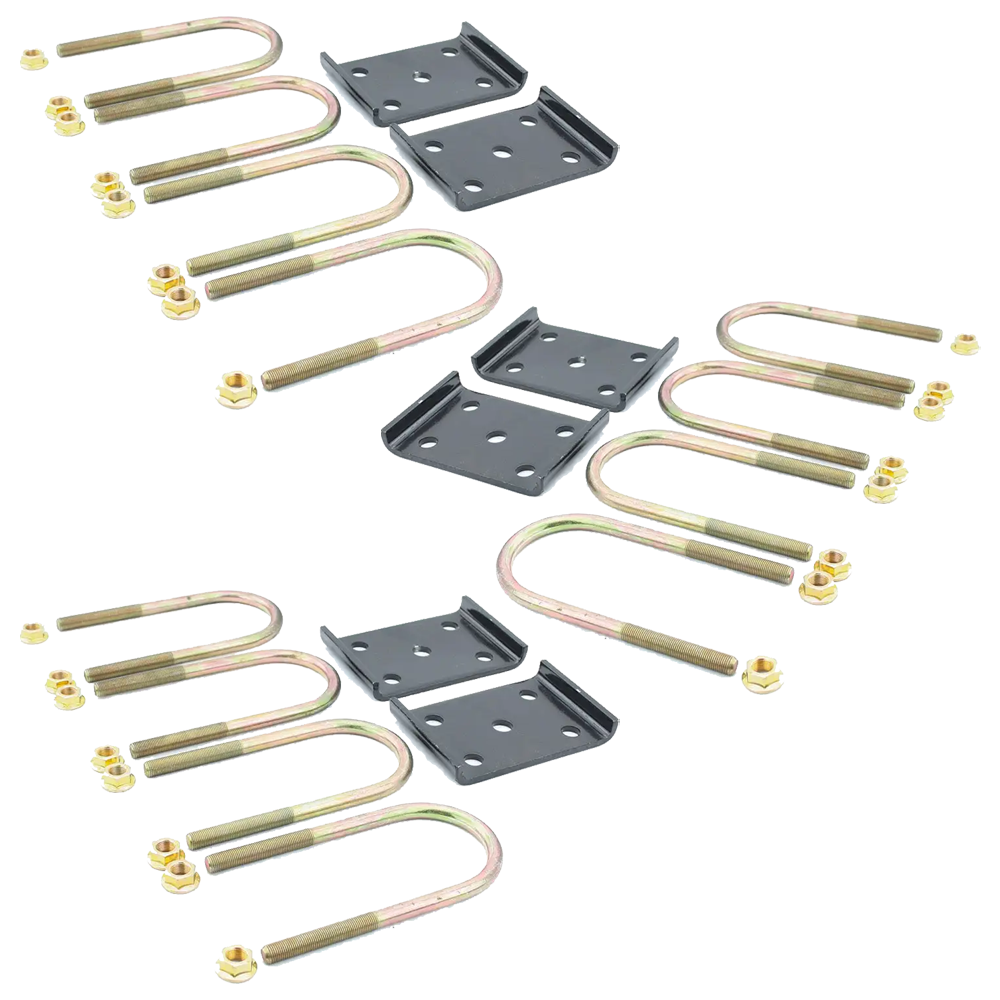

• QTY (3): Lippert Axle Mounting Kit – 3" Tube
  • Replacement axle mounting kit with U-bolt design
  • Sized for a 3" axle tube diameter
  • Installs just like your original hardware
• QTY (2): Front Trailer Axle Hanger – 4-5/16" x 2-3/16", 2,200-8,000-lb. Axle Rating
  • Welded to chassis for mounting axles and axle components
  • Length: 4-5/16", Width: 2-3/16", Distance to hole: 3-9/16" on-center
  • Hole size: 9/16"
  • Dexter Compatible Part Number: 028-001-00
• QTY (4): Center Trailer Axle Hanger – 4-1/2" x 3-1/8", 2,200-8,000-lb. Axle Rating
  • Welded to chassis for secure axle mounting
  • Length: 4-1/2", Width: 3-1/8", Distance to hole: 3-5/16"
  • Hole size: 7/8"
  • Dexter Compatible Part Number: 029-001-00
• QTY (2): Rear Trailer Axle Hanger – 6" x 2-1/4", 2,200-8,000-lb. Axle Rating
  • Welded to chassis for mounting axles and axle components
  • Length: 6", Width: 2-1/4", Distance to hole: 4"
  • Hole size: 5/16"
  • Dexter Compatible Part Number: 030-028-00

Always compare these parts to your original equipment and follow proper maintenance schedules to keep your trailer safe on the road.
