Lippert Triple Axle Suspension Kit – 3" Axle Tube, 35" Spacing, 23‑3/16" Leaf Springs

Upgrade your trailer’s suspension with this complete Lippert triple axle kit featuring 1,750-lb rated leaf springs (unloaded eye-to-eye length of 23‑3/16"). Designed for 3" axle tubes and 35" axle spacing, this bundle comes with long equalizers, hangers, and all necessary hardware. Built to fit many popular axle brands including Dexter, Alko, Rockwell, and Quality Axles, this kit offers smooth towing, reliable support, and easier maintenance.

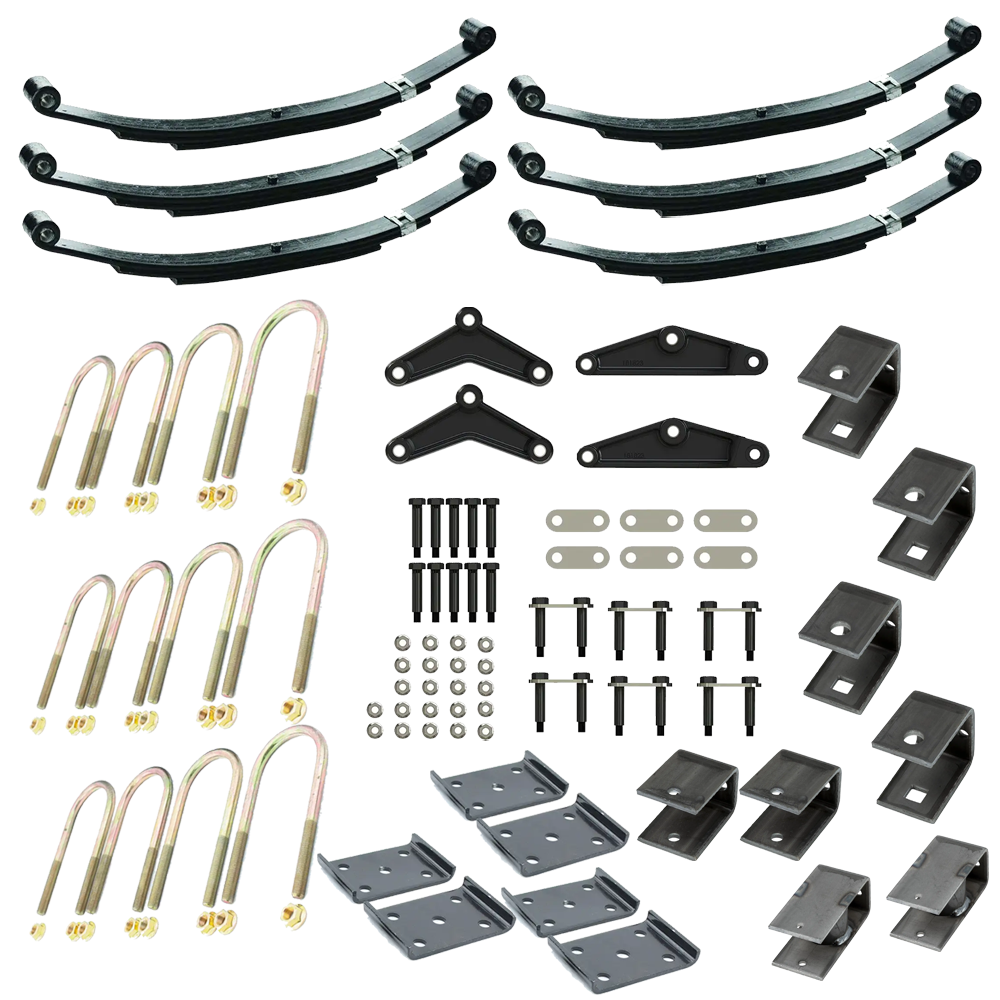

Bundle Contents:

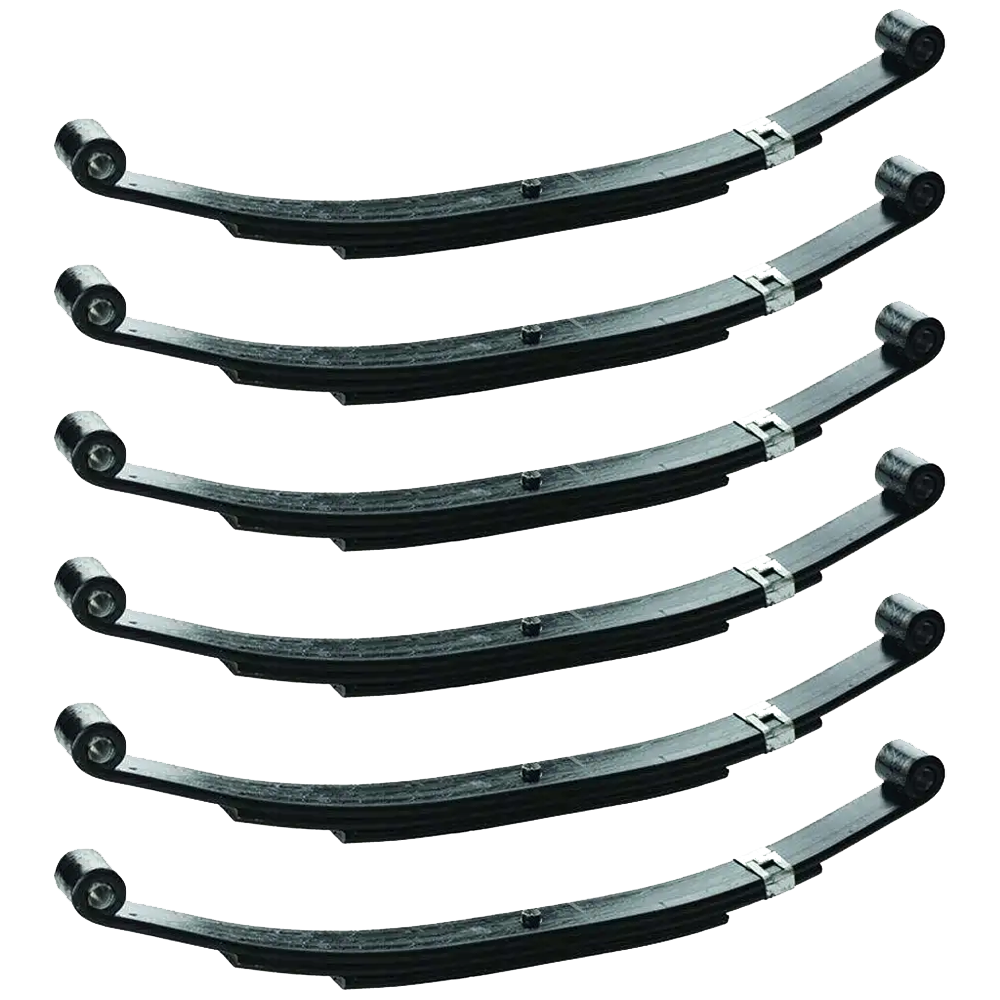

• QTY (6): Replacement Double-Eye Leaf Spring (23‑3/16" Unloaded)
  • 1,750-lb capacity per spring
  • 3 leaves, 1-3/4" width
  • Unloaded eye-to-eye length: 23‑3/16"
  • Loaded eye-to-eye length: 24"
  • Arch height (unloaded): 3-1/2"; loaded: 2-1/2"
  • Spring eye diameter: 9/16"
• QTY (1): Triple Axle AP Kit with Long Equalizer and Standard Bolts
  • Long equalizers for improved weight distribution
  • Includes shackle links, mounting hardware, and standard bolts
  • Installs like original equipment

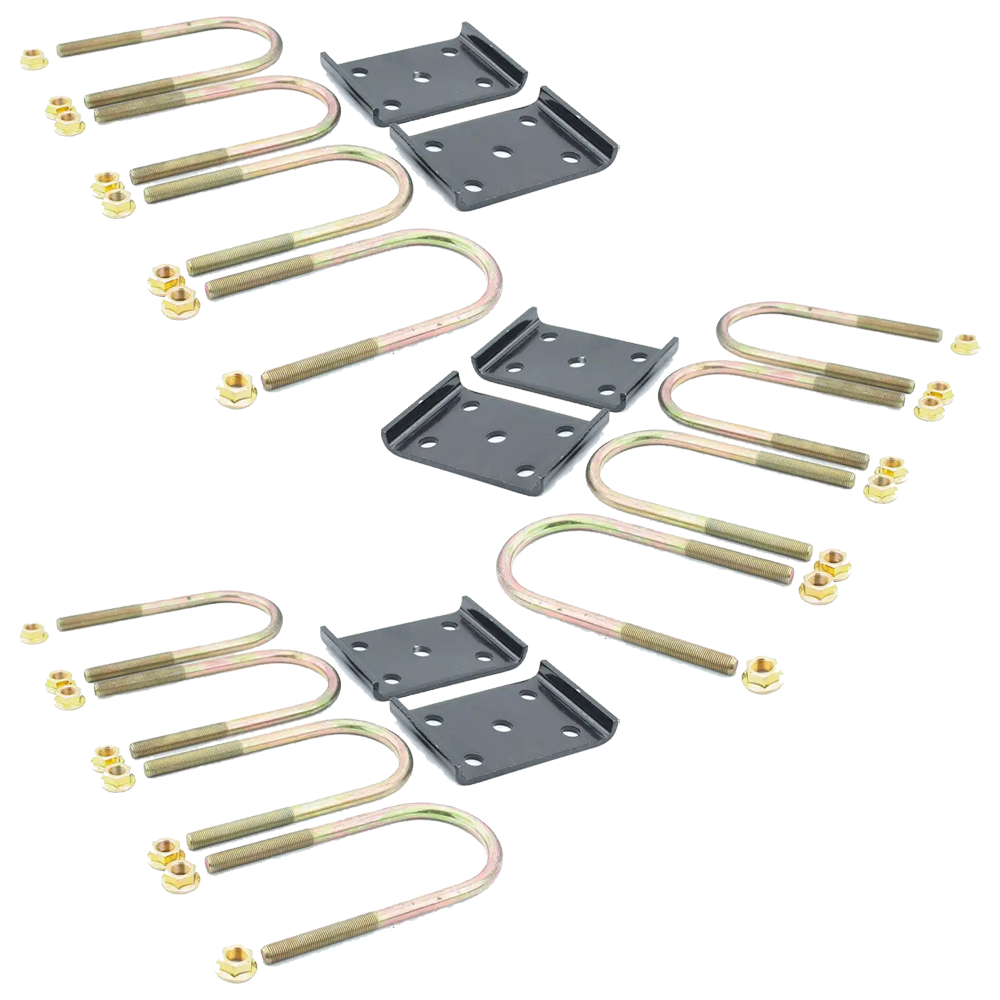

• QTY (3): Lippert Axle Mounting Kit – 3" Tube
  • U-bolt design for secure attachment
  • Fits 3" diameter axle tubes
  • Exact-match replacement for Lippert axle systems
• QTY (2): Front Trailer Axle Hanger (4‑5/16" x 2‑3/16")
  • Axle capacity: 2,200‑8,000 lbs.
  • Length: 4‑5/16"; Width: 2‑3/16"
  • Distance to hole: 3‑9/16" on-center; Hole size: 9/16"
  • Welded to chassis to mount axles and components
• QTY (4): Center Trailer Axle Hanger (4‑1/2" x 3‑1/8")
  • Axle capacity: 2,200‑8,000 lbs.
  • Length: 4‑1/2"; Width: 3‑1/8"
  • Distance to hole: 3‑5/16"; Hole size: 7/8"
  • Reliable Lippert construction
• QTY (2): Rear Trailer Axle Hanger (6" x 2‑1/4")
  • Axle capacity: 2,200‑8,000 lbs.
  • Length: 6"; Width: 2‑1/4"
  • Distance to hole: 4"; Hole size: 5/16"
  • Ensures a secure rear mounting point

Always verify compatibility with your original equipment, perform routine inspections, and replace worn components promptly. This helps maintain proper functionality, smooth towing, and enhanced safety on the road.
