Lippert Triple Axle Suspension Kit – 3" Axle Tube, 35" Spacing, 3,000 lb Leaf (25-1/4" Unloaded)

Upgrade your RV or trailer with this complete Lippert Triple Axle Suspension Kit. Designed for 3" axle tubes and 35" axle spacing, this bundle comes with 25-1/4" unloaded (26" loaded) leaf springs rated for 3,000 lbs each, long equalizers, hangers, and all necessary mounting hardware. Perfect for those looking to replace or maintain their existing suspension system, this kit ensures a reliable and smooth towing experience. Compatible with Dexter, Alko, Rockwell, and other quality axles.

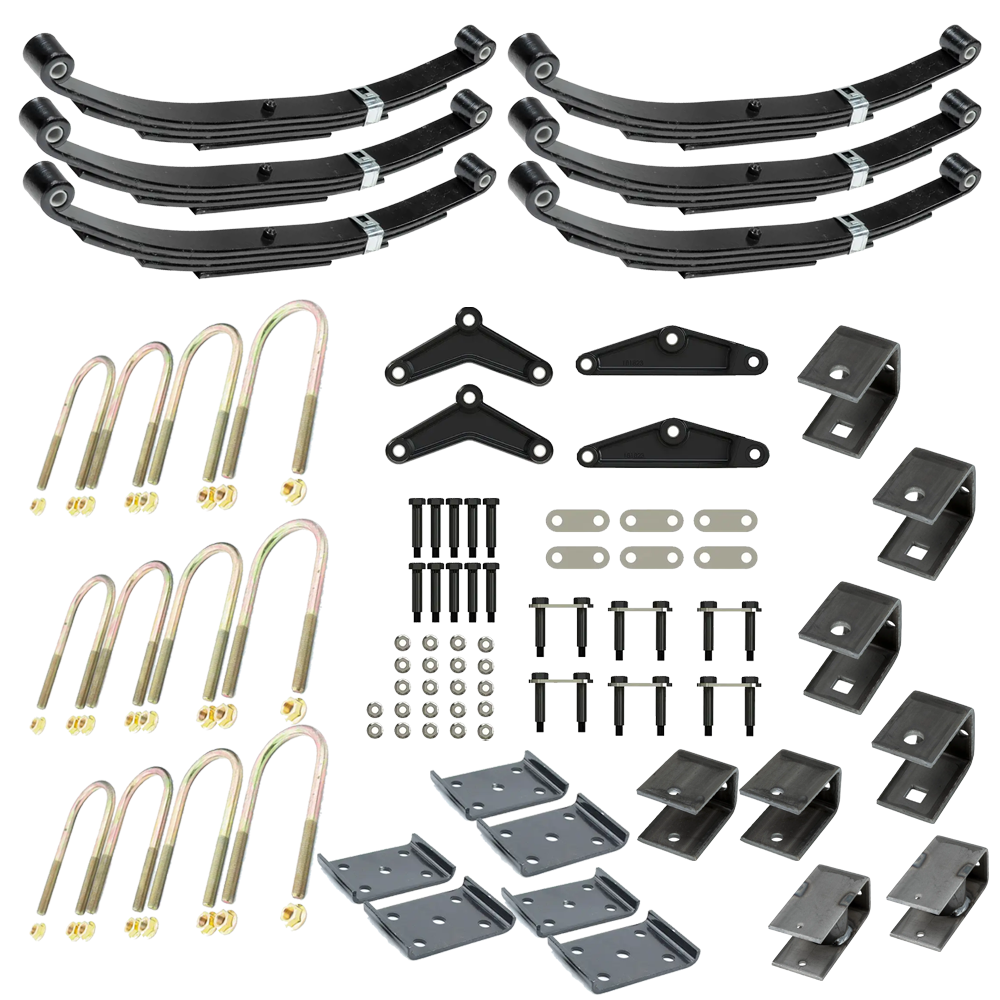

Bundle Contents:

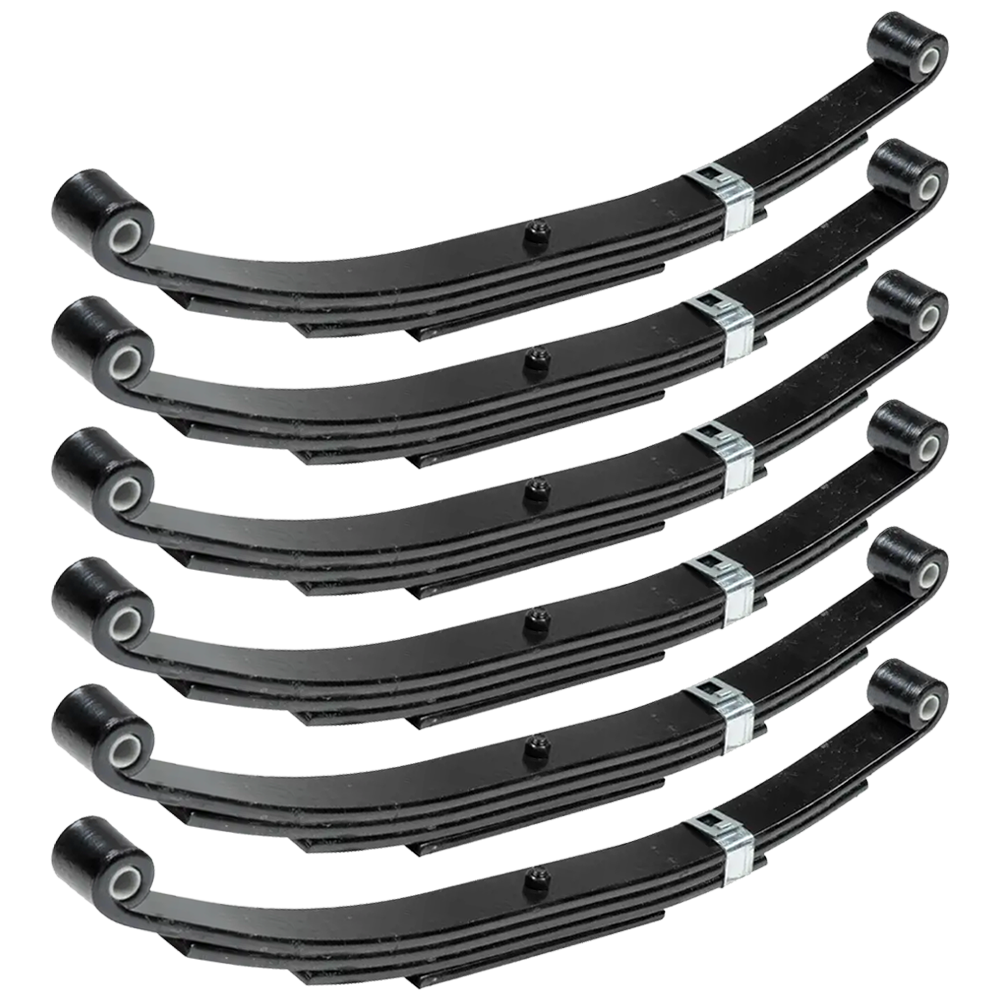

• QTY (6): Replacement Leaf Spring for RV Trailer Suspension System - 26", 3,000 lbs.
  • Replacement leaf spring for RV trailer
  • Spring capacity: 3,000 lbs.
  • # of leaves: 4
  • Spring width: 1-3/4"
  • Unloaded eye-to-eye length: 25-1/4"
  • Loaded eye-to-eye length: 26"
  • Arch height unloaded: 3-1/8"
  • Arch height loaded: 1-3/4"
  • Spring eye diameter: 9/16"
  • Please consult your original equipment label before purchasing
  • Dexter Compatible Part Number: 072-026-00
• QTY (1): Triple Axle AP Kit with Long Equalizer and Standard Bolts
  • Replacement triple axle AP kit
  • Includes shackle links, mounting hardware, and long equalizers
  • Standard bolts
  • Equalizer Type: Long Equalizers

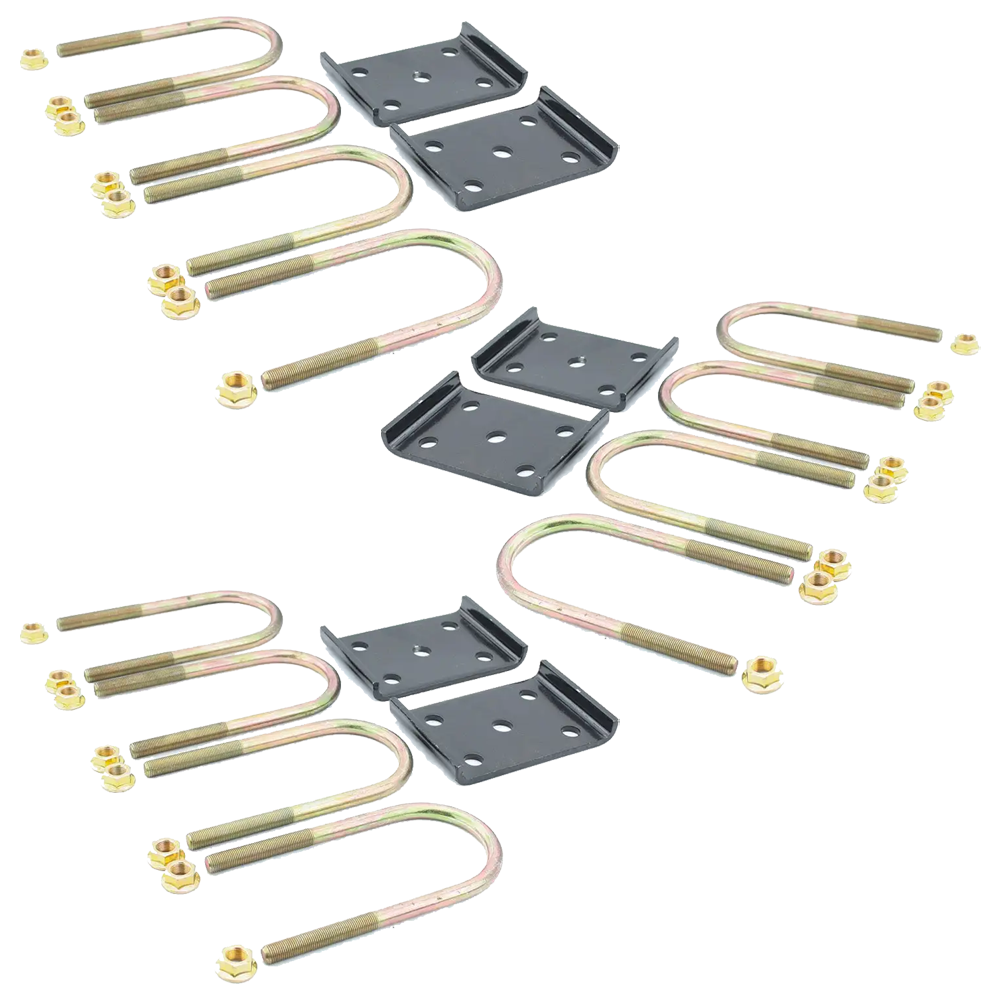

• QTY (3): Lippert Axle Mounting Kit - 3" Tube
  • Replacement axle mounting kit
  • Available sizes: 1.75", 2.375", and 3" (this kit is 3")
  • U-bolt design
  • Please consult your original hardware before purchasing
• QTY (2): Front Trailer Axle Hanger - 4-5/16" x 2-3/16", 2,200-8,000-lb. Axle Rating
  • Welded to chassis to allow mounting of axles and axle components
  • Axle capacity: 2,200 lbs.
  • Location: Front
  • Length: 4-5/16"
  • Width: 2-3/16"
  • Hole size: 9/16"
  • Distance to hole: 3-9/16" on-center
  • Dexter Compatible Part Number: 028-001-00
• QTY (4): Center Trailer Axle Hanger - 4-1/2" x 3-1/8", 2,200-8,000-lb. Axle Rating
  • Axle capacity: 2,200 - 8,000 lbs.
  • Location: Center
  • Length: 4-1/2"
  • Width: 3-1/8"
  • Hole size: 7/8"
  • Distance to hole: 3-5/16"
  • Dexter Compatible Part Number: 029-001-00
• QTY (2): Rear Trailer Axle Hanger - 6" x 2-1/4", 2,200-8,000-lb. Axle Rating
  • Axle capacity: 2,200 - 8,000 lbs.
  • Location: Rear
  • Length: 6"
  • Width: 2-1/4"
  • Hole size: 5/16"
  • Distance to hole: 4"
  • Dexter Compatible Part Number: 030-028-00

Before installing or upgrading your trailer suspension, always check your existing components and reference your original equipment. Regular maintenance ensures a safer, more enjoyable towing experience.
