Lippert Triple Axle Suspension Kit � 3" Axle Tubes (35" Spacing), 4,000 lb Leaf Springs (24-7/8" Unloaded), Long Equalizers, Hangers & Hardware � Dexter / Alko / Rockwell Compatible

Lippert Triple Axle Suspension Kit – 3" Axle Tubes, 35" Spacing

Upgrade your trailer’s ride with this complete Lippert Triple Axle Suspension Kit, designed for 3" axle tubes at 35" axle spacing. Each leaf spring is rated at 4,000 lbs and measures 24-7/8" eye-to-eye when unloaded. This bundle comes with long equalizers, all necessary hangers, and hardware — ideal for Lippert, Dexter, Alko, Rockwell, and other quality axles.

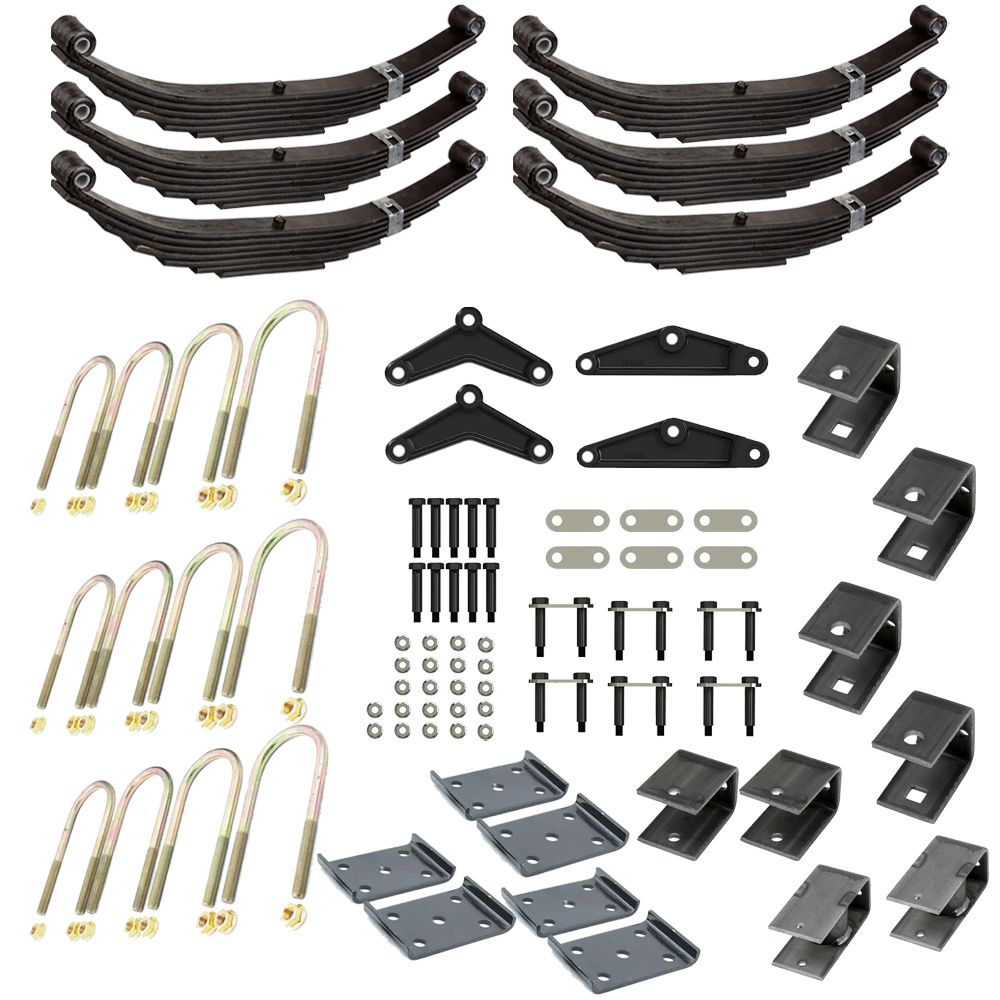

Bundle Contents:

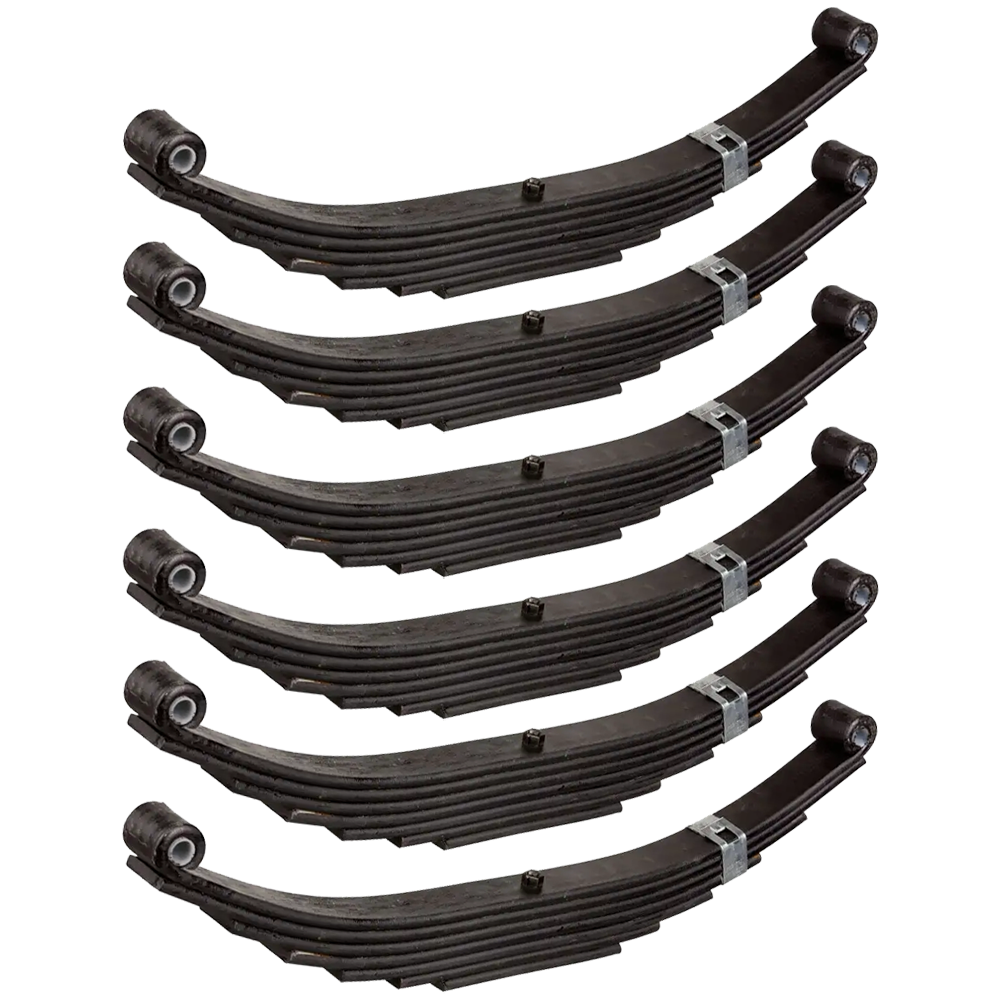

• QTY (6): Replacement Leaf Spring (4,000 lb, 24-7/8" Unloaded)
  • Exact-match replacement spring for RV trailers, 1-3/4" wide, 7 leaves
  • 24-7/8" eye-to-eye unloaded, 26" loaded length
  • Arch height: 3-1/4" unloaded, 1-3/4" loaded
  • Spring eye diameter: 9/16"
  • Dexter Compatible Part Number: 072-079-00
• QTY (1): Triple Axle AP Kit with Long Equalizer & Standard Bolts
  • Includes shackle links, mounting hardware, and long equalizers
  • Replaces worn or damaged triple axle suspension components
  • Installs just like your original equipment

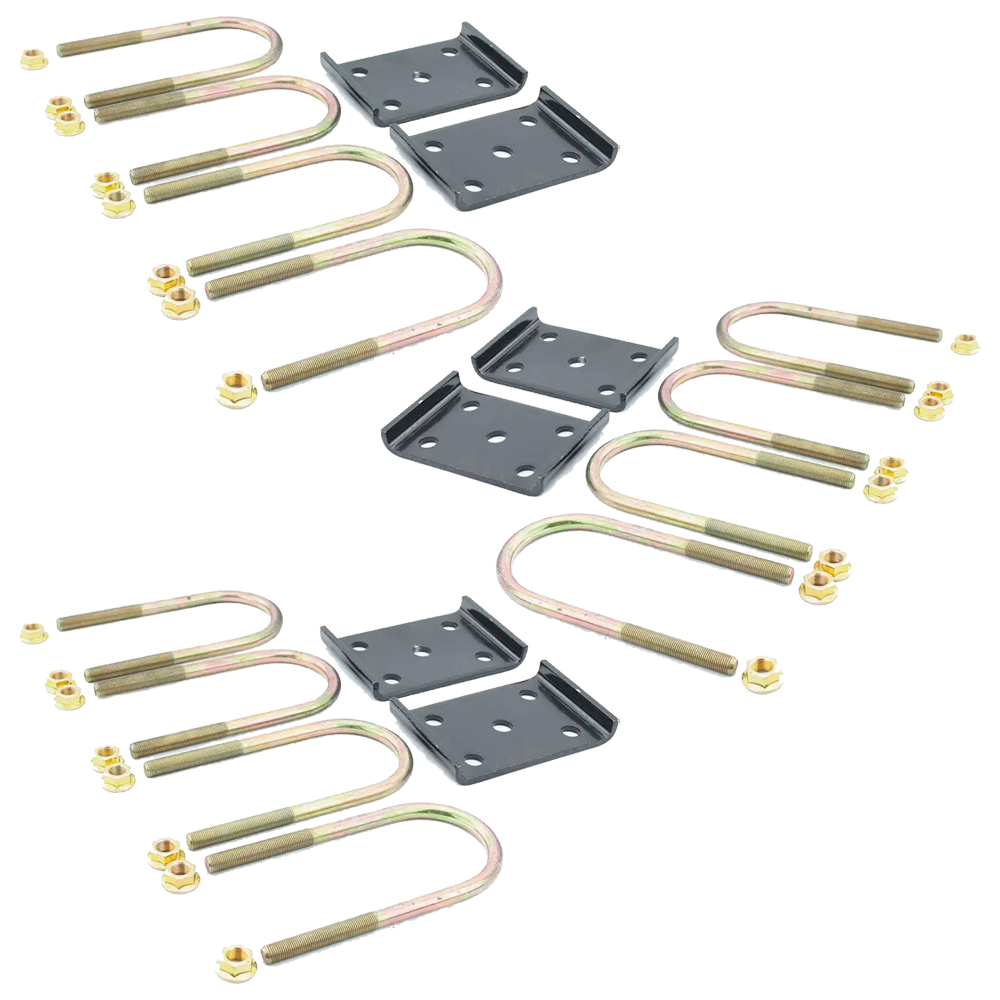

• QTY (3): Lippert Axle Mounting Kit – 3" Tube
  • Direct replacement mounting hardware for 3" diameter tubes
  • U-bolt design ensures secure axle attachment
  • Installs like the original OEM hardware
• QTY (2): Front Trailer Axle Hanger – 4-5/16" x 2-3/16"
  • Welds to chassis for front axle placement
  • Overall length: 4-5/16", width: 2-3/16"
  • Hole size: 9/16", distance to hole: 3-9/16" on-center
  • Axle capacity range: 2,200-8,000 lbs
  • Dexter Compatible Part Number: 028-001-00
• QTY (4): Center Trailer Axle Hanger – 4-1/2" x 3-1/8"
  • Welds to chassis for center axle placement
  • Overall length: 4-1/2", width: 3-1/8"
  • Hole size: 7/8", distance to hole: 3-5/16"
  • Axle capacity range: 2,200-8,000 lbs
  • Dexter Compatible Part Number: 029-001-00
• QTY (2): Rear Trailer Axle Hanger – 6" x 2-1/4"
  • Welds to chassis for rear axle placement
  • Overall length: 6", width: 2-1/4"
  • Hole size: 5/16", distance to hole: 4"
  • Axle capacity range: 2,200-8,000 lbs
  • Dexter Compatible Part Number: 030-028-00

Please check your original equipment specifications to confirm compatibility before purchasing. Perform routine maintenance to ensure optimal performance and safe travels.
