Lippert Triple Axle Suspension Kit, 3" Tube, 35" Spacing, 3,500 lb Leaf Springs (24-7/8" Unloaded), Long Equalizer, Hangers & Hardware � Dexter/Alko/Rockwell

Lippert Triple Axle Suspension Kit – 3" Tube, 35" Spacing, 3,500 lb Leaf (24-7/8" Unloaded), Long Equalizer, Hangers & Hardware

Enhance and restore your triple axle trailer’s suspension with this comprehensive Lippert kit, specifically designed for 3" axle tubes and featuring 24-7/8" unloaded leaf springs rated at 3,500 lbs each. Engineered to fit a wide range of trailer setups—including Dexter, Al-Ko, Rockwell, and other quality axles—this suspension package includes everything needed for a smooth, reliable ride: leaf springs, hangers, a long equalizer AP kit, and all necessary mounting hardware.

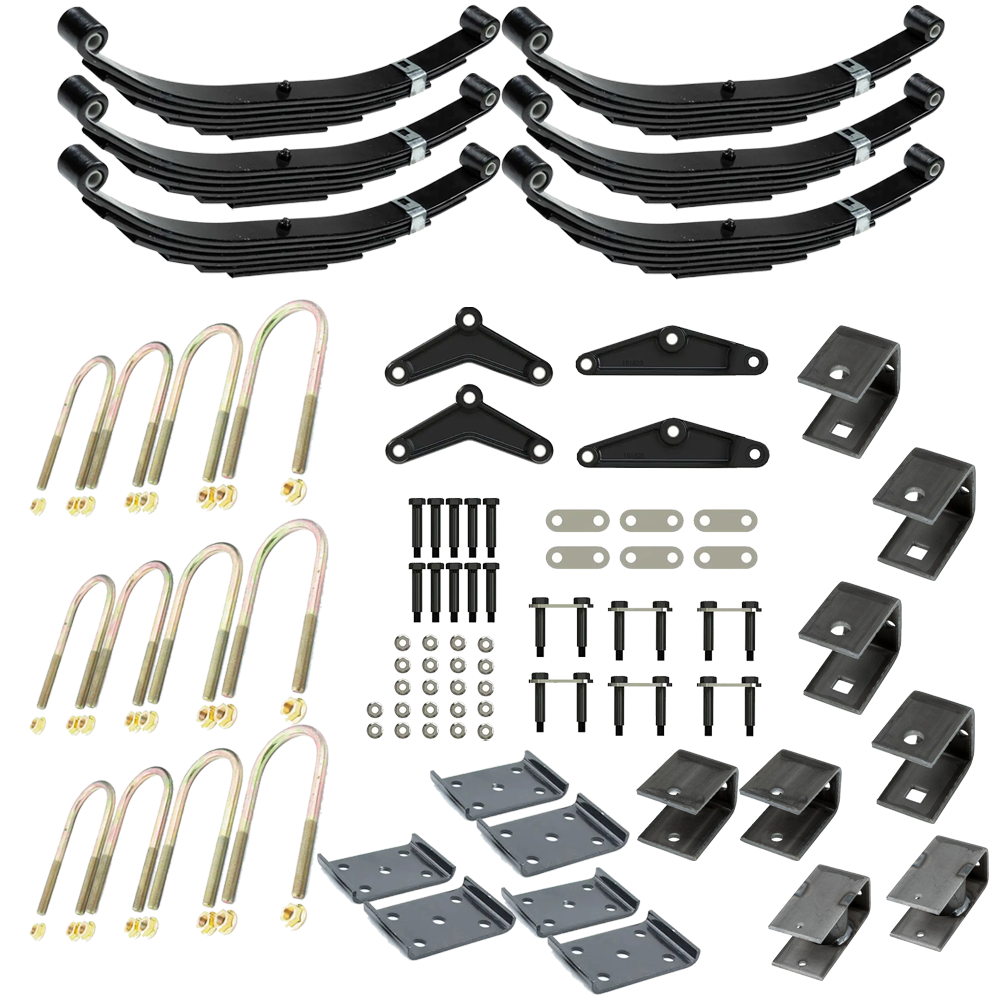

Bundle Contents:

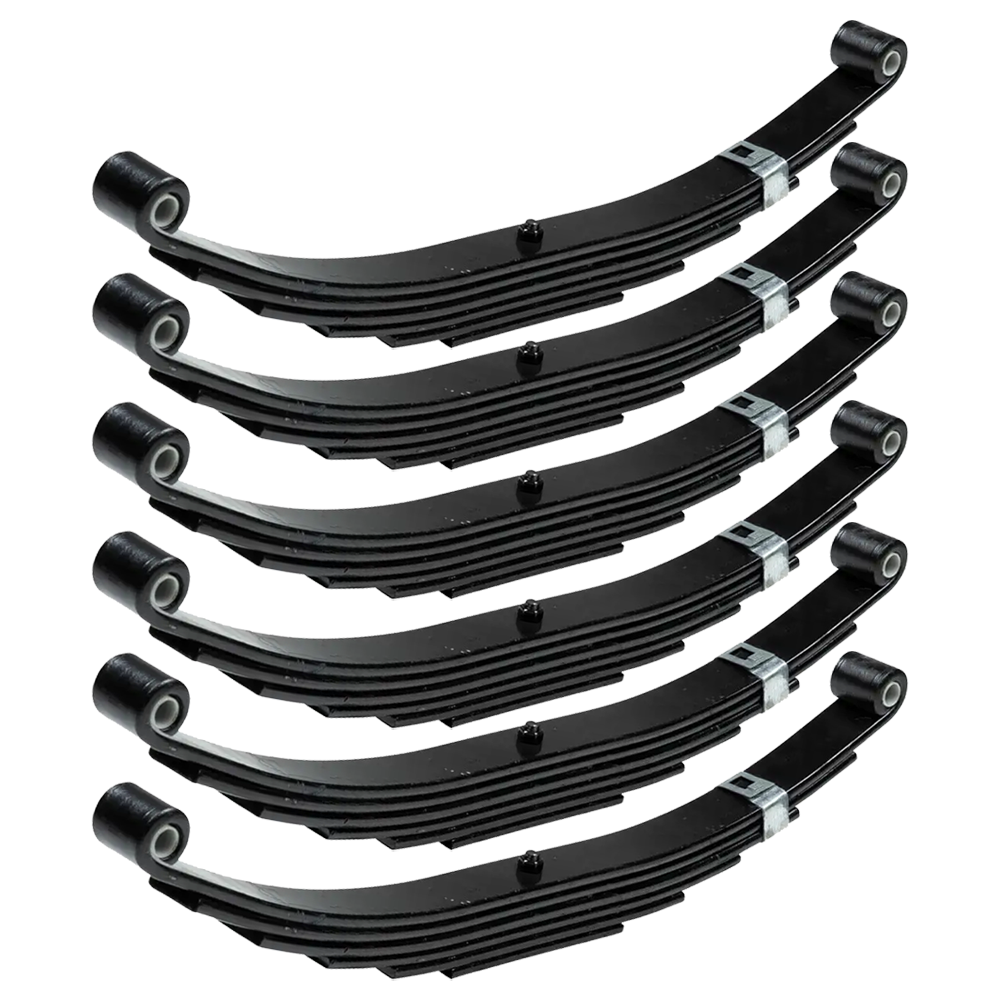

• QTY (6): Replacement Leaf Spring for RV Trailer Suspension System – 24-7/8" Unloaded, 3,500 lbs.
  • Exact-match replacement for worn or damaged leaf springs
  • 1-3/4" width, 24-7/8" unloaded eye-to-eye, 26" loaded eye-to-eye
  • 6 leaves, 3,500 lb weight capacity (each spring)
  • Arch height: 3-1/4" unloaded, 1-3/4" loaded
  • Spring eye diameter: 9/16"
  • Dexter Compatible Part Number: 072-027-00
• QTY (1): Triple Axle AP Kit with Long Equalizer and Standard Bolts
  • Complete AP kit for triple axle configurations
  • Includes shackle links, mounting hardware, and long equalizers
  • Installs just like your original equipment

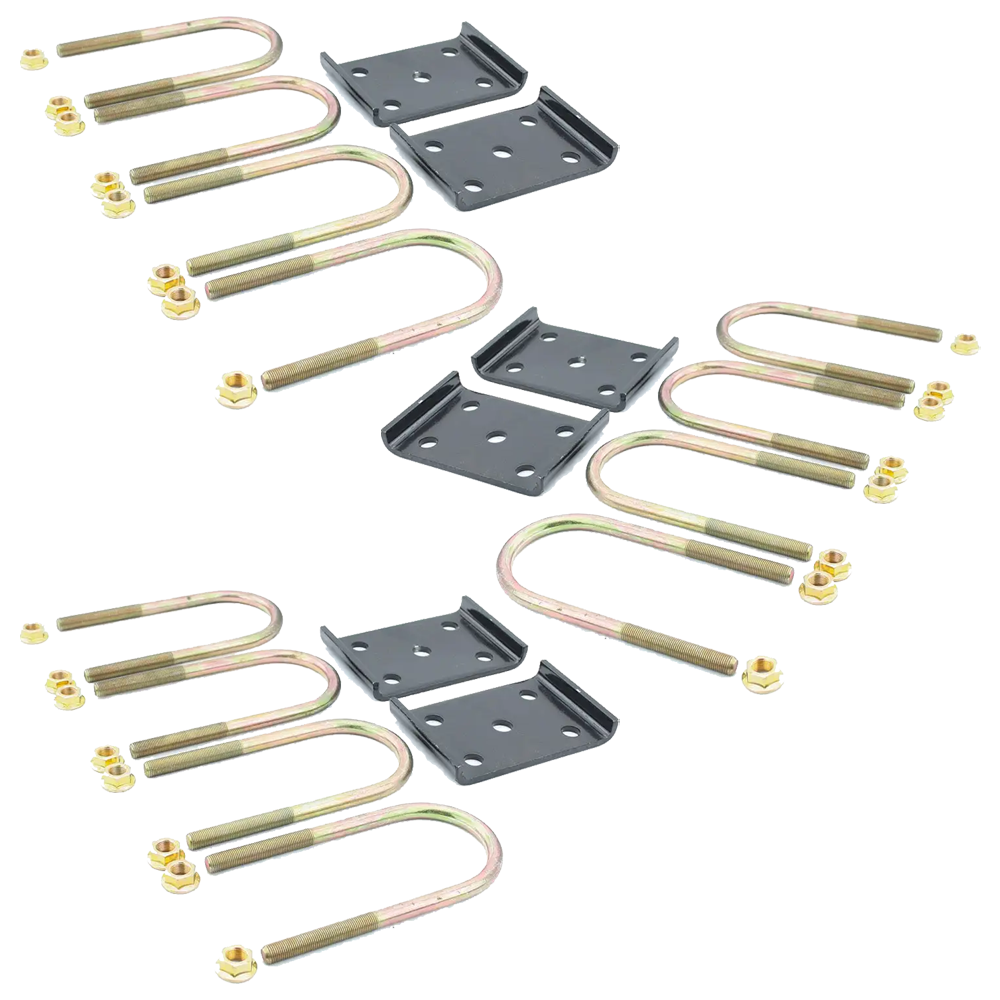

• QTY (3): Lippert Axle Mounting Kit – 3" Tube
  • Direct replacement kit for RV trailer axle systems
  • U-bolt design for secure attachment
  • Specifically sized for a 3" axle tube
• QTY (2): Front Trailer Axle Hanger – 4-5/16" x 2-3/16", 2,200-8,000 lb Axle Rating
  • Welds to chassis for axle and component mounting
  • Length: 4-5/16", Width: 2-3/16", Hole size: 9/16"
  • Distance to hole: 3-9/16" (on-center)
  • Dexter Compatible Part Number: 028-001-00
• QTY (4): Center Trailer Axle Hanger – 4-1/2" x 3-1/8", 2,200-8,000 lb Axle Rating
  • Ideal for mid-axle support on triple axle setups
  • Length: 4-1/2", Width: 3-1/8", Hole size: 7/8"
  • Distance to hole: 3-5/16"
  • Dexter Compatible Part Number: 029-001-00
• QTY (2): Rear Trailer Axle Hanger – 6" x 2-1/4", 2,200-8,000 lb Axle Rating
  • Designed for rear positioning on an RV trailer chassis
  • Length: 6", Width: 2-1/4", Hole size: 5/16"
  • Distance to hole: 4"
  • Dexter Compatible Part Number: 030-028-00

Always verify compatibility with your trailer’s original equipment before upgrading or replacing components. Routine inspection and maintenance help ensure safe and dependable towing.
