Lippert Triple Axle Suspension Kit with 2.375" Axle Tube, 35" Axle Spacing, 1,750-lb (23-3/16" Unloaded) Leaf Springs, Long Equalizers, Hangers & Hardware
$532.99
Lippert Triple Axle Suspension Kit with 2.375" Axle Tube, 35" Axle Spacing, 1,750-lb (23-3/16" Unloaded) Leaf Springs, Long Equalizers, Hangers & Hardware
Get a smoother, more reliable ride for your triple axle trailer or RV with this complete Lippert suspension kit. Engineered with quality parts that fit popular axle brands like Dexter, Alko, Rockwell, Lippert, and Quality Axles, this bundle gives you everything you need to upgrade or replace your existing setup — from leaf springs to hangers, hardware, and long equalizers.

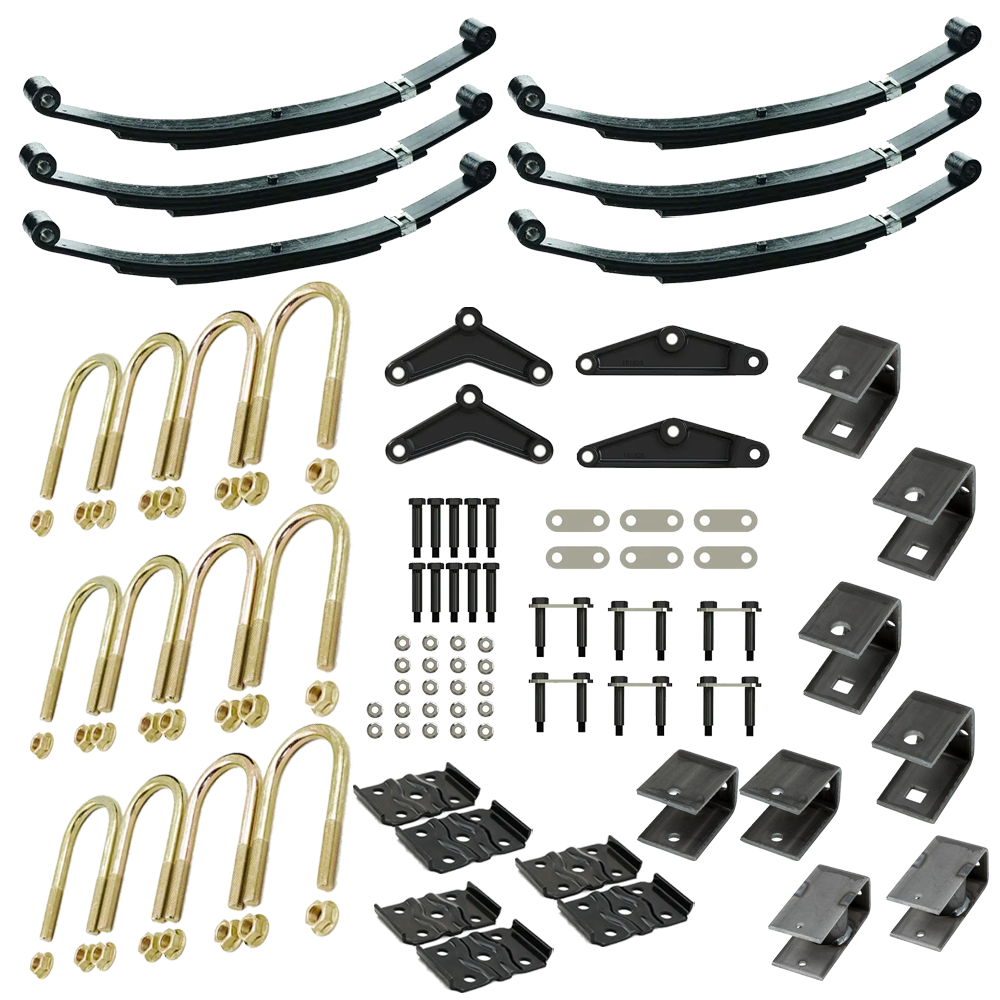

Bundle Contents:
-

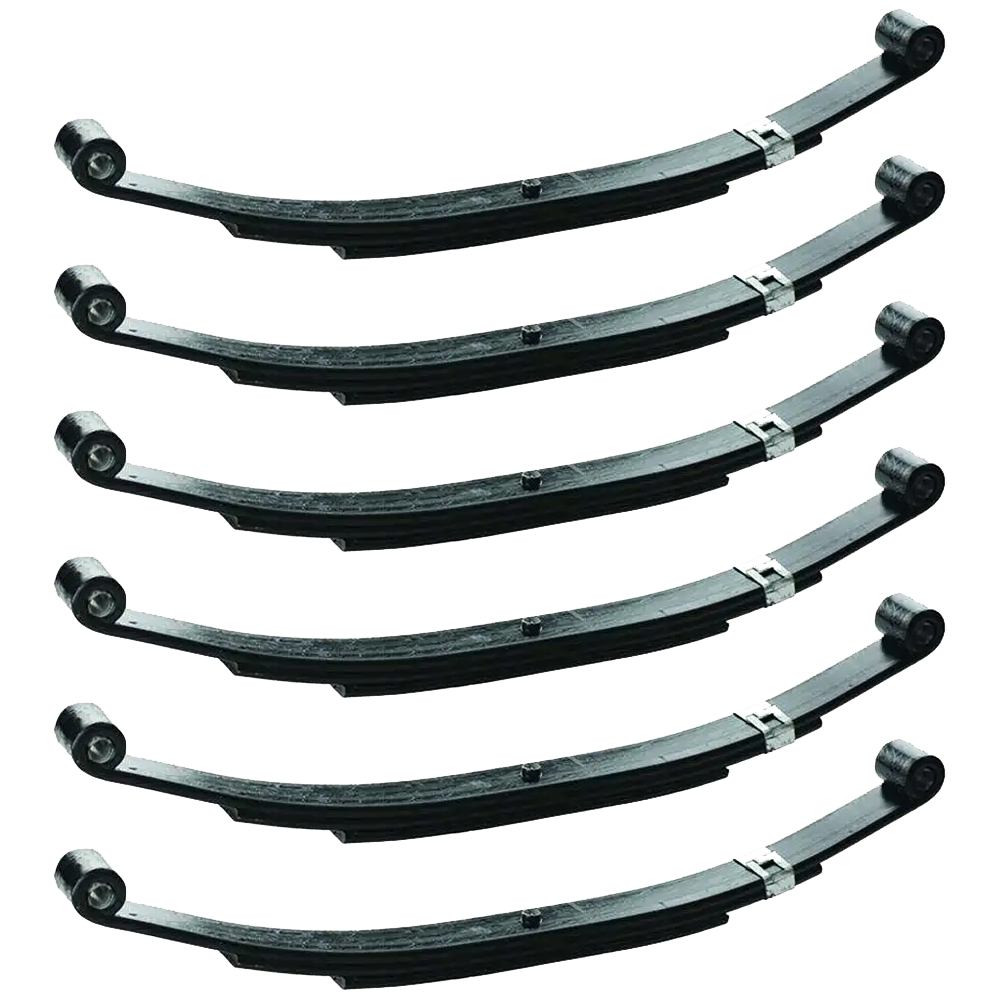

QTY (6): Replacement Double-Eye Leaf Spring (1,750-lb capacity, 23-3/16" unloaded / 24" loaded)
- 1,750-lb capacity per spring
- Width: 1-3/4"
- 4 leaves for added support
- Unloaded length: 23-3/16"; loaded length: 24"
- Spring eye diameter: 9/16"
-
QTY (1): Triple Axle AP Kit with Long Equalizer and Standard Bolts
- Includes shackle links, mounting hardware, and long equalizers
- Standard bolts for secure installation
- Designed for enhanced suspension travel on triple axle setups
-

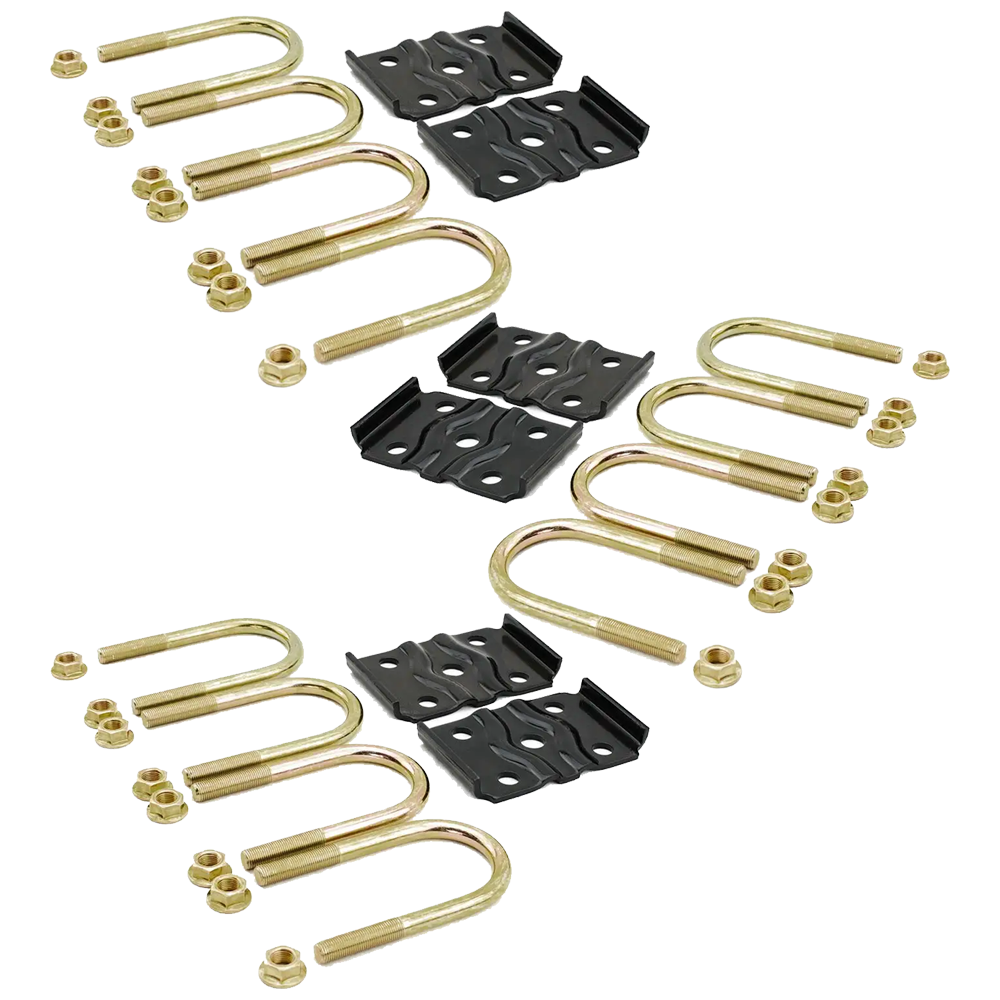

QTY (3): Lippert Axle Mounting Kit - 2.375" Tube
- Exact-fit axle mounting kit for 2.375" axle tube
- U-bolt design ensures a secure fit
- Installs similarly to your original hardware
-
QTY (2): Front Trailer Axle Hanger - 4-5/16" x 2-3/16", 2,200-8,000-lb Axle Rating
- Length: 4-5/16"
- Width: 2-3/16"
- Hole size: 9/16"
- Distance to hole: 3-9/16" on-center
-
QTY (4): Center Trailer Axle Hanger - 4-1/2" x 3-1/8", 2,200-8,000-lb Axle Rating
- Length: 4-1/2"
- Width: 3-1/8"
- Hole size: 7/8"
- Distance to hole: 3-5/16" on-center
-
QTY (2): Rear Trailer Axle Hanger - 6" x 2-1/4", 2,200-8,000-lb Axle Rating
- Length: 6"
- Width: 2-1/4"
- Hole size: 5/16"
- Distance to hole: 4" on-center
Always verify your trailer’s original components and perform routine maintenance to ensure peak performance and road safety.
| Specifications: | |
|---|---|
| Kit Type | Complete Triple Axle Suspension Kit |
| Axle Rating | 2,200-8,000 lbs |
| Leaf Spring Capacity | 1,750 lbs per spring |
| Number of Leaves per Spring | 4 |
| Leaf Spring Width | 1-3/4" |
| Unloaded Eye-to-Eye Length | 23-3/16" |
| Loaded Eye-to-Eye Length | 24" |
| Arch Height Unloaded | 3-1/2" |
| Arch Height Loaded | 2-1/2" |
| Spring Eye Diameter | 9/16" |
| Axle Tube Diameter | 2.375" |
| Equalizer Type | Long Equalizer |
| Axle Configuration | Triple Axle |
Order today or call us at 877-869-6690 for expert advice and personalized service.
