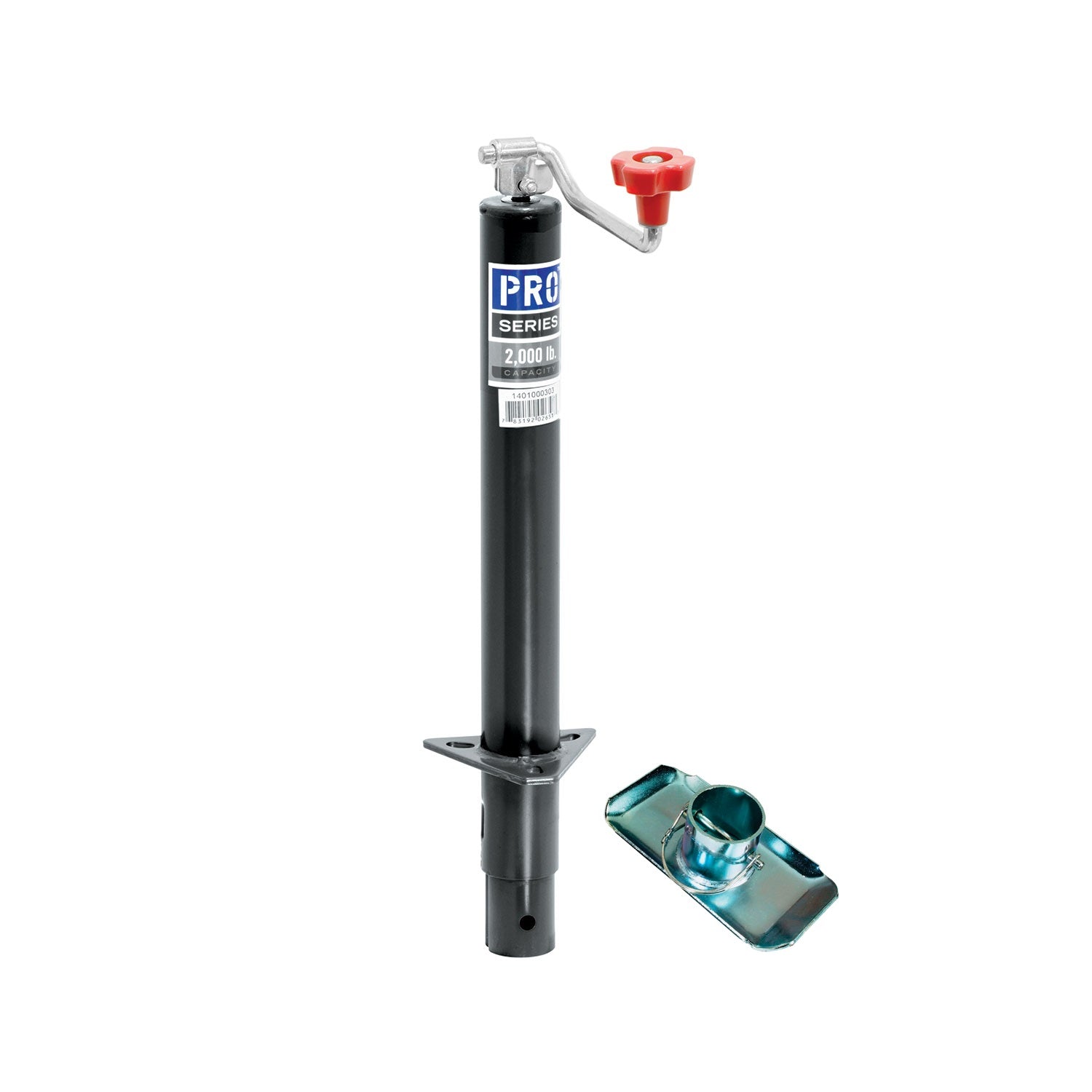

Pro Series 2000 Pound A-Frame Trailer Jack Topwind 15 Inch Lift with 2-3/32 Inch Removable Footplate Black Powdercoat Fixed Leg 1401000303 500244
$102.99
PRO SERIES round jacks are used by leading agricultural, commercial, horse, livestock, and other trailer manufacturers. PRO SERIES jacks have been demonstrated to be reliable, field-proven jacks on the market.
-
Smooth, comfortable, ergonomic design
-
Dependable vertical and side load capacity
-
Proven reliability for long term use at rated loads
-
Precision fitted parts for extra stability
-
Black painted outer and inner tube
-
Limited 1-year warranty
Â
Specifications:
-
Lift Capacity: 2,000 lbs.
-
Retracted Bracket Height: 5.50" from bracket to bottom
-
Extended Bracket Height: 20.50"
-
Travel/Lift: 15"
-
Clearance: 16.00" from bracket to top
-
Works with any standard A-Frame mount
-
Inner tube diameter: 2"
-
Outer tube diameter: 2-1/4"
-
2-3/32 Footplate Included
Footplate Specs: - 2-3/32" Tall Removable Footplate included
- Includes snapper pin
- Actual size 6 In. W x 2.25 In. L x 9.5 In. H
- For 2,000-5,000 lbs. Jacks
- Zinc plated
