Pro Series 24000 Pound Electric Landing Gear Set with Dual Jacks and Side Plunger Pins 26 Inch Lift Black Powdercoat Fixed Leg 140094X2 1824200100 CS730300
$1,508.33

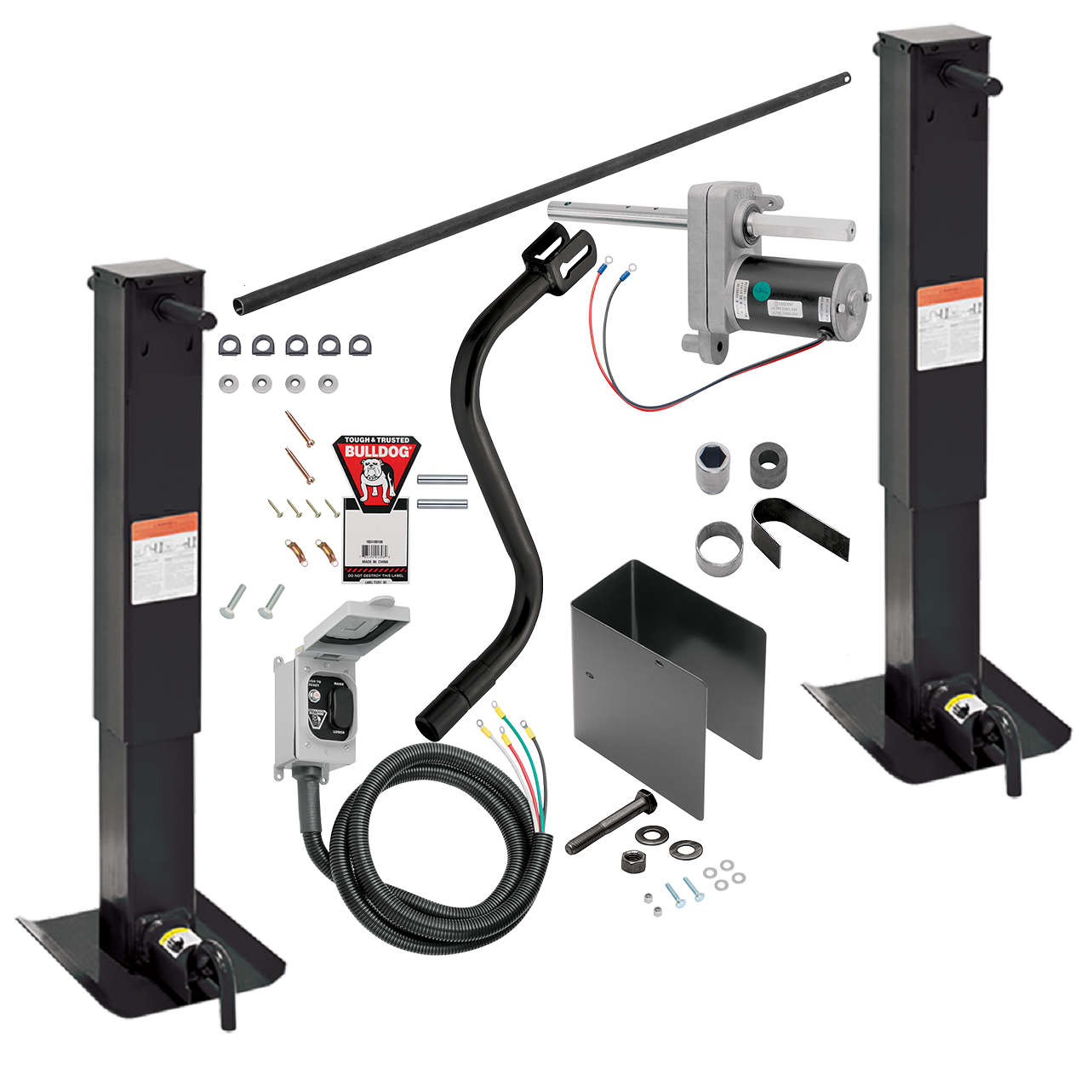

Tandem 24K Dual Pro Series Trailer Jacks Landing Gear with Crosshaft and Bulldog Electric Motor
Experience the next level of trailering with our Pro Series Trailer Jacks - 140094, interconnected with a crosshaft CS730300 and enhanced by the Bulldog electric motor kit 1824200100. This setup is designed for a variety of trailers and promises easy operation with excellent lifting power.

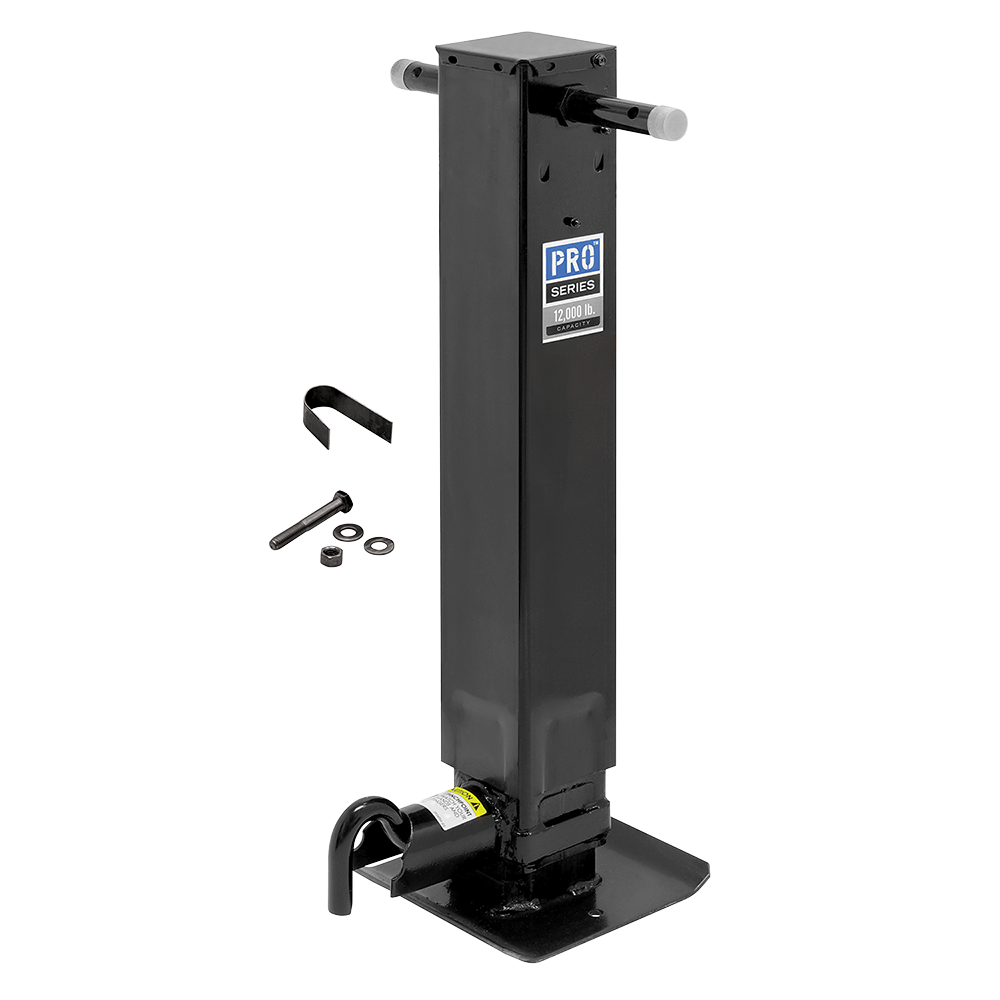

Pro Series Trailer Jacks - 140094 (Quantity 2):
The Pro Series Trailer Jack - 140094, made from robust steel and finished in black, provides a strong lifting capacity of 20,000 lbs and a static support capacity of 24,000 lbs, ready for the most demanding tasks.
Key Features:
- Durable Steel Construction
- Unified Tandem Operation via crosshaft with electric motor 1824200100 for easy control
- Manual Override Crank for emergency use during power outages
- Weather-Resistant Black Finish
- Adjustable Drop Leg with Spring Return for convenient positioning
- Curbside Facing Plunger Pin for easy access (Note: For roadside-facing orientation, internal adjustment is required)
- Maintenance-Friendly with Grease Zerk Fittings
- Direct-Weld Design for a secure installation
- Included Sidewind Crank and Integrated Footplate
Landing Gear Technical Specifications:
- Bracket Height: 28-1/4" (Retracted), 54-1/4" (Extended)
- Total Lift: 26"
- Travel: 12-1/2"
- Drop Leg: 13-1/2"
- Manual Lift Capacity: 20,000 lbs
- Electric Lift Capacity: 15,000 lbs (7,500 lbs per jack)
- Static Support Capacity: 24,000 lbs
- Warranty: 1-year for the Jack, 5-year for the electric motor

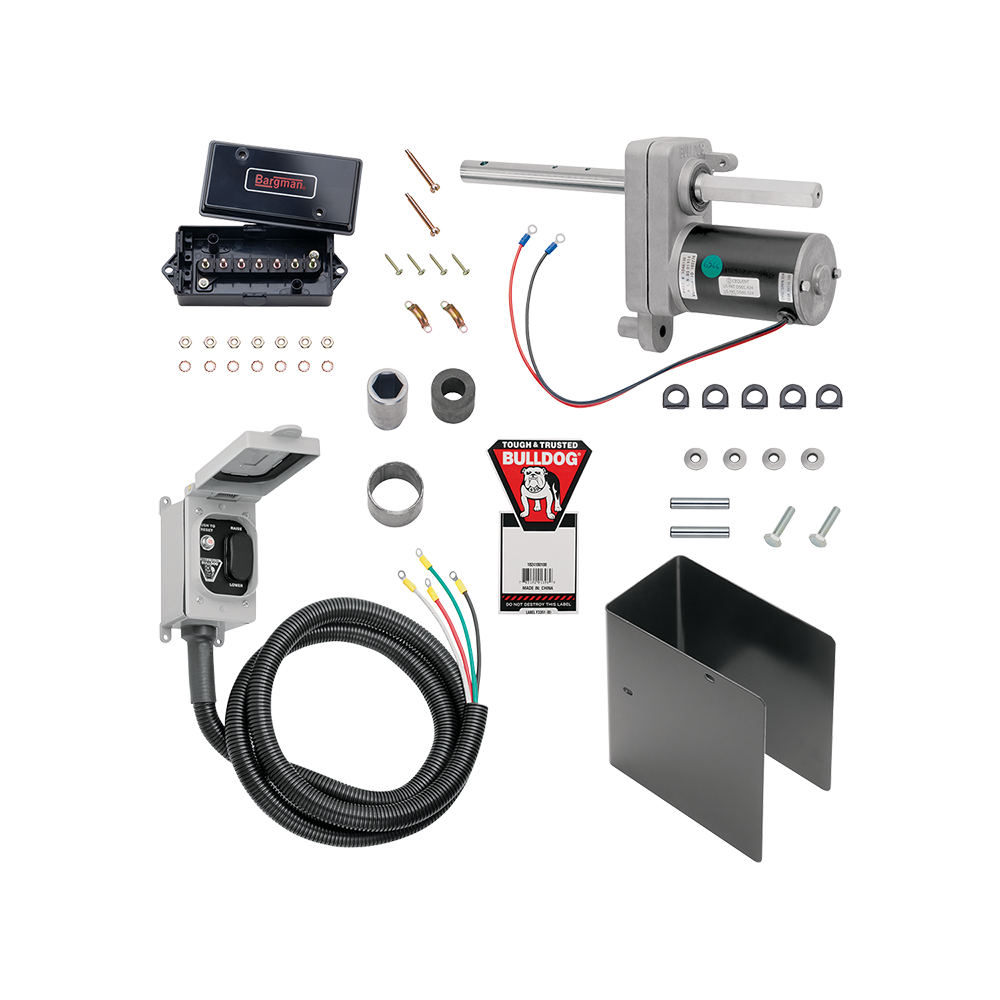

Bulldog Electric Motor Powered-Drive Kit - 1824200100:
Upgrade your jacks with the Bulldog Electric Motor Kit, designed for smooth and efficient operation, with an electric lift capacity of 7,500 lbs per jack, suitable for heavy-duty trailers.
Motor Features:
- Ease of Lifting
- Compatibility with Single-Speed Jacks
- Ideal for various types of trailers
- Space-Efficient Design
- Quiet and Efficient Power Use
- Maintenance-Free and Weatherproof
- Manual Operation Option

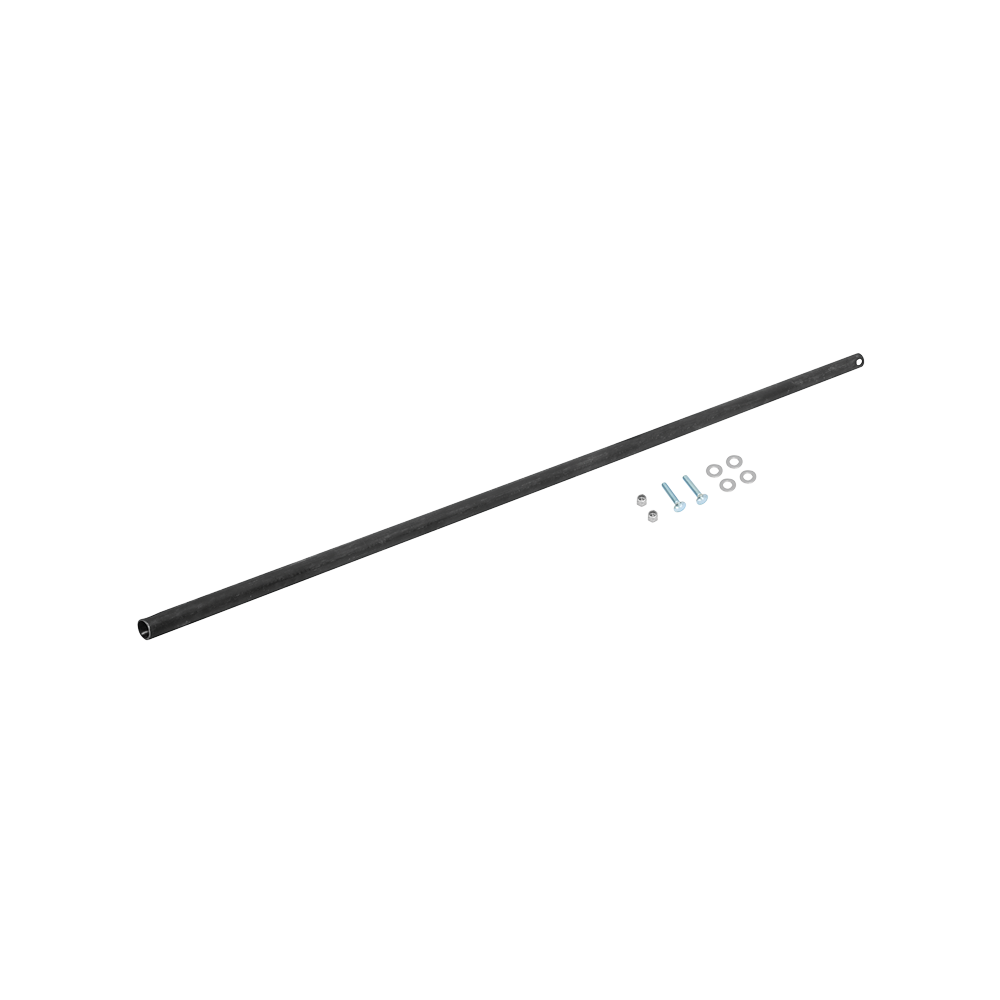

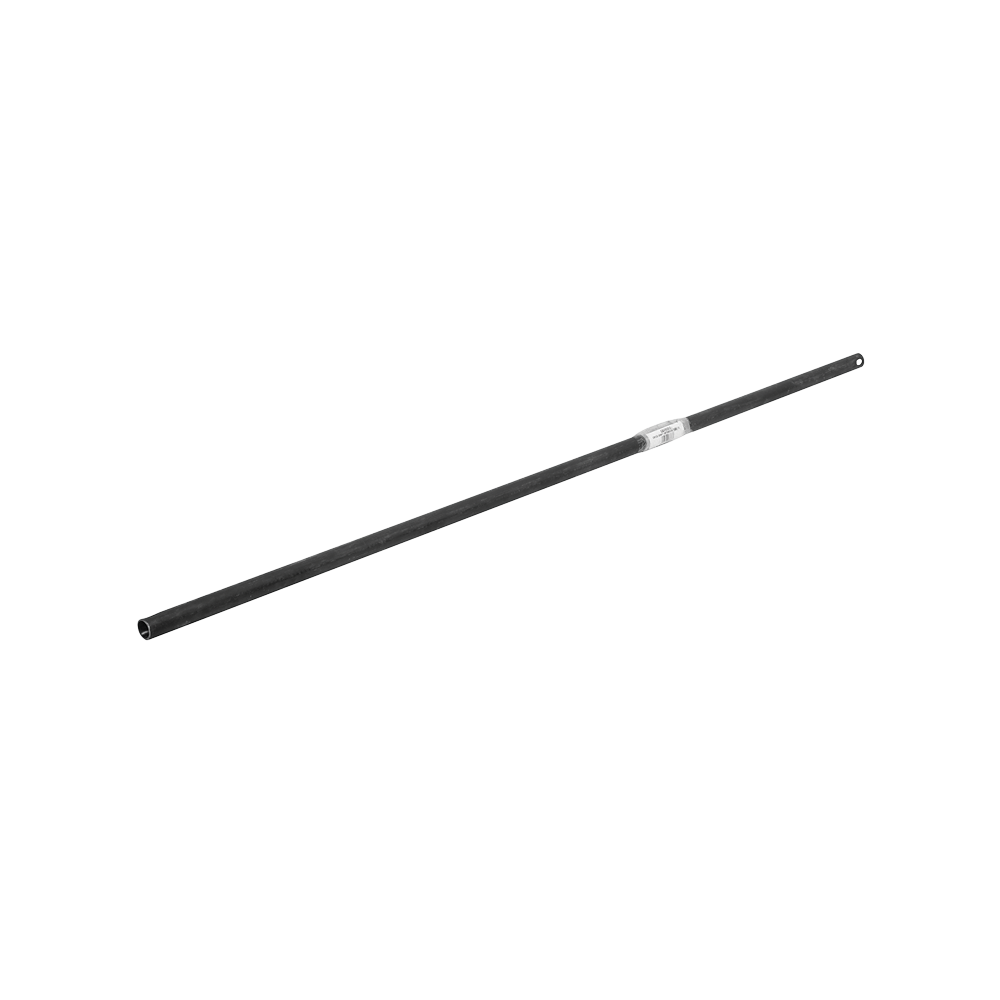

Crosshaft Specifications:
The Trailer Jack Cross Shaft Tube (72-3/4" long) with Slotted Ends and Hardware allows tandem operation, with customizable length for specific applications.
Choose the Tandem Pro Series Trailer Jacks 140094 with Spring Return Drop Legs and electric motor kit 1824200100 for strength and ease of use, complete with a crosshaft, and backed by a 5-year warranty. Reach out to us at 877-869-6690 for the best in trailer technology. Enhance your landing gear with Pro Series Jacks 140094 for reliable performance without manual effort.
