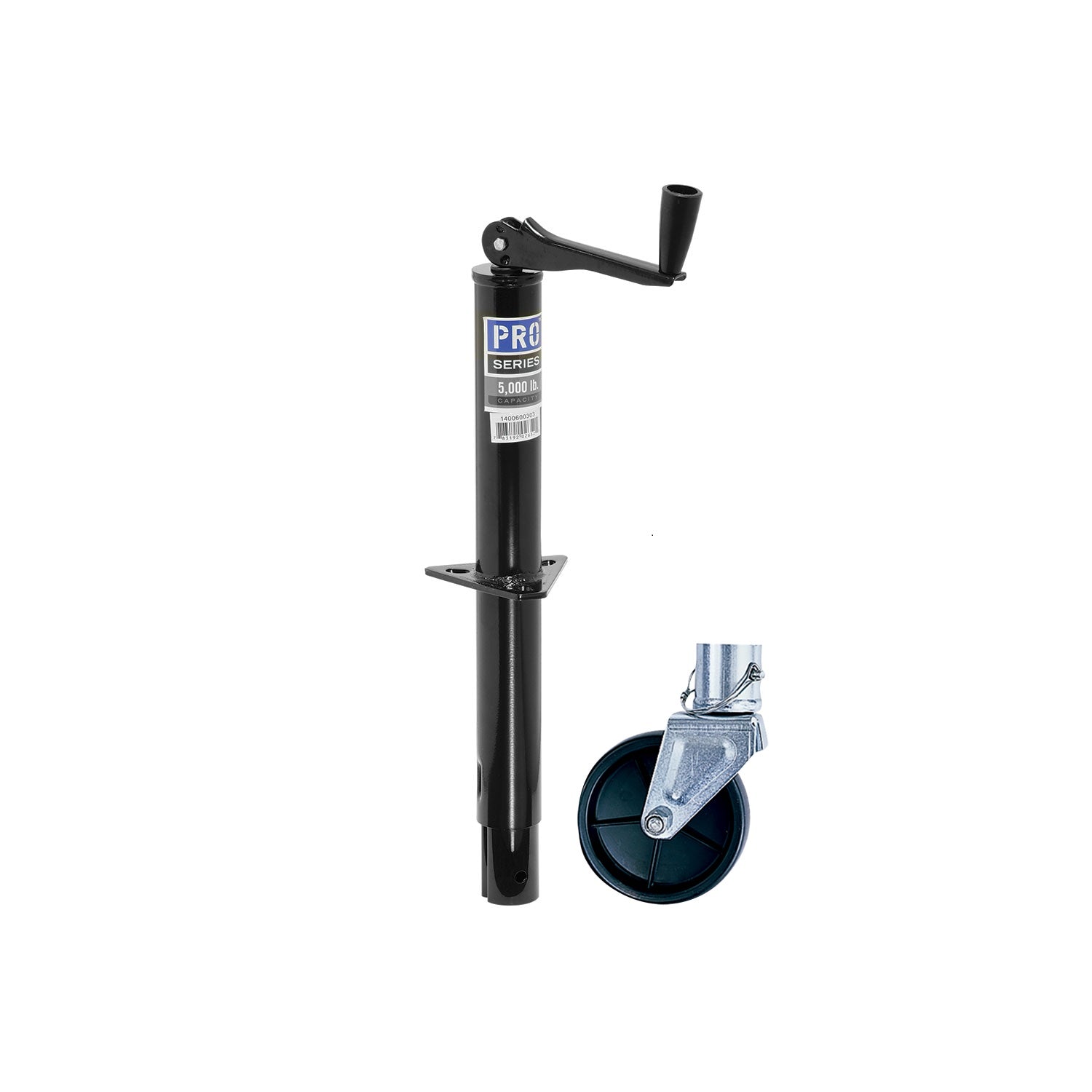

Pro Series Round 5K A-Frame Trailer Jack 15 Inch Lift Topwind with 6 Inch Caster Wheel 1400600303 500245
$92.99
PRO SERIES round jacks are used by leading agricultural, commercial, horse, livestock, and other trailer manufacturers. PRO SERIES jacks have been demonstrated to be reliable, field-proven jacks on the market.
-
Smooth, comfortable, ergonomic design
-
Dependable vertical and side load capacity
-
Proven reliability for long term use at rated loads
-
Precision fitted parts for extra stability
-
Black painted outer and inner tube
-
Limited 1-year warranty
Â
Specifications:
-
Lift Capacity: 5,000 lbs.
-
Retracted Bracket Height: 10.80" from bracket to bottom
-
Extended Bracket Height: 25.80"
-
Travel/Lift: 15"
-
Clearance: 14.55" from bracket to top
-
Works with any standard A-Frame mount
-
Inner tube diameter: 2"
-
Outer tube diameter: 2-1/4"
6" Â Zinc Plated Wheel Included
- Wheel Specs:
- 6 In. Wheel
- Rated 800 Lbs
- Zinc finish
- 3 year limited warranty
- Easy to use snapper pin
- Rated 2000 - 5000 lbs
- Size 9 In. W x 4 In. L x 11 In. H
