Reese 15K Weight Distribution Hitch with Dual Cam Sway Control and Adjustable Shank 66541 26002 63840
$1,408.99

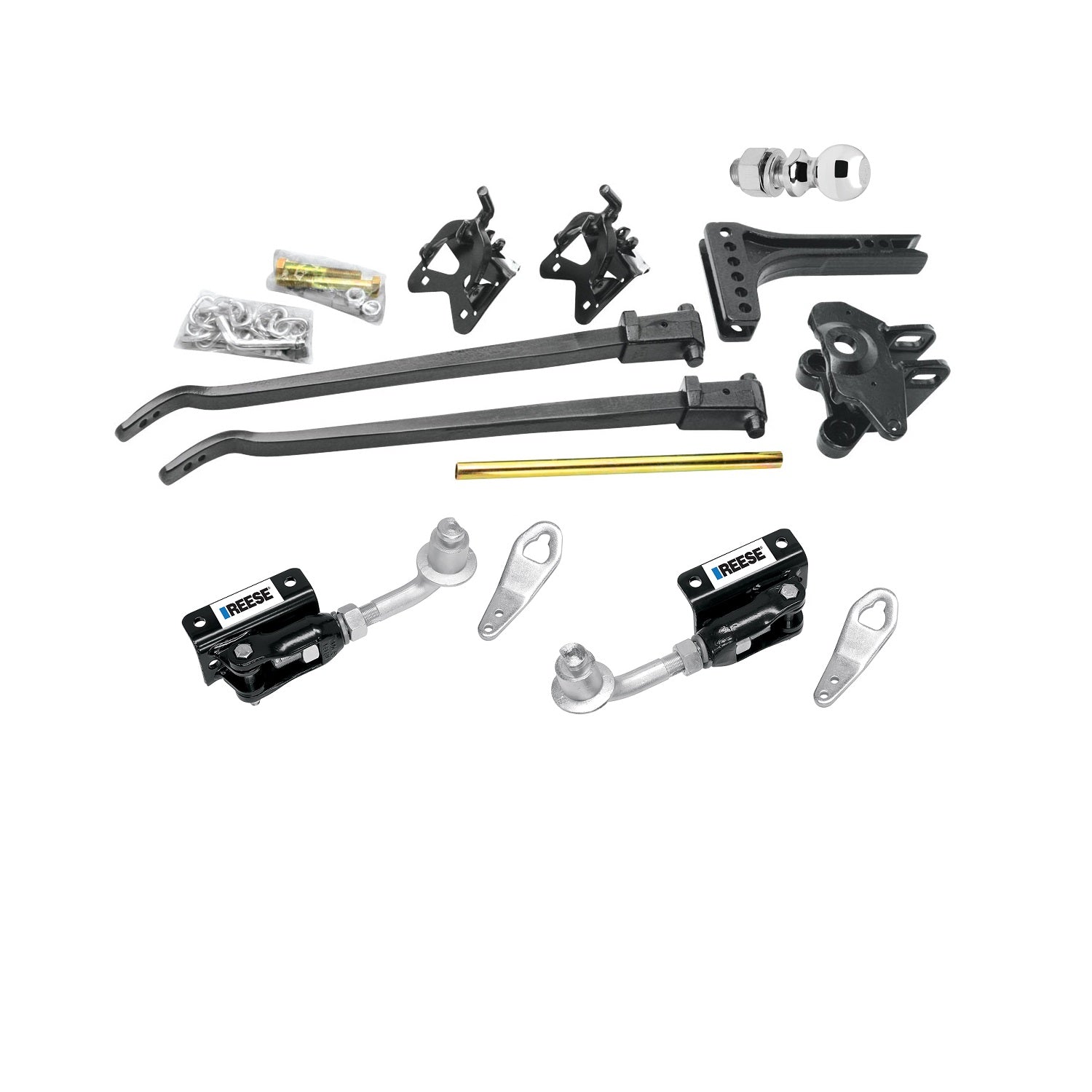

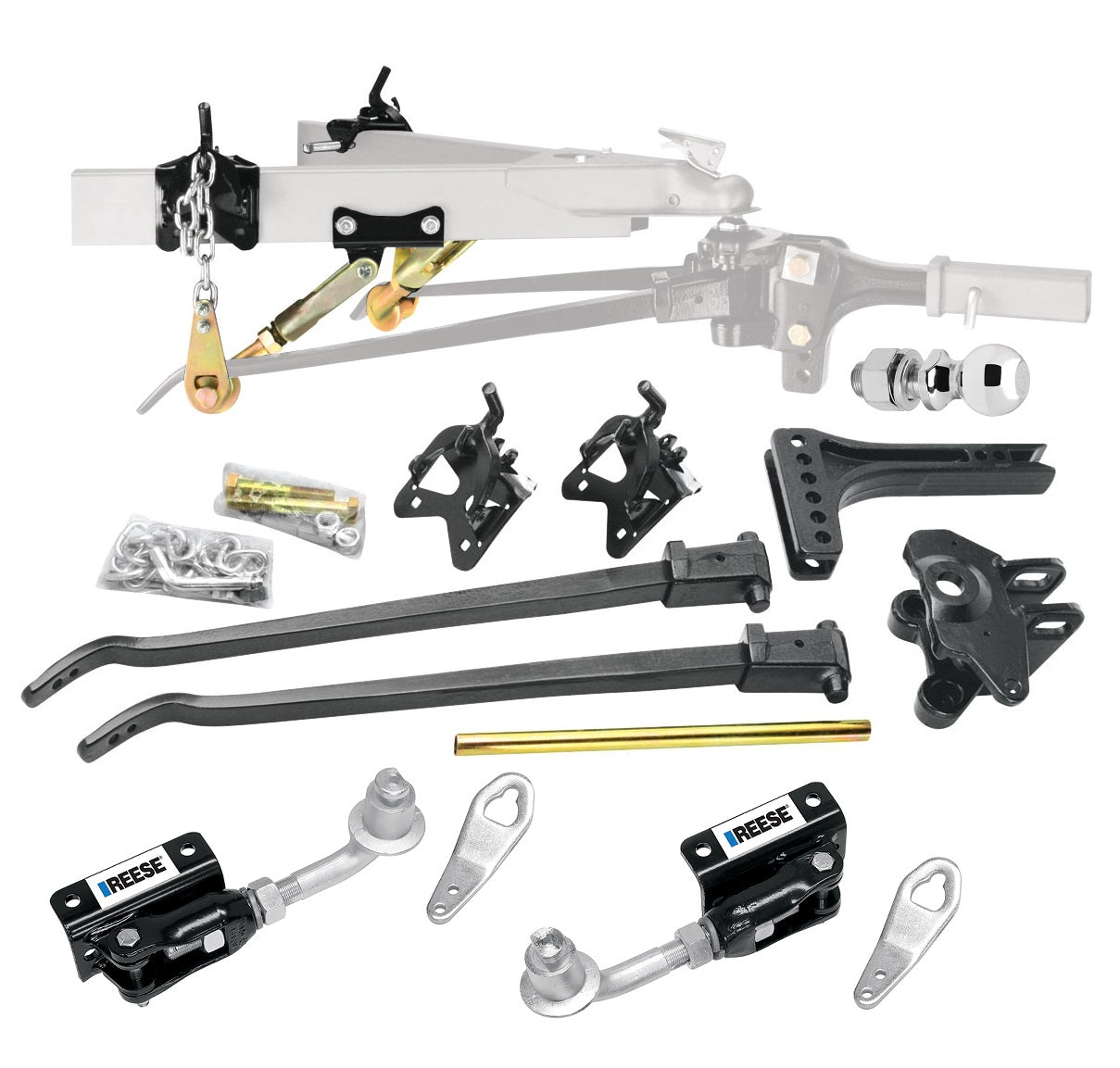

Includes Everything Pictured:
High Strength Steel Head Assemnly
Dual Cam Reese Sway Control System
Trunnion spring bars
Adjustable Shank
High Strength Steel Head Assemnly
Dual Cam Reese Sway Control System
Trunnion spring bars
Adjustable Shank
Hitch Ball 2-5/16" x 1-1/4" x 2-3/4" 20,000 lbs.
Lift Brackets
Pin/Clip
Installation Hardware
Installation Instructions
REESE TRUNNION BAR HEAVY DUTY WEIGHT DISTRIBUTING COMPLETE KIT FEATURES
Reese has combined the best of the features from all of our weight distributing kits to create the High-Performance Trunnion Kit. It includes a head design with superior strength and easy adjustment.
In addition to the changes in the head, the Weight Distributing Kit includes the highest rated spring bars per class in the industry. They also feature an integrated cam for easy set up with the optional Dual Cam High-Performance Sway Control. Other features include 9-link chains for easier set up on larger trailer frames and innovative snap-up brackets designed for superior strength and durability.
Raised hitch ball platform eliminates the need for raised hitch balls
Easy-to-use serrated washers for head adjustment
Dual Cam Reese Sway Control System
Forged ball platform and spring bar mounts
Rated up to 15,000 lbs. GTW and 800 lbs. TW
2-5/16" Ball Included
Limited lifetime warranty
Lift Brackets
Pin/Clip
Installation Hardware
Installation Instructions
REESE TRUNNION BAR HEAVY DUTY WEIGHT DISTRIBUTING COMPLETE KIT FEATURES
Reese has combined the best of the features from all of our weight distributing kits to create the High-Performance Trunnion Kit. It includes a head design with superior strength and easy adjustment.
In addition to the changes in the head, the Weight Distributing Kit includes the highest rated spring bars per class in the industry. They also feature an integrated cam for easy set up with the optional Dual Cam High-Performance Sway Control. Other features include 9-link chains for easier set up on larger trailer frames and innovative snap-up brackets designed for superior strength and durability.
Raised hitch ball platform eliminates the need for raised hitch balls
Easy-to-use serrated washers for head adjustment
Dual Cam Reese Sway Control System
Forged ball platform and spring bar mounts
Rated up to 15,000 lbs. GTW and 800 lbs. TW
2-5/16" Ball Included
Limited lifetime warranty
Weigh Distribution Specs:
| Part Number | 66541 |
| Gross Towing Weight Capacity | 15,000 lbs |
| Tongue Weight Capacity | 800 lbs |
| Application: | 2" Trailer Hitch Receivers rated for weight distribution |
| Lift-bracket positioning | mount around 30" back from hitch ball |
| Max. Trailer Frame Height | Around 5-1/2" of space along trailer frame is required |
| Maximum Frame Width | Will not fit trailer frames wider than 2-1/2" |
| Total height adjustment along shank | 5-1/4" |
| Maximum Frame Width Required | Will not fit trailer frames wider than 2-1/2" |
| Installation Instructions |  |
Adjustable Shank Specs:
| Length | 14" from center of Ball hole to center of hitch pin hole |
| Rise | 6"-1/2" From top of hitch receiver opening |
| Drop | 1-1/4" From top of hitch receiver opening |

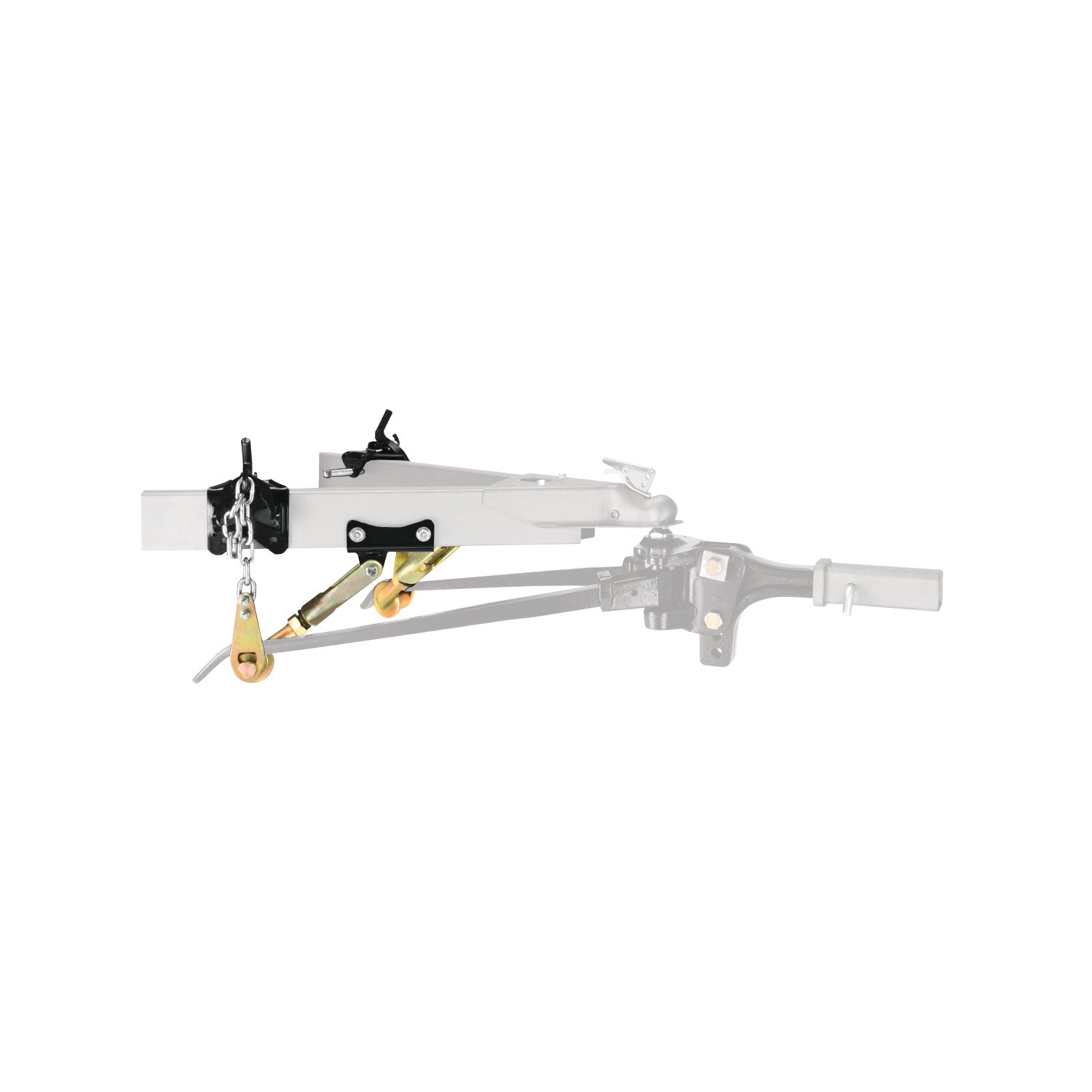

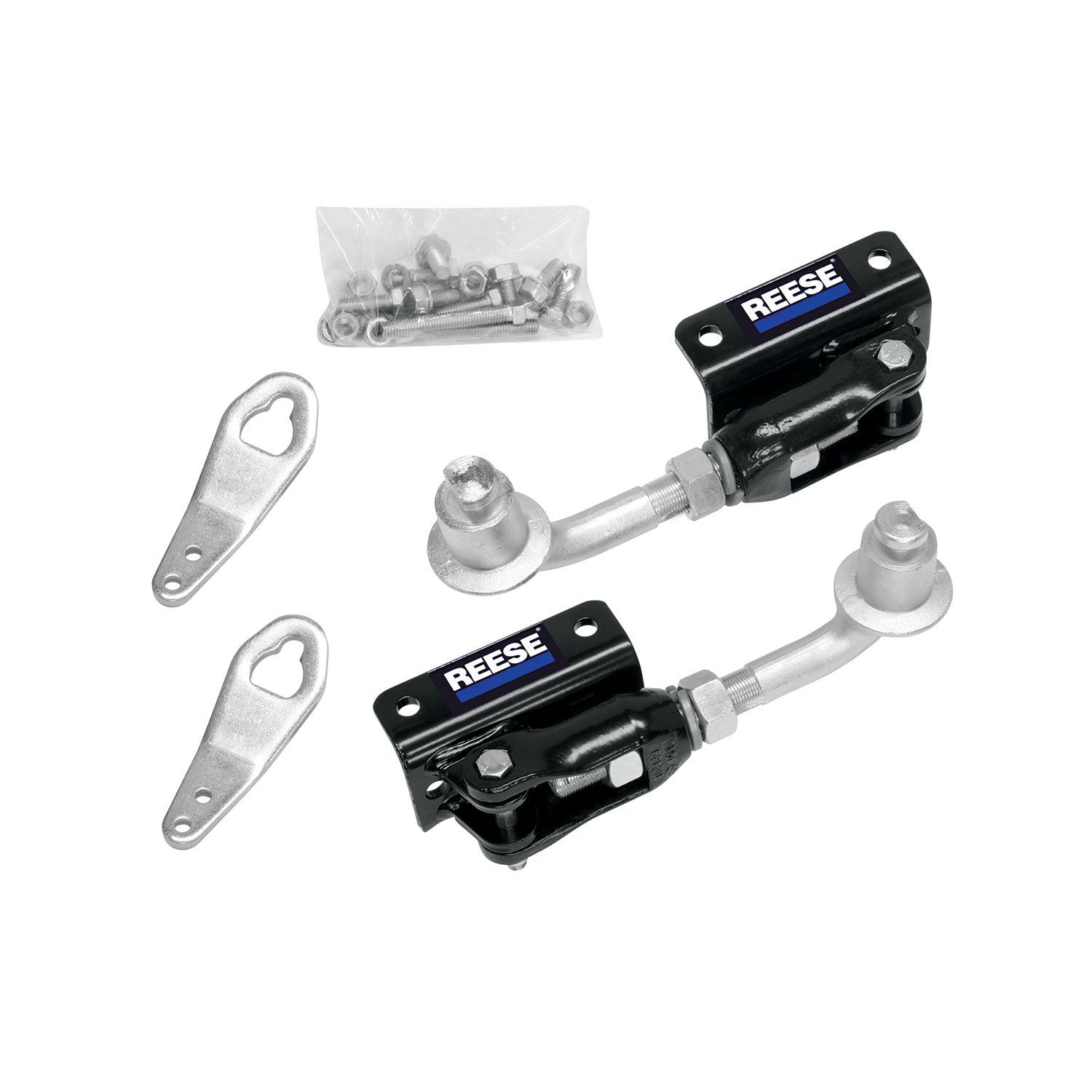

REESE DUAL CAM HIGH PERFORMANCE SWAY CONTOL
This patented product is Reese Products main technique for controlling trailer sway. Unlike Friction Sway Control, this approach works to control sway from the start rather than just resisting sway once it's begun. And it works only when needed. The advantage of the Dual Cam System is its ability to forestall sway in addition to sway resistance. It works to hold down the start of swaying activity while at the same time allowing free and easy vehicle and trailer interaction. Another advantage of the Dual Cam System is that it is installed on the trailer and thereofre does not require adjustment every time the towing vehicle and trailer are hooked up, unless hitch weight or tow vehicle loading are changed.
Integrated cams into the spring bars reduce noise
No U-bolts to interfere with bottle racks or other A-Frame mounted items
Specific attachment reference points provided
Fits most applications
Improved installation times
Years of extensive field testing
Lifetime warranty
Install Instructions:
Hitch Ball Specs:
Part Number 63840
Brand Draw-Tite
Size 2-5/16" x 1-1/4" x 2-3/4"
Towing Capacity 20,000 lbs. GTW
Material Chrome
(Cold forged for superior strength)
Torque torgue to 450 ft. lbs
Ball Hole Diameter 1-1/4"
Warranty Lifetime

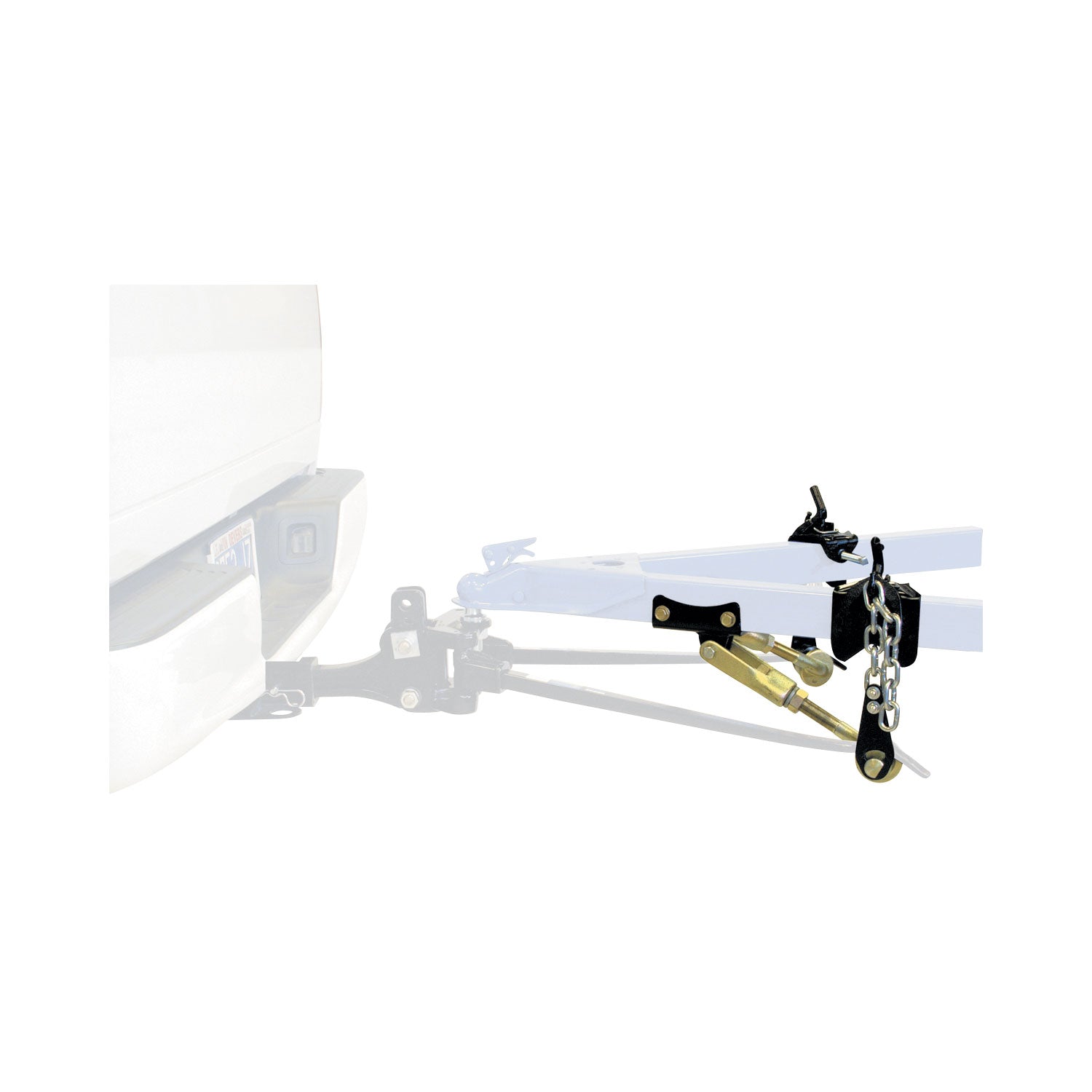

Add a weight distributing system to provide a more level ride, greater steering and brake control. The differences are in construction materials, welding, manufacturing processes and hook-up. Adjustment is simple because of the easy-to-operate snap-up brackets that allow trunnion spring bar tension to be adjusted by changing links in the support chains. Rather than merely supporting the trailer tongue weight (TW), weight-distributing hitches apply leverage between the towing vehicle and trailer causing the TW to be carried by all axles of the tow vehicle and trailer.
WHY CHOOSE REESE WEIGHT DISTRIBUTION SYSTEMS?
Reese has been the leader in weight distributing systems for more than 60 years. Over those years, much has changed within the industry with tow vehicles and their frames made lighter while the trailers have become heavier. The technology utilized yesterday can no longer be used in today’s world. Reese purchases metals from high quality steel mills with history of performance. Metals are routinely audited by third party labs for chemistry. Reese is proud of their quality manufacturing process, using Inducting heating and forming which allows for tapering bars to improve comfort and performance. Bars are produced for high strength and excellent durability and special processes are employed to remove scale and compression-set high stress surfaces. Spring bars are physically tested for spring rate, maximum strength and fatigue life Hardness testing and microscope analysis ensure a quality heat treat result. This is why Reese offer lifetime warranty.
Optional Parts that can be added to this kit:
Bar-Style Friction Sway Control
Optional Parts that can be added to this kit:
Bar-Style Friction Sway Control
