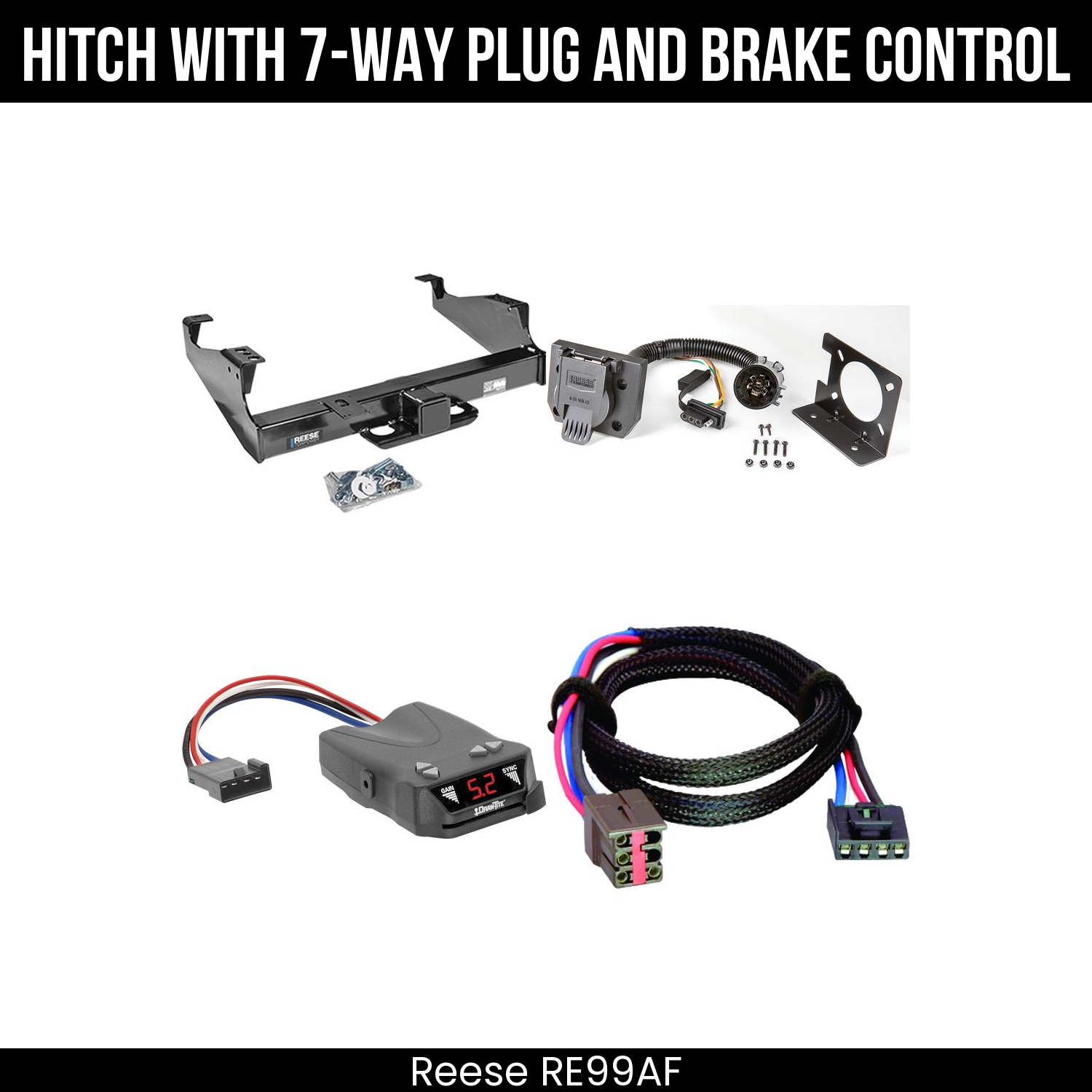

Reese Trailer Hitch + 7-Way Wiring + Draw-Tite Activator IV Brake Control For 99-25 Ford F-350 F-450 F-550 Super Duty Cab & Chassis RE99AF

The Reese Towpower 45716 Class 5 Trailer Hitch has an all-welded, solid construction, ensuring maximum strength and safety. It has a 2.5" receiver opening square tube hitch, with a weight carrying capacity of TW 1200LB / GTW 12000 LB and weight distributing capacity of TW 1700LB / GTW 14000 LB. The hitch features all frame attachments and a Metal Shield® black coating for protection against corrosion. Its design is computer-aided and fatigue stress tested. Suitable for full-size long wheel base trucks and vans, it requires drilling for installation. Dimensions are 34.25" L x 26.25" W x 10" H with a weight of 64 lb, and installation time is approximately 60 minutes. (QTY 1)

Manufactured by: Reese

REESE Towpower custom-fit hitches are built according to manufacturer vehicle weight specifications and model year to ensure a perfect fit and top towing performance Featuring solid all-welded construction for maximum strength and safety, every hitch meets and exceeds industry standards..

Features:

• Large 2-1/2" square receiver tube opening
• Strong, secure heavy-duty side bracket design
• Ideal for high tongue weight applications
• Neat appearance for all frame attachments
• A-Coat base with black powder coat finish
• Rated up to 12,000 lbs. gross towing weight (weight carrying)
• Rated up to 14,000 lbs. gross towing weight with weight distribution
• Solid all-welded construction for maximum strength and safety
• Ensures top towing performance
• Computer-aided design with fatigue stress testing
• Designed to withstand road abuse within specified capacities
• Steel construction
• Square tube cross-tube type
• Class V hitch

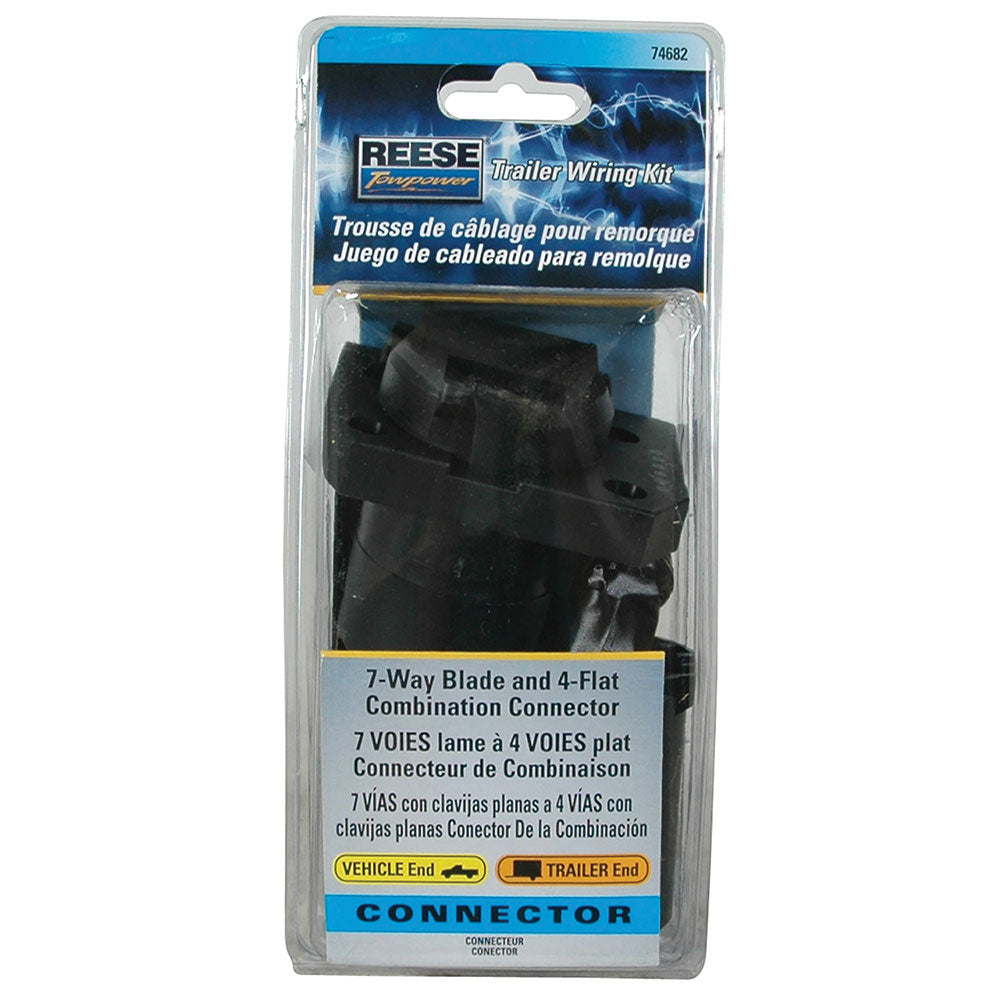

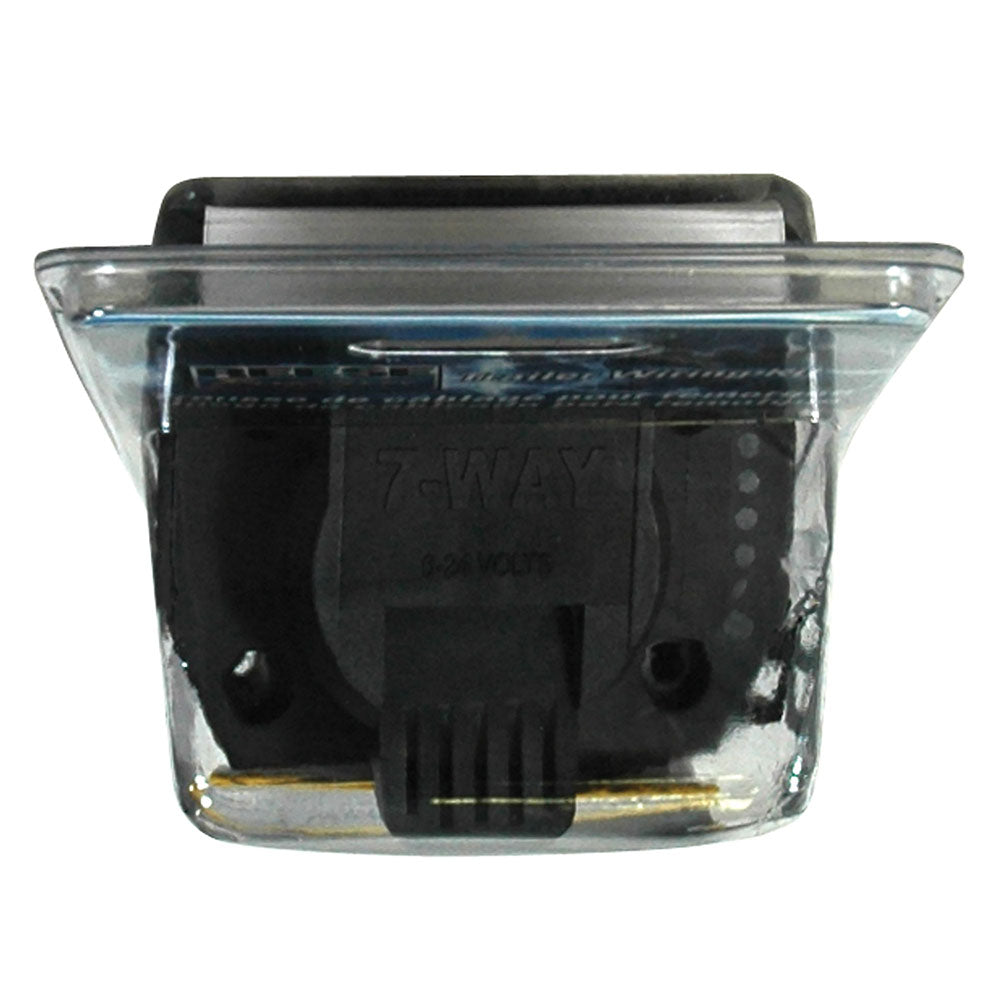

REESE Towpower electrical T- Connector designed to fit a multitude of today's models offering both a 7-Way connector and a 4-Flat connector. The connector is designed to be inserted into the vehicles wiring harness to facilitate a quick and easy plug in installation. Easy to follow, detailed instructions are included with every T-Connector to make the installation process as smooth and trouble-free as possible.  Check the application guide to see if it fits your model vehicle.• For quick connection to 4-Flat or 7-Way trailer connectors• Includes mounting bracket and hardware• Easily adapts to existing vehicle 7-Way plug• Ability to tow trailers with different style trailer connectors• Durable plastic shell• Weather tight seal• Attractive point-of-purchase packaging(QTY 1)

Manufactured by: Reese Towpower

REESE Towpower electrical T- Connector designed to fit a multitude of today's models offering both a 7-Way connector and a 4-Flat connector The connector is designed to be inserted into the vehicles wiring harness to facilitate a quick and easy plug in installation Easy to follow, detailed instructions are included with every T-Connector to make the installation process as smooth and trouble-free as possible.

Check the fitment guide to see if it fits your model vehicle..

Features:

• Quick connection to 4-Flat or 7-Way trailer connectors
• Easily adapts to existing vehicle 7-Way plug
• Allows towing of trailers with different style connectors
• Durable plastic shell
• Weather tight seal
• Attractive point-of-purchase packaging
• Connector type: 7-Way/4-Flat
• Harness type: Male and female
• Terminal quantity: 7
• Wire colors: Brown, green, yellow, white
• Wire quantity: 7
• Amperage rating: 30 A
• Circuit protection: None

Activator IV Electronic Brake Control for 1 to 4 Axle Trailers; Timed ActuatedCompact design with Up-front push buttons for Sync and OutputIlluminated LED output indicator and front display; view at almost any angleSmooth and simple installation, Plug and Play feature allows quick and easy connection (QTY 1)

Manufactured by: Draw-Tite

Activator® IV Time-Delay Trailer Brake Controller for Trailers with 1-4 Axles.

Features:

• 1 to 4 axle trailers
• Digital output indicator
• Small, compact design
• Up-front push buttons for Sync and Output
• Diagnostics for Overload and Open Ground
• Short circuit protected
• Mounts in any direction
• No leveling required
• Smooth and simple installation
• Plug & Play quick and easy connection
• Attractive point-of-purchase display packaging
• Electric brake type
• Solid-state construction
• Circuit breaker protected
• Plastic housing
• No hydraulic connections

TEKONSHA 303500 Trailer Brake Controller Custom Harness, Vehicle & Brake Control Ends (QTY 1)

Manufactured by: Tekonsha

Tekonsha trailer brake controller harnesses exist to make connecting your brake controller to your vehicle as easy as possible These custom two-plug units are specifically designed to be used with any Tekonsha brake controller The Plug & Play feature on the Tekonsha wiring harnesses makes them easy to install.

Simply plug one end of the harness into the back of your desired Tekonsha brake controller and the other end into the port in your vehicle No cutting, splicing, or taping required.Each wiring harness is made up of four copper wires wrapped with a braided nylon thread to insulate the wires and protect them against nicks, punctures, and elevated temperatures The four-pin Plug & Play connectors on each end of the harness are uniquely designed, with one end to fit each vehicle based on make and model year specifications, while the other end plugs easily into any Tekonsha brake controller.Tekonsha trailer brake controller harnesses are custom designed, giving you plenty of wire to reach between where it is connected to the vehicle and where it connects to the brake controller without stretching or straining the wires.

And because Tekonsha is the leader in wiring and electrical, you can relax knowing your connections will be safe and secure, so you can hit the road with confidence! With Tekonsha, Life’s a Journey Stop Often..
